SABER
From the outset, the Saber Series was designed for maximum configuration flexibility, in order to meet our customers’ specific requirements. The primary markets that the Saber serves are military, industrial and special purpose commercial applications.
Being the workhorse of the LCD monitor world, the Saber is built to serve for years—decades, really.
-
Overview
Key Features- Our standard issue ruggedized LCD monitor for military, industrial and special purpose commercial applications
- Rack Mount
- Panel Mount (console)
- Standalone (includes VESA mount)
- Many standard display sizes/resolutions from 6.5″ to 24.0″
- Custom sizes/resolutions available
- Designed and built to meet MIL-DTL-901, MIL-STD-810, MIL-STD-461, MIL-STD-167, and many more
- Optional TEMPEST Level I, Level II and Level III protection
- Sunlight readable, NVIS-compatible displays and various touch screen technologies available
Saber Offers You More
We work with you to configure and build your Saber monitor to meet your precise needs. Furthermore, we offer a wide range of practical options for you to custom design your unit.
What truly separates our Saber Series from the rest of the crowd is its ability to provide you with the following benefits:
- Choose from a selection of over a dozen display sizes/resolutions from 6.5″ to 24″.
- Configuration flexibility with a wide variety of LCDs, video controllers, display overlays, power supplies and enclosures to meet specific requirements.
- Flawless operation in harsh and demanding environments; e.g., extremes of temperature, humidity, shock, vibration.
- Long product life cycle. We can repair and/or replace defective or degraded parts with like or equivalent, compatible electronics or mechanical parts for an extended lifetime.
- Designed, manufactured, tested and serviced in the U.S.A.
- Private labeling with OEMs to maintain your company identity.
- Custom configurations with optional components:
- Built to meet radiated and conducted EMI requirements (e.g., MIL-STD-461, MIL-STD-167)
- Operation in high ambient lighting or direct sunlight
- Compatibility with night vision goggles (MIL-STD-3009)
- Extended warranties
Saber in Depth
The Saber has been engineered for configuration flexibility, allowing customers to choose standard electronics (e.g., display, video controller, power supply), as well as optional electromechanical options such as display overlays (e.g., touch screens, vandal shields, heaters, EMI filters), I/O connections (e.g., video, touch, power) and other enhancements (e.g., optical bonding, film laminations).
Enclosures
The Saber Series’ rugged enclosures are designed for durability, safety, design flexibility and long product life cycle. Constructed from heavy-duty aluminum, they are intended to survive in harsh environments such as factory floors, food processing, medical and military (MIL-STD-810/MIL-DTL-901) applications. They are designed to meet requirements for shock, vibration, EMI/RFI emissions and will accommodate many standard and custom display sizes/resolutions.
Our enclosures are completely Iridite® coated to provide protection from corrosion and improve shielding properties where parts make contact with one another. All external surfaces are finished with a durable black powder coat paint, although unfinished stainless steel, Federal Standard and custom colors are available upon request.
Often, some tailoring to our enclosure designs are necessary to meet a customer’s specific requirements. The requests vary widely from military requirements for environment, shock/vibration, and/or emissions, to unique mounting requirements or specialty cooling, to name just a few.
Available in rack mount, panel mount and standalone/VESA mount configurations.
Connector Panels

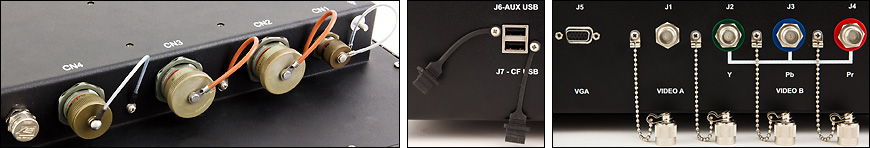

Limited only by the size of the enclosure, a variety of standard or custom interfaces may be provided on the configurable connector panel. Other interfaces are available for field programmability and firmware upgrades, CompactFlash readers, USB ports and more.
Gaskets
General Digital offers a variety of standard and custom gaskets to augment the performance of the Saber:
- Watertight (NEMA 4/6) gaskets are installed between the LCD (or overlay) and the front bezel to prevent liquids from entering the enclosure through the display opening.
- Dust gaskets are often supplied for monitors that do not require a liquid-tight seal between the display and/or overlay and the bezel, or for systems that use a touch technology that are only compatible with certain gasket types.
- EMI/RFI gaskets reduce radiated and conducted emissions of the monitor.
- Desiccating gaskets can be used to prevent moisture/condensation from forming between the LCD and the overlay when exposed to high humidity.
Power
All Saber models are available with an integrated or externally attached power supply. For applications requiring a thinner enclosure or a unique power source, we optionally offer a separate external supply, DC input and/or DC-DC converters with a wider input range.
Video and Controls
General Digital offers a wide range of video controllers, allowing you to fine tune the display features and support to your specific video requirements.
We can reprogram the video controller firmware/BIOS to support a variety of video timings and specialty needs, such as STANAG 3350 A, B and C, RS-343 and RS-170. Most of our video controllers will also support interlaced and non-interlaced analog video (separate, composite and Sync-On-Green), and live video signals such as NTSC, PAL or SECAM.
Other input signals we support include ARGB (VGA) to DVI, HDMI, HD-SDI, SD-SDI, DisplayPort, 4K UHD and more.
Please consult a Sales Engineer to optimize your video controller selection.
On-Screen Display (OSD) Controls
The Saber monitor can be configured with a variety of standard or custom user controls, most often in the form of membrane or silicone keypads. Choices of LED and NVIS backlighting are available, as well as configuration with electronics that allow backlight dimming.
Much like your home TV, the On-Screen Display controls allow the user to adjust important display parameters, such as input signal, brightness, contrast, color temperature, sharpness, phase, scaling (aspect ratio), language and dozens of others.
Display Brightness and Night Vision Enhancements
General Digital can integrate virtually any LCD display size/resolution, from almost any panel manufacturer (OEM), into our enclosures. To assist in selecting the right panel for your application requirements, we have provided a list of commonly used or recommended panels for standard/low luminance, high brightness, sunlight readable and NVIS compatible needs.
New display models are constantly being introduced to the market by the LCD manufacturers, making it extremely difficult for us to maintain a comprehensive list. For this reason, we encourage you to speak with a Sales Engineer to share your price and performance objectives, so we can assist you in making the best display selection.
Standard Displays
General Digital has provided a sample listing of some common transmissive displays that are not sunlight readable. Typically, these displays are suitable for applications that are not going to require specialty functionality, such as sunlight readability or NVIS compatibility, and for customers with cost-sensitive budgets.

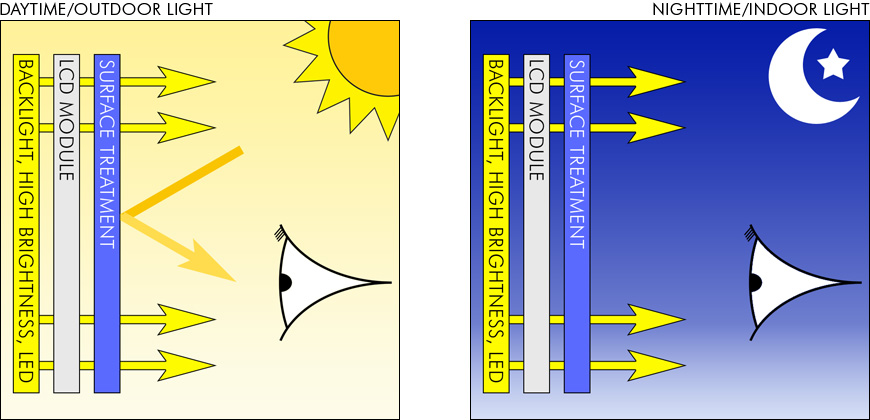

LCD backlight produces sufficient luminance for use in office, shaded and low ambient/darkness light levels. However, luminance is insufficient to overcome reflected light for use in direct sunlight.Transmissive-Enhanced View Displays
This type of technology boosts the efficiency of the backlight’s light utilization and minimizes surface reflection of ambient light. It is a transmissive LCD module that produces high contrast images, even in bright outdoor light and direct sunlight. These displays feature a wider color reproduction range than reflective LCDs. Featuring an LED backlight, these displays consume very little power and produce very little heat, making them ideal for integration into fully sealed enclosures, which are devoid of ventilation holes and cooling fans to dissipate heat. They also provide the additional benefit of a wide operating/storage temperature (as great as -30°–85° C), so that they can endure exposure to greater internal ambient temperatures.As a design note, we have found that these panels work best when coupled with an overlay that has an antireflective (AR) coating. Overlays that inhibit transmissivity (e.g., resistive touch screen) or have antiglare (AG) coatings will significantly reduce the panel’s performance in high ambient lighting conditions. Since transmissive displays produce greater brightness from their LED backlights than traditional transflective displays, they are regarded as a better outdoor solution, as they can generate high contrast in total darkness, in direct sunlight or on a cloudy/hazy afternoon.
T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.
GenFlective™/Transflective Displays
This type of panel incorporates a highly reflective backlight that reflects the ambient lighting back out of the display to enhance its native brightness produced by its active backlight. Like the Transmissive-Enhanced View Displays, GenFlective panels work best when coupled with an AR-coated overlay. They are least effective with overlays that retard the light transmission (e.g., resistive touch sensors) or have a matte finish.
T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.
Sunlight Readable/NVIS Compatible Displays

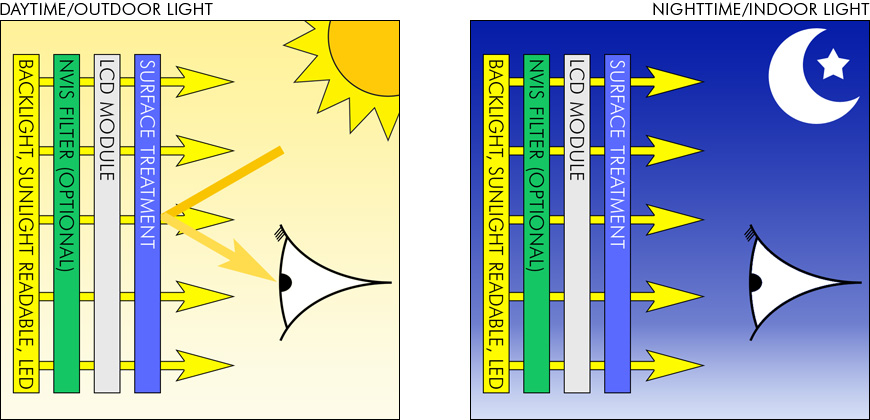

These displays feature a value-add backlight, typically made from high efficiency LEDs. These displays produce significant active luminance. Often, the peak luminance is limited by internal ambient temperature constraints or must be connected to an intelligent backlight controller and thermal sensor that will automatically reduce brightness/power to avoid over-temperature conditions or thermal shutdown. The high luminance output makes them ideal for use with a wide variety of overlays such as touch sensors, EMI filters, heaters, etc.
Sunlight readable displays use a General Digital-enhanced, highly efficient, super bright/sunlight readable LED backlight to provide maximum functional brightness. The addition of surface treatments such as antireflective coatings and optical bonding reduce surface reflections and increase contrast so displays can be used in direct sunlight.
If our stock offering does not suit your needs in terms of size, fit or function, please contact a Sales Engineer and we will work with you to configure a system to your specifications. Customers can also request that we integrate one of our many LED-based sunlight readable, NVIS or sunlight readable/NVIS enhanced displays into their product. These solutions provide many advantages, such as increased longevity, improved durability, higher brightness, lower power consumption and/or NVIS compatibility.
Options & Accessories
A myriad of display enhancements and services are available, such as:
- Antireflective coatings/antiglare etching (PDF)
- Night Vision Goggle-compatible displays
- Sunlight readable displays
- Optical bonding
- Film laminations
- Touch screens
- EMI/RFI filters
- Display heaters
- Vandal shields
- Custom controls
- Private labeling
- Extended warranties
- Keyboards: desktop, panel mount, rack mount and specialized
- Power supplies, cables and more
- Programmable backlight/thermal controllers for optimal brightness/temperature conditions
Please consult a Sales Engineer to discuss your specific needs or ideas.
Configuration Control for Extended Life Cycle
We at General Digital are completely responsible for the design and construction of our products, allowing us to maintain nearly total control of their future. To that end, we gladly offer our engineering services to customers who require special customization of our devices to meet their commercial, industrial, marine or military requirements.
Our experience supporting Department of Defense programs has taught us the value of designing products with foresight so that they can be manufactured, serviced and upgraded for many years.
Though the market introduces new innovations and product upgrades at an alarming rate, our product management team knows the importance of proactive customer notification. Thus, we can offer product adaptation with similar or equivalent performance before designs become obsolete, thereby extending the product life cycle.
Please consult a Sales Engineer for additional details.
- Our standard issue ruggedized LCD monitor for military, industrial and special purpose commercial applications
-
Design Your Display
To assist in determining your display needs, download our Product Samplers for the Saber PanelMount, Saber RackMount, and Saber Standalone. It will give you some ideas of what is viable, as it lists the specifications for several recently quoted or purchased configurations. Or explore our online Product Sampler to browse some popular configurations.
Also helpful in perusing the Product Sampler is the table below, which you can use to familiarize yourself with the structure of the Saber Series model number.
Prefix Product Family Size/Resolution Display Video Controller Keyboard Enclosure Overlay Power Supply Custom Config
pp GD
CMG
PA
CMP
RM
CMRaab ccc(c) ddd ee ff gg hijj zzz Note the following options for the Prefix (pp) category: The Family category defines the base configuration, where... s = Sunlight Readable GD & CMG = Saber Standalone d = Daylight Readable PA & CMP = Saber PanelMount n = NVIS Compatible RM & CMR = Saber RackMount Can’t find a perfect fit? Use the form below to request a display tailored to your requirements. A Sales Engineer will contact you shortly to discuss your project.
-
Downloads
General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.
Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.
User Manuals and Calibration & Setup Guides are available for customers only.
Product Drivers are available for customers only.
If you have lost the passwords provided with your product, please contact us right away.
-
Gallery
The photos below represent a small sampling of General Digital’s standard and custom Saber LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.
Saber RackMount Photos
Saber RackMount 24″
Saber RackMount COTS 20″
Saber RackMount 901E 19″
Saber RackMount Solar NVIS 19″

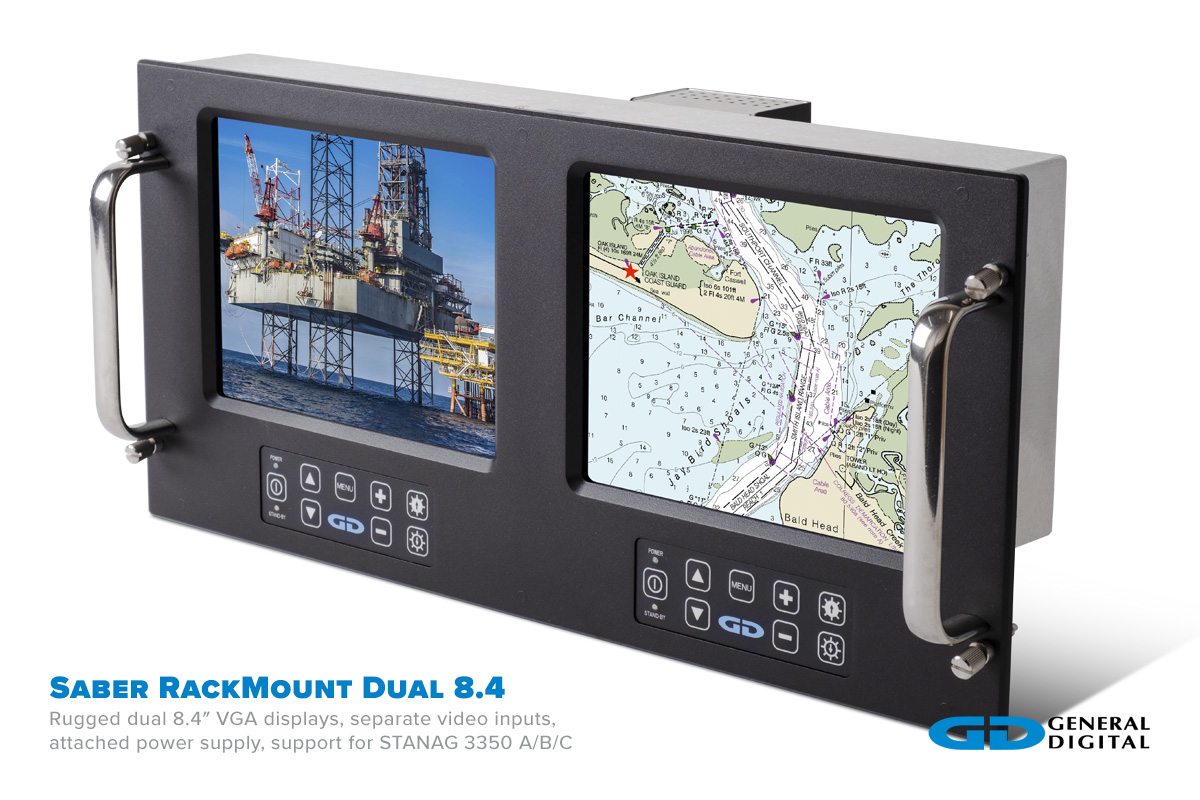

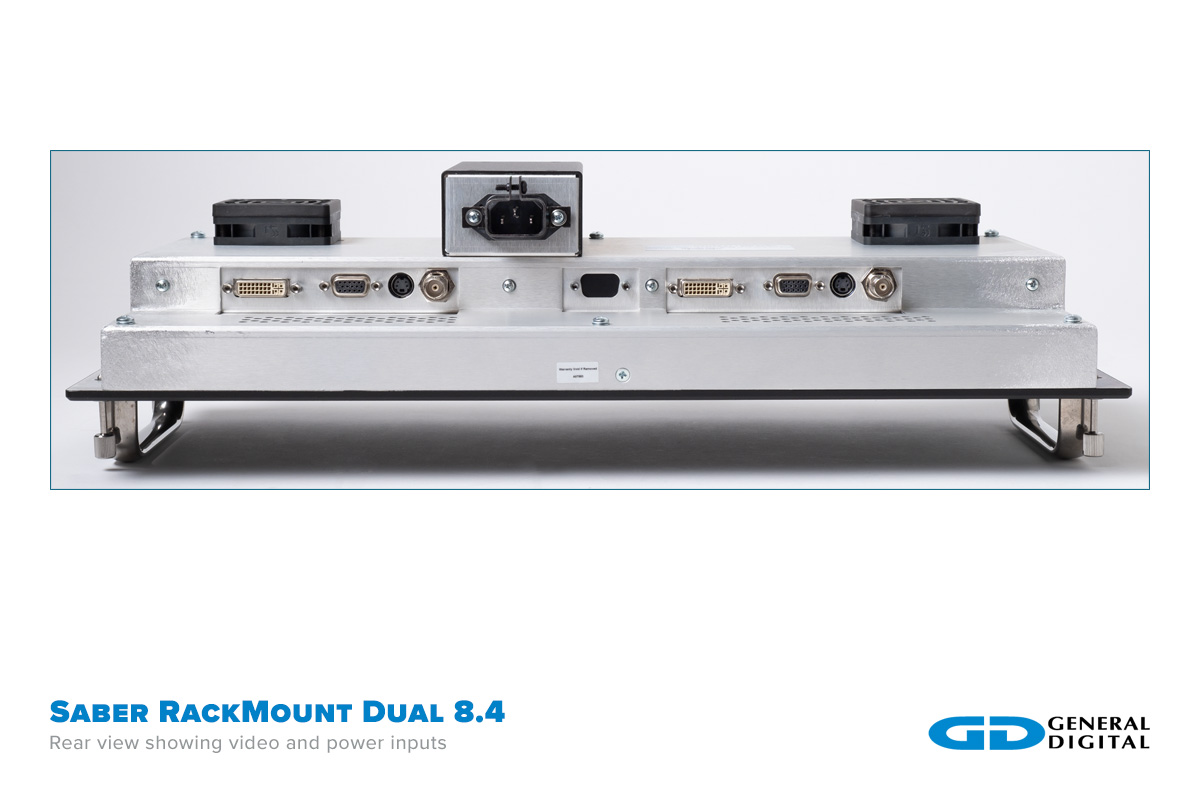

Saber RackMount Dual 8.4″
