TITAN

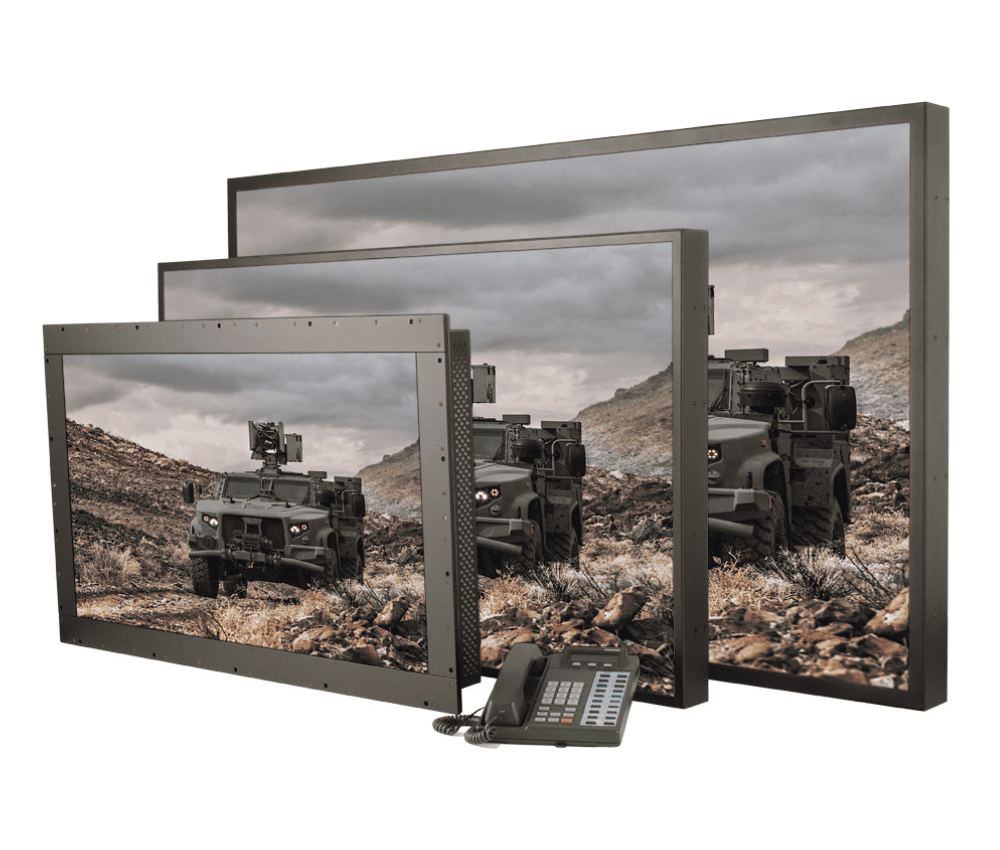

photo of Titan monitor familyThe Titan Series and Titan Lite Series of large format LCD monitors was introduced to satisfy the increasing demands for information density: the need to include more graphical and contextual information in a given viewing space.

The standard Titan is designed to be in compliance with many industrial and military standards, including TEMPEST protection (optional), while the Titan Lite accommodates most commercial applications.

  • Overview

    Graphic for Interactive Product SamplerKey Features

    • Military-, industrial- and commercial-grade large format LCD monitors
      • Panel mount (console)
      • Standalone (includes VESA mount)
    • 30″ to 65″ display sizes (and larger)
      • Resolutions to 1920 x 1200 pixels (High Definition)
    • RGB analog (VGA), DVI, HDMI, DisplayPort, Composite, Sync-On-Green video signals and more
    • Titan primary markets served are military, industrial and special purpose commercial applications
    • Titan Lite is ideal for digital signage applications such as kiosks, electronic billboards, retail television, corporate communications, digital posters and other targeted messaging
    Titan Offers You More

    We work with you to configure and build your Titan monitor to meet your precise needs. Furthermore, we offer a wide range of practical options for you to custom design your unit.

    What truly separates our Titan Series from the rest of the crowd is its ability to provide you with the following benefits:

    • Titan offers several display sizes/resolutions from 30″ to 65″.
    • Configuration flexibility with a wide variety of LCDs, video controllers, display overlays, pointing devices, power supplies, slides and enclosures to meet specific requirements.
    • Flawless operation in harsh and demanding environments; e.g., extreme of temperature, humidity, shock, vibration.
    • Long product life cycle. We can repair and/or replace defective or degraded parts with like or equivalent, compatible electronics or mechanical parts for an extended lifetime.
    • Designed, manufactured, tested and serviced in the U.S.A.
    • Custom configurations with optional components:
    Titan In Depth
    Panel

    The Titan and Titan Lite have been engineered for configuration flexibility, allowing customers to choose the standard electronics (e.g., display, video controller, power supply), as well as the optional electromechanical options such as display overlays (e.g., touch screens, vandal shields, heaters, EMI filters), I/O connections (e.g., video, touch, power) and other display enhancements (e.g., optical bonding, film laminations).

    Often, some tailoring of our enclosure designs are necessary to meet a customer’s specific requirements. The requests vary widely from military requirements for environment, shock/vibration, and/or emissions, to unique mounting requirements, specialty cooling or custom colors. Rest assured we are well equipped to handle special requests.


    Enclosures

    The Titan Series’ rugged enclosures are designed for durability, safety, design flexibility and long product life cycle. They are constructed from heavy-duty aluminum and intended to survive in harsh environments such as factory floors, food processing, medical and military (MIL-STD-810F/MIL-DTL-901E) applications.

    Our enclosures are completely coated with Iridite® to provide protection from corrosion and improve shielding properties where parts make contact with one another. All external surfaces are finished with a durable black powder coat paint, although custom colors are available upon request.Panel1


    Mounting Options

    Titan’s ruggedized enclosures are designed to be used either as portable displays that can be transported from one location to another, or be mounted using the supplied mounting holes located on the rear and/or sides of the enclosures. Each Standalone enclosure is configured with a set of VESA standard mounting holes on the rear, allowing for the attachment of numerous desktop pedestals (standard or custom), cradles, articulating arms and mounting yokes. Speak with one of our Sales Engineers for a no-obligation consultation to determine the best mounting option for your application.

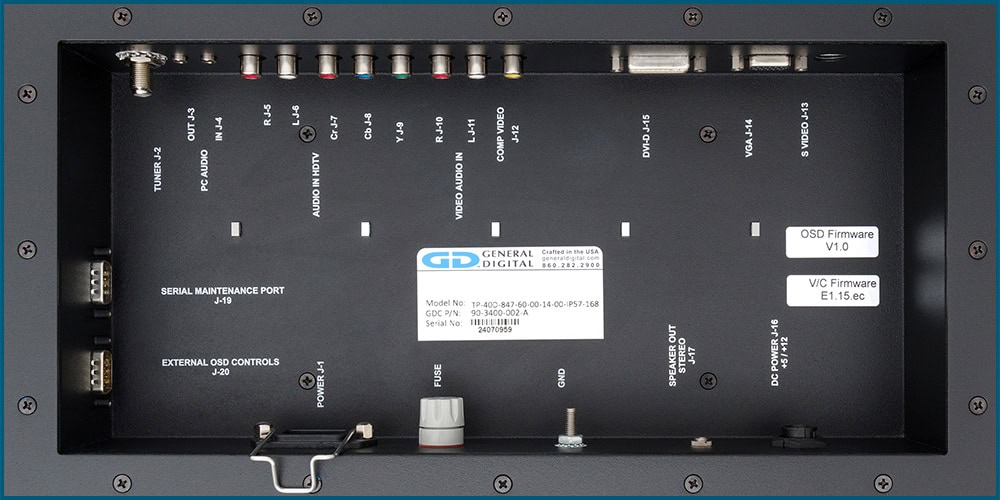

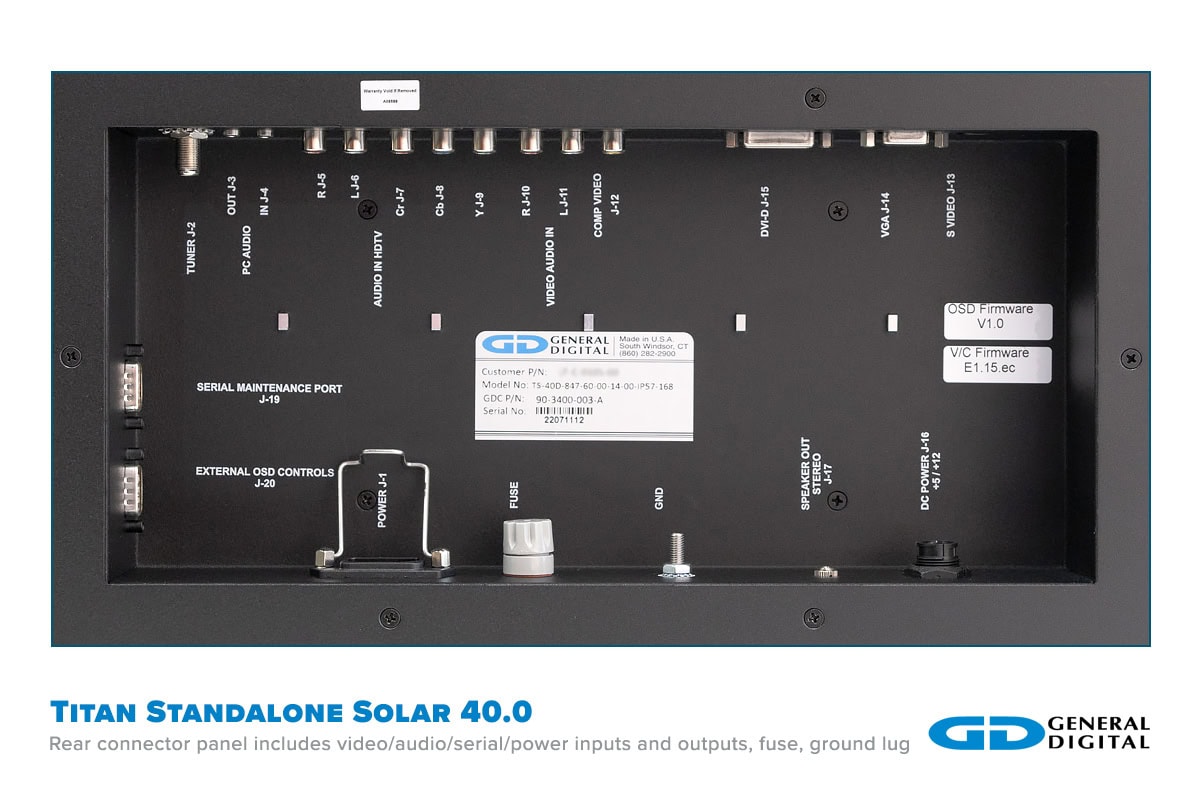

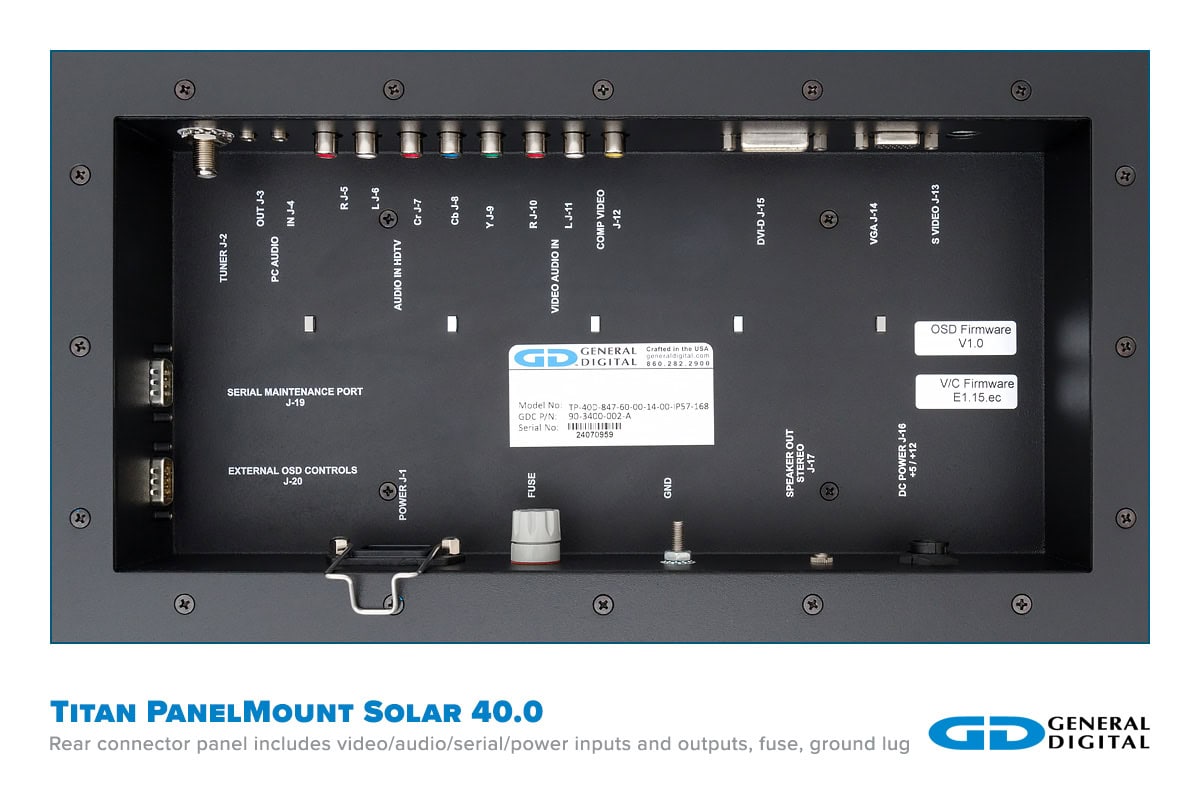

    Connector Panels

    Panel2

    All of the interfaces (video, serial, power, etc.) utilize shielded locking connectors that are (typically) located on the rear of the enclosure. Other interfaces are available for field programmability and firmware upgrades, CompactFlash readers, USB ports and more.


    Gaskets

    General Digital offers a variety of standard and custom gaskets to augment the performance of the Titan and Titan Lite:

    • Watertight (NEMA 4/6) gaskets are installed between the LCD (or overlay) and the front bezel to prevent liquids from entering the enclosure through the display opening.
    • Dust gaskets are often supplied for monitors that do not require a liquid-tight seal between the display and/or overlay and the bezel, or for systems that use a touch technology that are only compatible with certain gasket types.
    • EMI/RFI gaskets reduce radiated and conducted emissions of the monitor.
    • Desiccating gaskets can be used to prevent moisture/condensation from forming between the LCD and the overlay when exposed to high humidity.

    Sided Gaskets


    Power

    Panel3

    Available with an integrated (or externally attached) power supply. For applications requiring a thinner enclosure or a unique power source, we optionally offer a separate external supply, DC input and/or DC-DC converters with a wider input range.


    Video and Controls

    Pcb Close Up

    General Digital offers a wide range of video controllers, allowing you to fine tune the display features and support to your specific video requirements.

    We can reprogram the video controller firmware/BIOS to support a variety of video timings and specialty needs, such as STANAG 3350 A, B and C, RS-343 and RS-170. Most of our video controllers will also support interlaced and non-interlaced analog video (separate, composite and Sync-On-Green), and live video signals such as NTSC, PAL or SECAM.

    Other input signals we support include ARGB (VGA) to DVI, HDMI, HD-SDI, SD-SDI, DisplayPort, 4K UHD and more.

    Please consult a Sales Engineer to optimize your video controller selection.

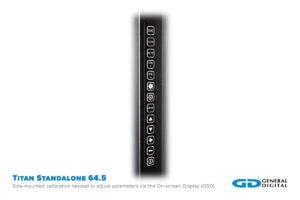

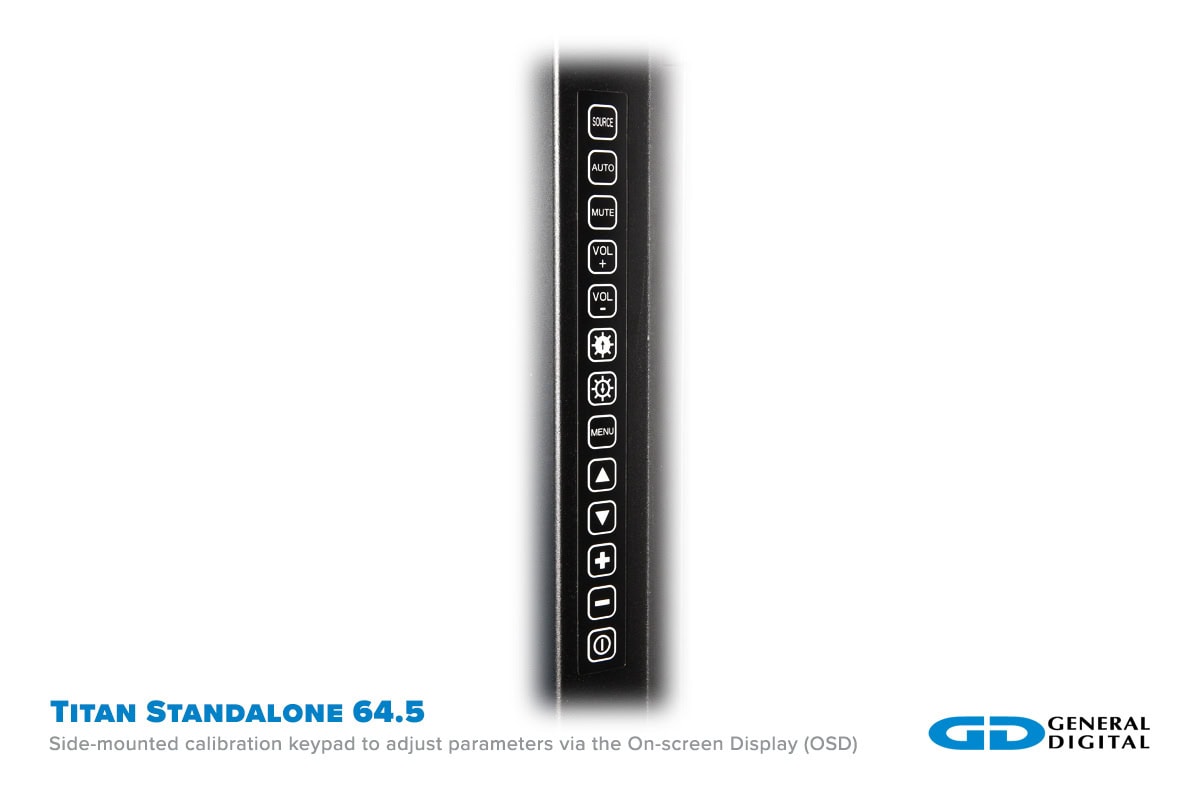

    On-Screen Display (OSD) Controls

    The Saber monitor can be configured with a variety of standard or custom user controls, most often in the form of membrane or silicone keypads. Choices of LED and NVIS backlighting are available, as well as configuration with electronics that allow backlight dimming.

    Much like your home TV, the On-Screen Display controls allow the user to adjust important display parameters, such as input signal, brightness, contrast, color temperature, sharpness, phase, scaling (aspect ratio), language and dozens of others.

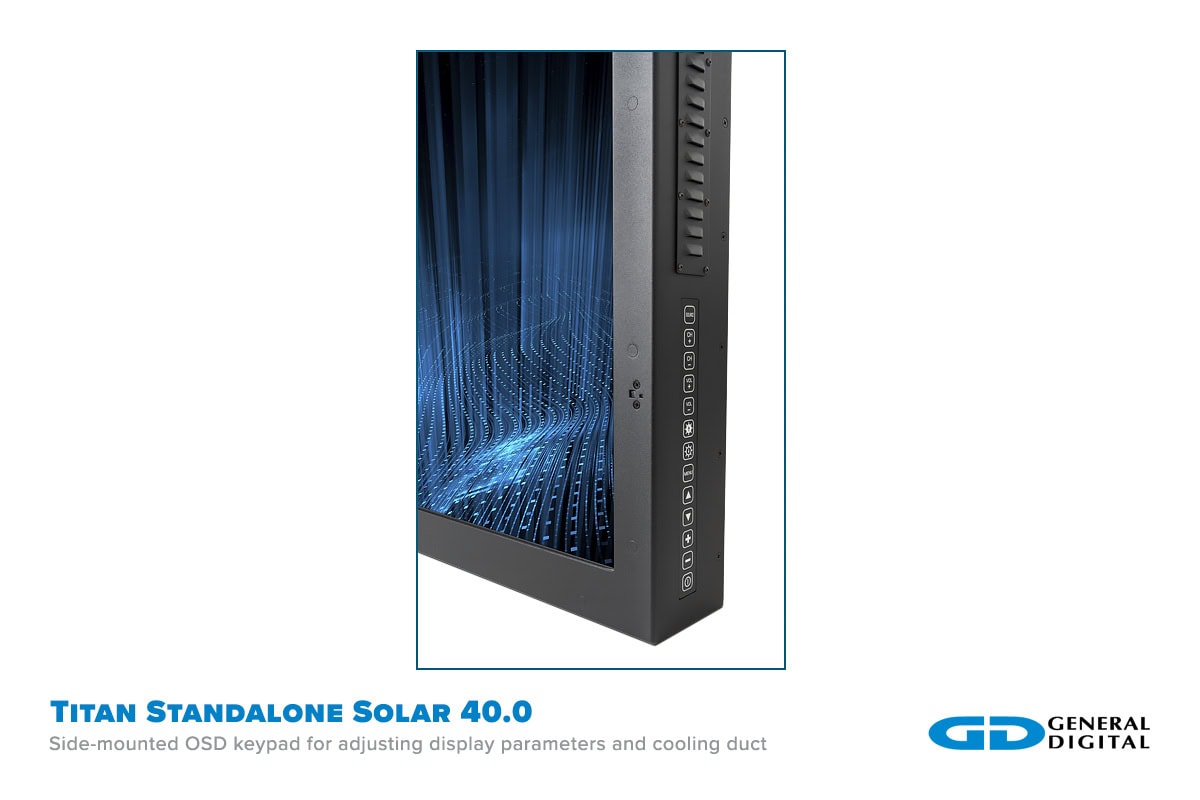

    Keypad


    Display Brightness and Night Vision Enhancements

    Display


    General Digital can integrate virtually any LCD display size/resolution, from almost any panel manufacturer (OEM), into our enclosures. To assist in selecting the right panel for your application requirements, we have provided a list of commonly used or recommended panels for standard/low luminance, high brightness, sunlight readable and NVIS compatible needs.

    New display models are constantly being introduced to the market by the LCD manufacturers, making it extremely difficult for us to maintain a comprehensive list. For this reason, we encourage you to speak with a Sales Engineer to share your price and performance objectives, so we can assist you in making the best display selection.

    Standard Displays
    General Digital has provided a sample listing of some common transmissive displays that are not sunlight readable. Typically, these displays are suitable for applications that are not going to require specialty functionality, such as sunlight readability or NVIS compatibility, and for customers with cost-sensitive budgets.

    Standard Brightness Display

    LCD backlight produces sufficient luminance for use in office, shaded and low ambient/darkness light levels. However, luminance is insufficient to overcome reflected light for use in direct sunlight.

    Transmissive-Enhanced View Displays
    This type of technology boosts the efficiency of the backlight’s light utilization and minimizes surface reflection of ambient light. It is a transmissive LCD module that produces high contrast images, even in bright outdoor light and direct sunlight. These displays feature a wider color reproduction range than reflective LCDs. Featuring an LED backlight, these displays consume very little power and produce very little heat, making them ideal for integration into fully sealed enclosures, which are devoid of ventilation holes and cooling fans to dissipate heat. They also provide the additional benefit of a wide operating/storage temperature (as great as -30°–85° C), so that they can endure exposure to greater internal ambient temperatures.

    As a design note, we have found that these panels work best when coupled with an overlay that has an antireflective (AR) coating. Overlays that inhibit transmissivity (e.g., resistive touch screen) or have antiglare (AG) coatings will significantly reduce the panel’s performance in high ambient lighting conditions. Since transmissive displays produce greater brightness from their LED backlights than traditional transflective displays, they are regarded as a better outdoor solution, as they can generate high contrast in total darkness, in direct sunlight or on a cloudy/hazy afternoon.

    Standard Brightness Display1

    T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.

    GenFlective™/Transflective Displays
    This type of panel incorporates a highly reflective backlight that reflects the ambient lighting back out of the display to enhance its native brightness produced by its active backlight. Like the Transmissive-Enhanced View Displays, GenFlective panels work best when coupled with an AR-coated overlay. They are least effective with overlays that retard the light transmission (e.g., resistive touch sensors) or have a matte finish.

    Standard Brightness Display2

    T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.

    Sunlight Readable/NVIS Compatible Displays
    These displays feature a value-add backlight, typically made from high efficiency LEDs. These displays produce significant active luminance. Often, the peak luminance is limited by internal ambient temperature constraints or must be connected to an intelligent backlight controller and thermal sensor that will automatically reduce brightness/power to avoid over-temperature conditions or thermal shutdown. The high luminance output makes them ideal for use with a wide variety of overlays such as touch sensors, EMI filters, heaters, etc.

    Standard Brightness Display3

    Sunlight readable displays use a General Digital-enhanced, highly efficient, super bright/sunlight readable LED backlight to provide maximum functional brightness. The addition of surface treatments such as antireflective coatings and optical bonding reduce surface reflections and increase contrast so displays can be used in direct sunlight.

    If our stock offering does not suit your needs in terms of size, fit or function, please contact a Sales Engineer and we will work with you to configure a system to your specifications. Customers can also request that we integrate one of our many LED-based sunlight readableNVIS or sunlight readable/NVIS enhanced displays into their product. These solutions provide many advantages, such as increased longevity, improved durability, higher brightness, lower power consumption and/or NVIS compatibility.

    Options & Accessories

    A myriad of display enhancements and services are available, such as:

    Optional film laminations increase contrast and decrease glare, reflections

    Please consult a Sales Engineer to discuss your specific needs or ideas.

    Configuration Control for Extended Life Cycle
    General Digital's configuration control ensures an extended life cycle for your LCD monitor

    We at General Digital are completely responsible for the design and construction of our products, allowing us to maintain nearly total control of their future. To that end, we gladly offer our engineering services to customers who require special customization of our devices to meet their commercial, industrial, marine or military requirements.

    Our experience supporting Department of Defense programs has taught us the value of designing products with foresight so that they can be manufactured, serviced and upgraded for many years.

    Though the market introduces new innovations and product upgrades at an alarming rate, our product management team knows the importance of proactive customer notification. Thus, we can offer product adaptation with similar or equivalent performance before designs become obsolete, thereby extending the product life cycle.

    Please consult a Sales Engineer for additional details.

  • Design Your Display

    Download the Titan Product SamplerTo assist in determining your display needs, download our Titan Series Product Sampler. It will give you some ideas of what is viable, as it lists the specifications for several recently quoted or purchased configurations. Or explore our online Product Sampler to browse some popular configurations.

    Also helpful in perusing the Product Sampler is the table below, which you can use to familiarize yourself with the structure of the Titan Series model number.

    PrefixFamilySize/ResolutionDisplayVideo ControllerKeyboardEnclosureOverlayPower SupplyCustom
    ppTS
    TP
    TLS
    TLP
    aabccc(c)dddeeffgghijjzzz
    Note the following options for the Prefix (pp) category:The Family category defines the base configuration, where...
    s = Sunlight ReadableTS = Titan Standalone
    d = Daylight ReadableTP = Titan PanelMount
    n = NVIS CompatibleTLS = Titan Lite Standalone
    TLP = Titan Lite PanelMount

    Can’t find a perfect fit? Use the form below to request a display tailored to your requirements. A Sales Engineer will contact you shortly to discuss your project.

  • Downloads

    General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.


    Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

    User Manuals and Calibration & Setup Guides are available for customers only.

    Product Drivers are available for customers only.

    If you have lost the passwords provided with your product, please contact us right away.


    Titan PanelMount Documentation
    Product Sampler

    Titan Product Sampler



    Data Sheet

    Titan/Titan Lite Series 40″–65″ Monitors Data Sheet



    Control Drawings

    Titan PanelMount 39.5 Control Drawing



    Specifications subject to change without notice or obligation.

  • Gallery

    The photos below represent a small sampling of General Digital’s standard and custom Titan LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options.Click the thumbnails to view full-size photos.

    Titan Standalone Photos

    Titan Standalone 65

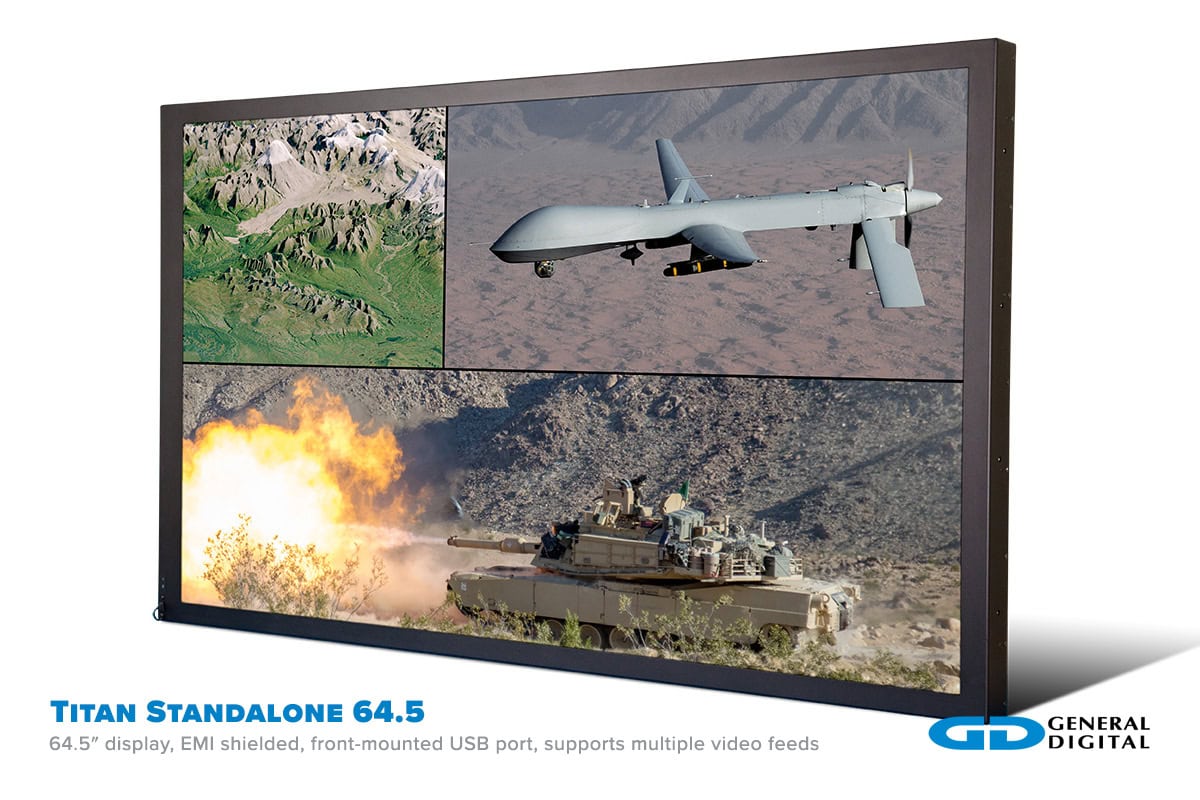

    Photo of Titan Standalone 65 - Rugged large format 64.5" LCD monitor, meets MIL-DTL-901E for high impact shock, MIL-STD-461 for EMI shielding, and more

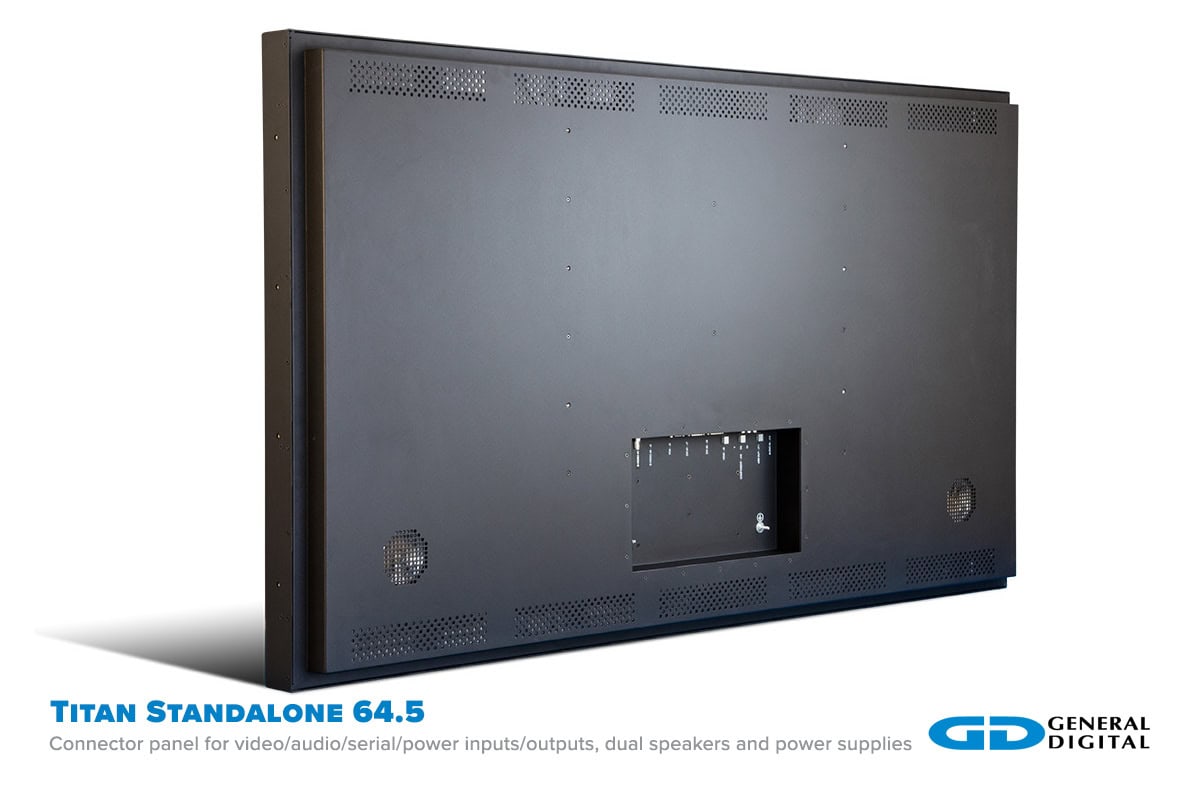

    Photo of Titan Standalone 65 - Rear view showing extensive connector panel and dual built-in speakers

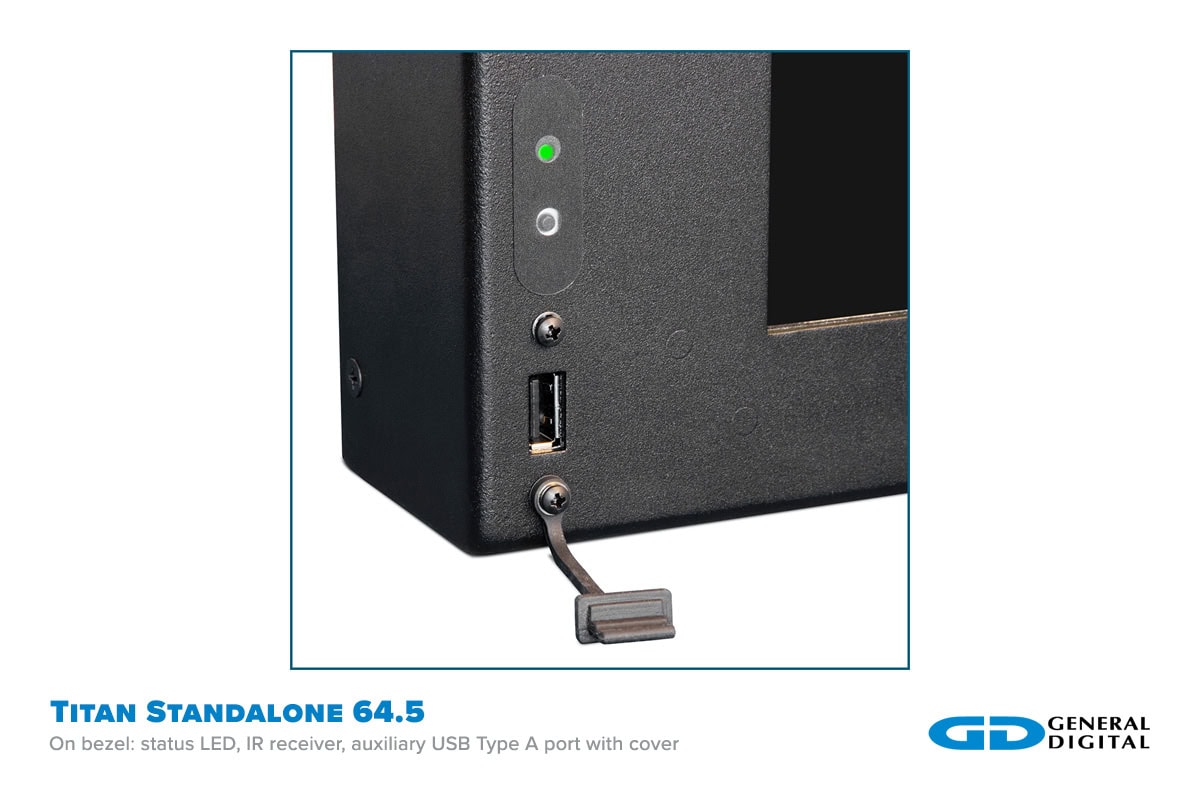

    Photo of Titan Standalone 65 - Close-up of front-accessible USB port with dust cover

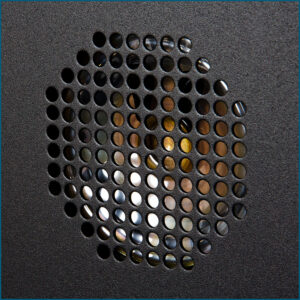

    Photo of Titan Standalone 65 - Close-up of one of the rear-mounted speakers



    Titan Standalone 65

    Photo of Titan Lite Standalone 65 - Commercial- and light industrial-grade large format 65.0" LCD monitor
    Photo of Titan Lite Standalone 65 - Rear view showing connector panel, cooling fans and mounting holes



    Titan Standalone 55 with 4K Display

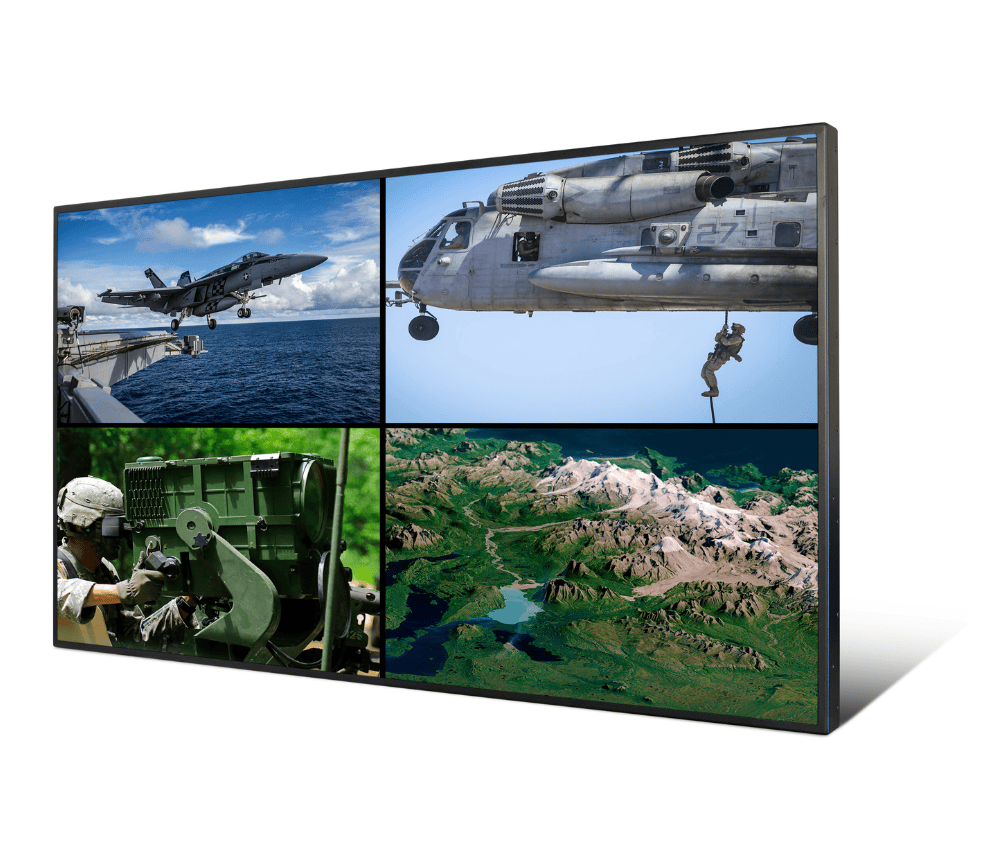

    Titan Standalone 55" - 4K resolution, EMI shielding
    Titan Standalone 55" - Multiple video inputs and mil type power connector



    Titan Standalone 46 with Touch Screen

    Photo of Titan Lite Standalone 46 - Commercial- and light industrial-grade large format 46.0" LCD monitor with touch screen
    Photo of Titan Lite Standalone 46 - Easily configured for commercial and consumer purposes



    Titan Lite Standalone 42 with Thin Bezel

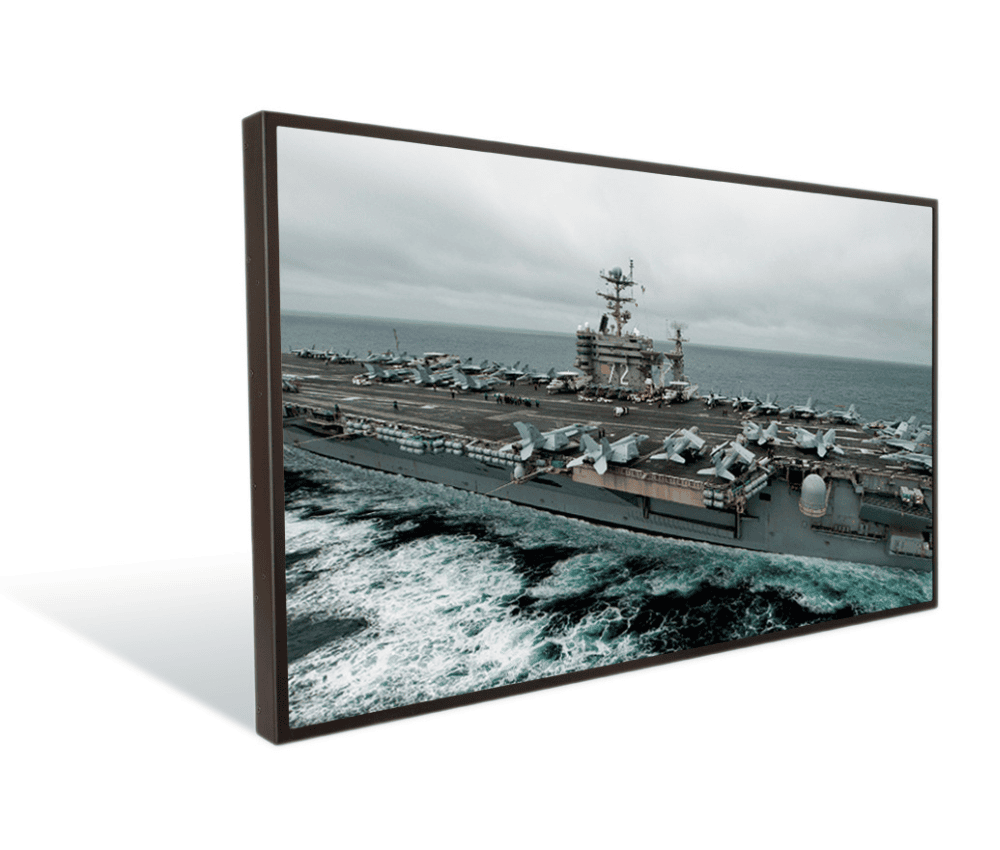

    Titan Standalone Solar 42.0 - Daylight readable 42-inch display, 4K resolution, optically bonded
    Titan Standalone Solar 42.0 - Multiple video inputs and rear-mounted OSD keypad



    Titan Standalone 39

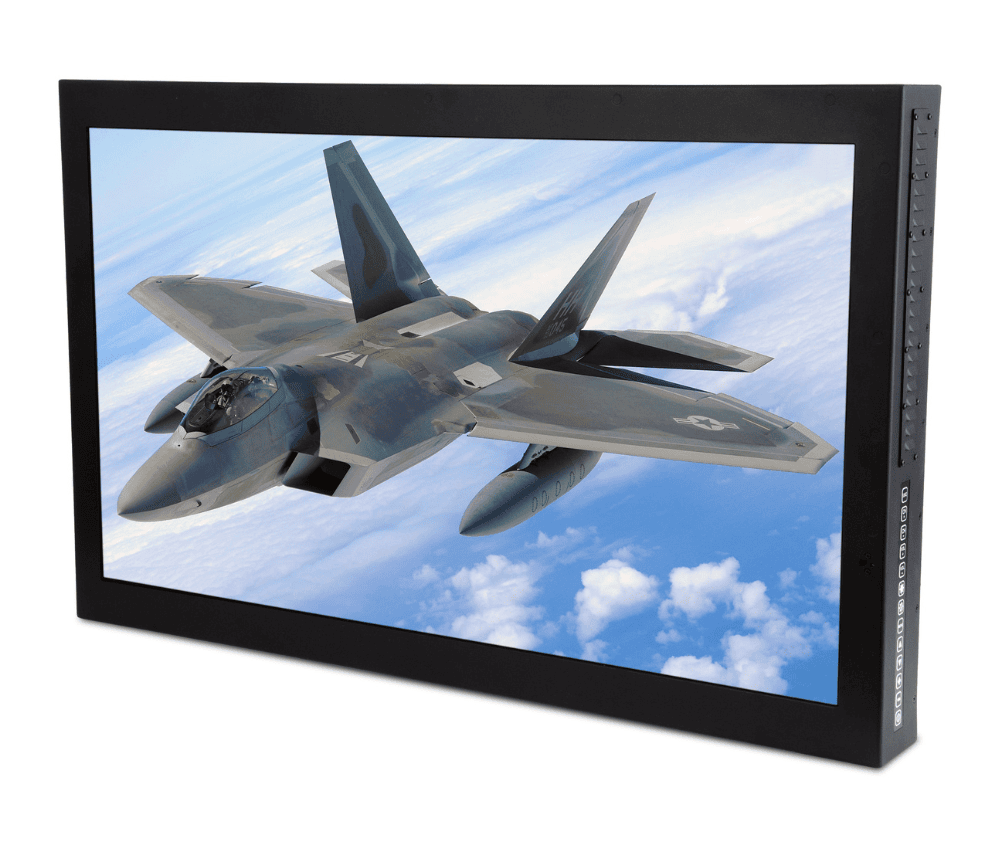

    Photo of Titan Lite Standalone 39 - Commercial- and light industrial-grade large format 39.0" LCD monitor with side-mounted membrane keypad and cooling vents
    Photo of Titan Standalone 39 - Rear view showing mounting holes and cutout for connectors
    Photo of Titan Standalone 39 - Close-up of video and interface connectors



    Titan Standalone 30 with Touch Screen

    Photo of Titan Standalone 30 - Commercial- and light industrial-grade 30.0" LCD monitor with Surface Acoustic Wave (SAW) touch screen
    Photo of Titan Standalone 30 - Close-up of front-mounted keypad
    Photo of Titan Standalone 30 - Rear view showing cooling vents and cutout for connector panel
    Photo of Titan Standalone 30 - Connector panel and power socket
    Titan PanelMount Photos

    Titan PanelMount 52.0 Rugged Display

    Photo of Titan PanelMount 52.0



    Titan PanelMount 39.0 with Multi-Touch

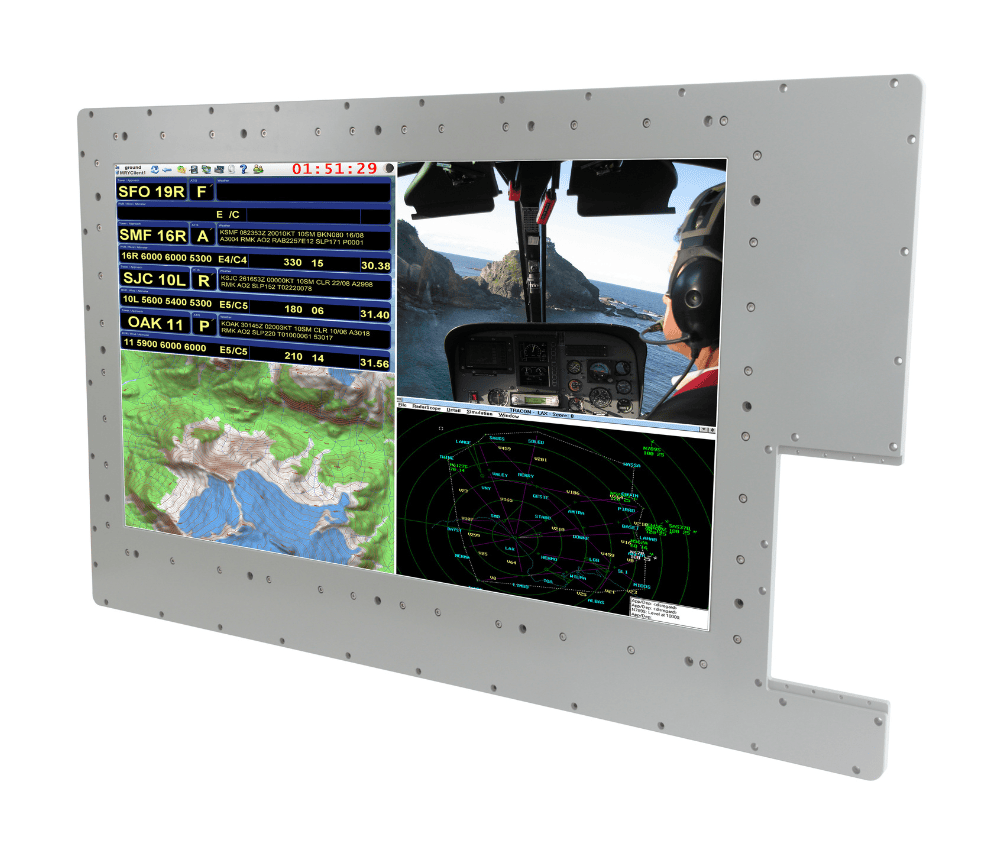

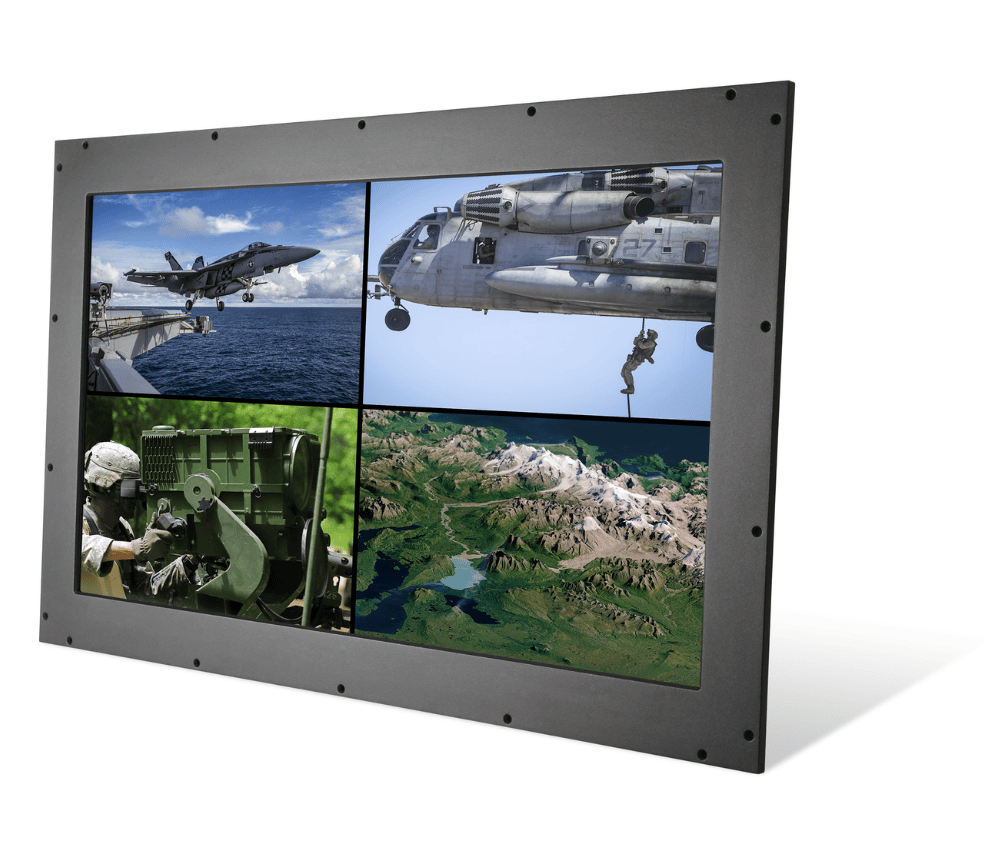

    Photo of Titan PanelMount 39 - Industrial-/military-grade large format 39.0" LCD monitor equipped with a multi-touch touch screen and custom bezel
    Photo of Titan PanelMount 39 - Rear view showing video and interface connectors, and membrane keypad for adjusting display parameters



    Titan PanelMount 39.0 Military-grade Display

    Photo of Titan PanelMount 39.0 Military-grade Display

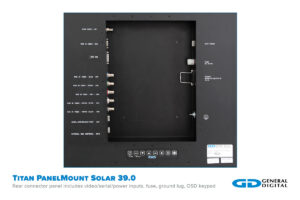

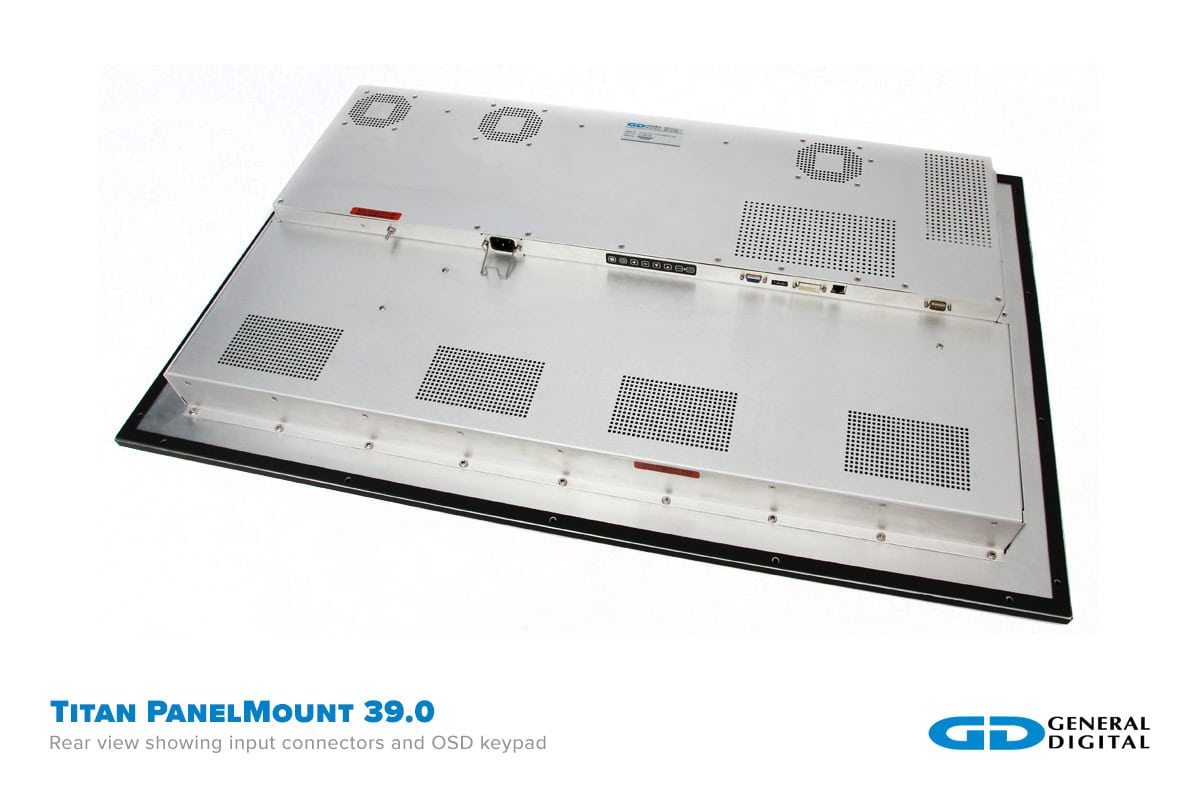

    Photo of Titan PanelMount 39.0 connector panel showing input connectors and OSD keypad



    Titan PanelMount 39.0 with Integrated Video Generator

    Photo of Titan PanelMount 39 with Integrated Video Generator
    Photo of Titan PanelMount 39.0 connector panel showing video and power inputs and outputs



    Titan PanelMount 37.0 with FourVue™

    Photo of Titan PanelMount 37 - Rugged large format 37.0" LCD monitor equipped with FourVue – 4 separate video inputs
    Photo of Titan PanelMount 37 - Rear view showing video and interface connectors, and external-mounted power supply
