Keyboards

General Digital offers a multitude of rack mount, panel mount, desktop and specialized keyboards for use with our rugged flat panel LCD monitors—or for use with virtually any computer system you already have in place.

  • Plastic, carbon fiber, aluminum and stainless steel enclosures
  • Spill/splash/waterproof enclosures
  • PS/2, USB, Sun® and custom interfaces supported
  • Backlit and NVIS-compatible keycaps available
  • Integrated Smart Card (CAC) readers available
  • Integrated KVM (Keyboard/Video/Mouse) switches available

As with our LCD monitors, our durable keyboard enclosures are available in military, industrial and commercial grades, specially designed to suit the rigors of their intended environments.

Our desktop keyboards are built to withstand high shock, vibration, electromagnetic and radio-frequency interference (EMI/RFI), as well as airborne and liquid contaminants. Optional TEMPEST Level I, Level II, and Level III protection is available.

Industry-leading design and a commitment to numerous standard and custom options and enhancements make our keyboard and pointing device products an indispensable complement to your human-machine interface.

Specifications subject to change without notice or obligation.

DESKTOP KEYBOARDS

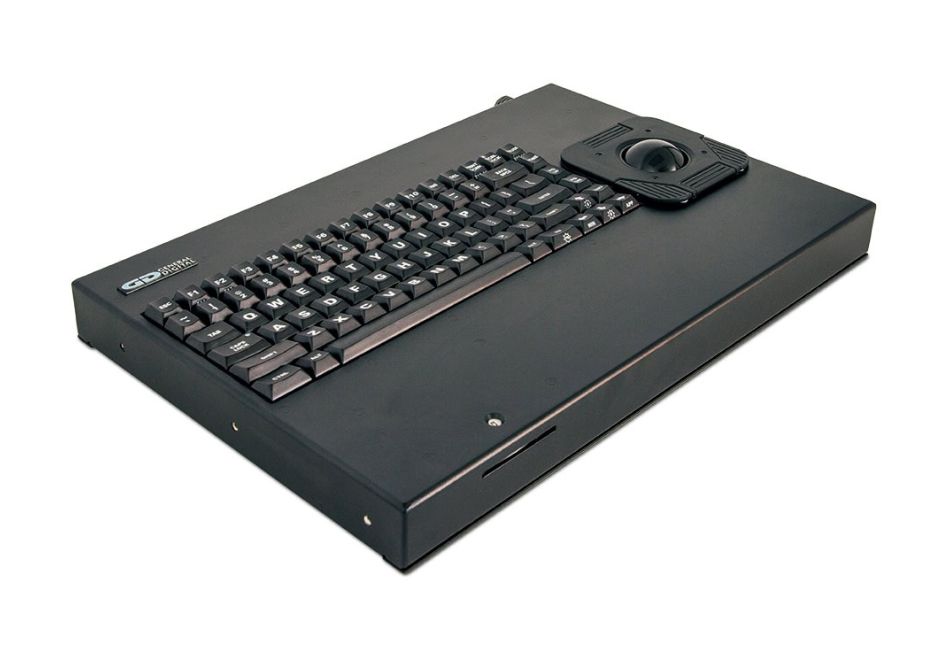

82-key Desktop Keyboard with Trackball

P/N 90-750-069
  • 90-750-069: 82-key Desktop Keyboard with 2-inch TrackballMilitary grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface
  • Military interface connector
  • 2.0″ sealed trackball with 4 mouse buttons
  • Embedded Smart Card (CAC) reader
  • Drip-proof from front
  • Control Drawing
  • Data Sheet

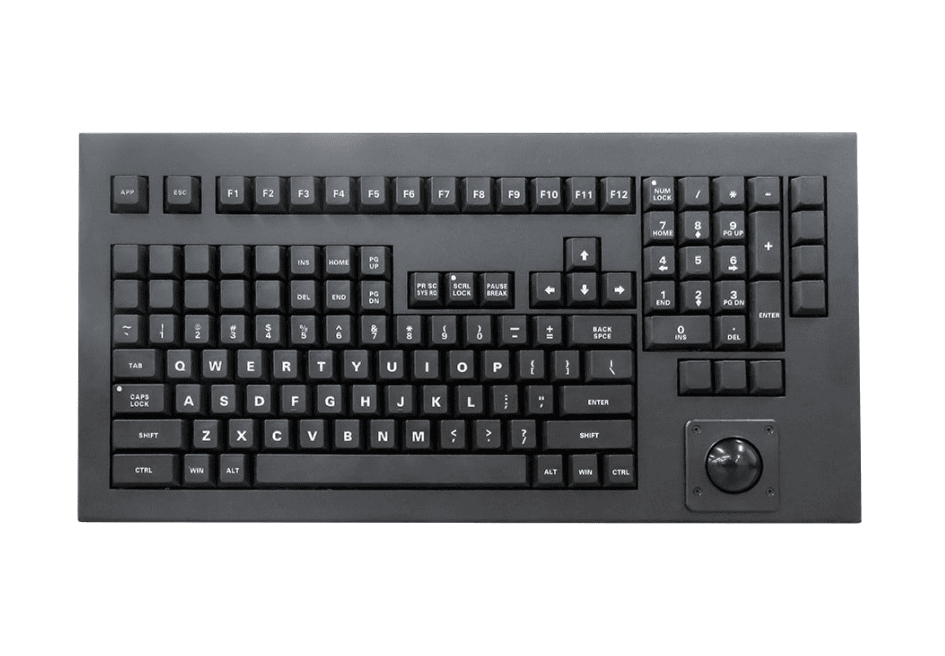

121-key Desktop Keyboard with Trackball

P/N 90-750-049-C
  • Photo of 121-key Desktop Keyboard with TrackballIndustrial grade
  • Black, powder coated, aluminum enclosure
  • PC USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Drip-proof from front
  • Data Sheet

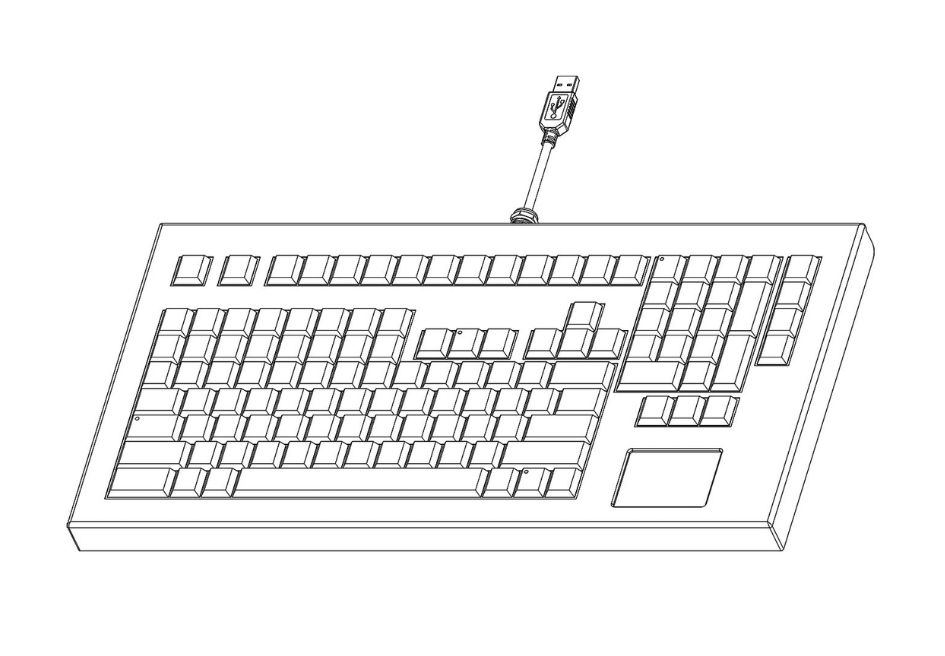

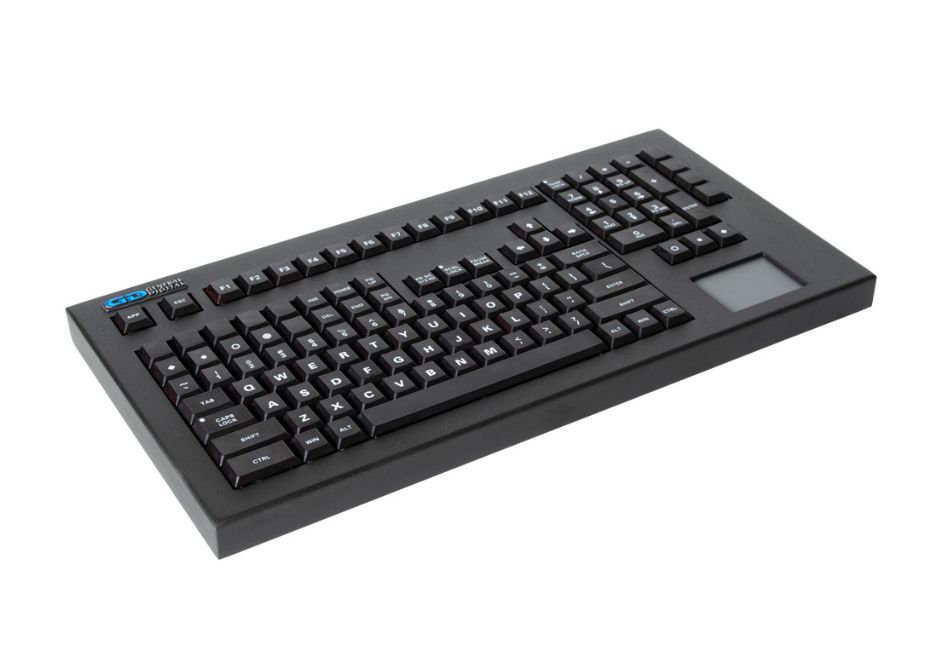

121-key Desktop Keyboard with Touch Pad

121-key Desktop Keyboard with Touch Pad and attached USB CableP/N 90-750-085
  • Military/industrial grade
  • Black, powder coated, aluminum enclosure
  • PC USB interface
  • Sealed touch pad with 3 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-108
    • MIL-STD-167-1A
    • MIL-STD-810
    • MIL-DTL-901E
  • Separate numeric keypad
  • Low smoke zero halogen cables
  • Control Drawing
  • Data Sheet

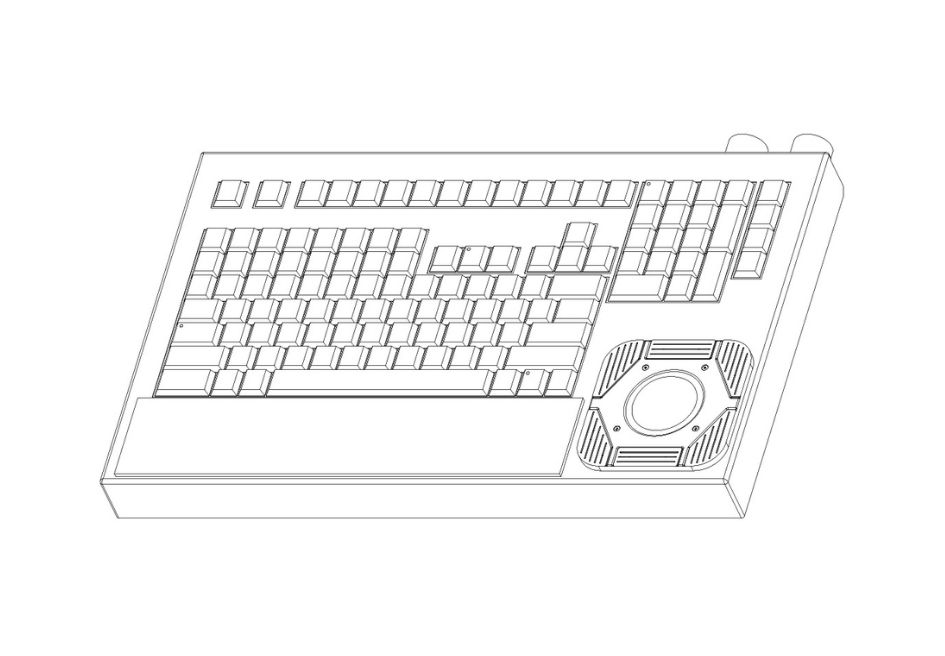

121-key Desktop Keyboard with Trackball

P/N 90-750-107
  • 90-750-107: 121-key Desktop Keyboard with 2-inch TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Green backlit keys
  • PC USB interface (x2)
  • 2.0″ sealed trackball with 6 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-167
    • MIL-STD-810
    • MIL-STD-461
    • MIL-STD-464
  • Keyboard backlight brightness control
  • Keyboard backlight blackout control
  • Wrist rest
  • Auxiliary USB input
  • Control Drawing
  • Data Sheet

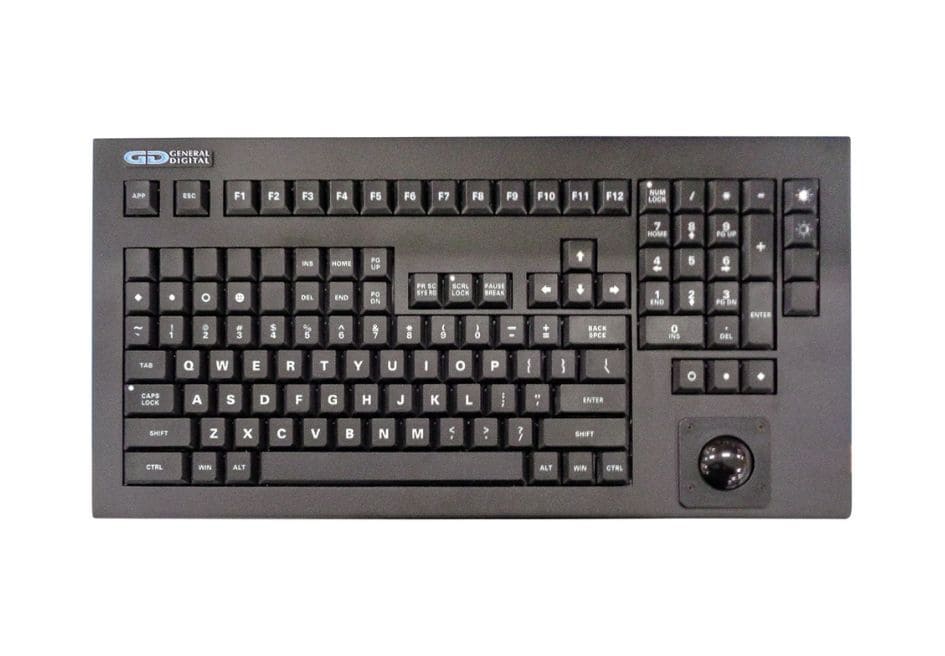

121-key Desktop Keyboard with Trackball

P/N 90-750-112
  • Photo of 121-key Desktop Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Keyboard backlight brightness control
  • Shock sensing
  • Keycap clips
  • Internal pull-up resistor
  • Control Drawing
  • Data Sheet



121-key Desktop Keyboard with Touch Pad

P/N 90-750-117
  • Photo of 121-key Desktop Keyboard with Touch Pad and Numeric KeypadIndustrial grade
  • Black, powder coated, aluminum enclosure
  • PC USB interface
  • Sealed touch pad with 3 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-108
    • MIL-STD-167-1A
    • MIL-STD-810
    • MIL-DTL-901E
  • Separate numeric keypad
  • Internal pull-up resistor
  • Control Drawing
  • Data Sheet

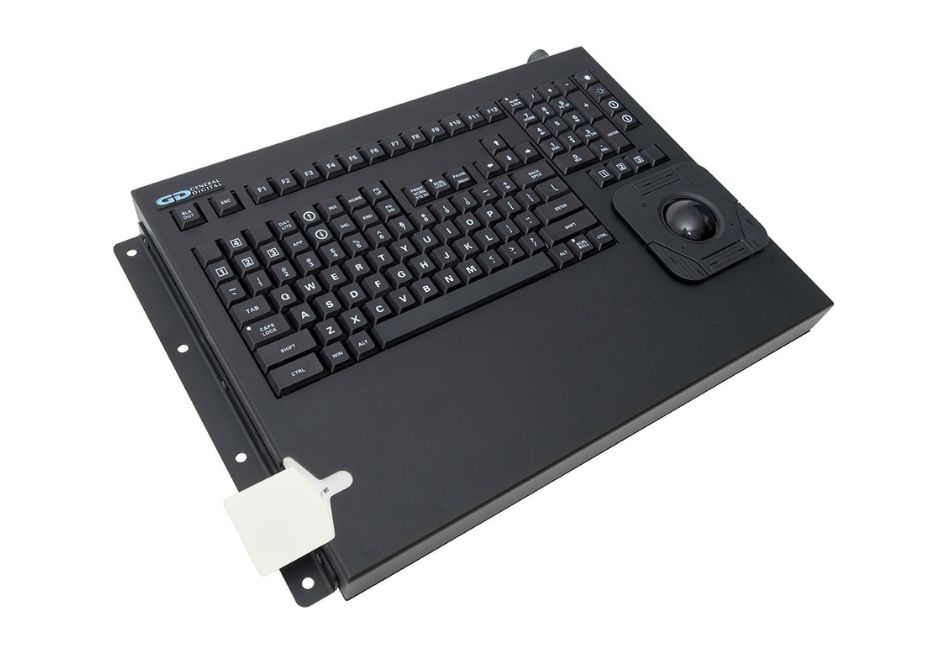

121-key Desktop Keyboard with Trackball and Smart Card Reader

Photo of 121-key Desktop Keyboard with Trackball and Smart Card ReaderP/N 90-750-131-A
  • Military/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface (military connector)
  • 2″ sealed trackball with 4 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-461
    • MIL-STD-810
  • Embedded Smart Card (CAC) reader
  • Internal USB hub
  • Desktop mounting brackets
  • Extended keyboard drain
  • Integrated gasket
  • Control Drawing
  • Data Sheet

PANEL MOUNT KEYBOARDS

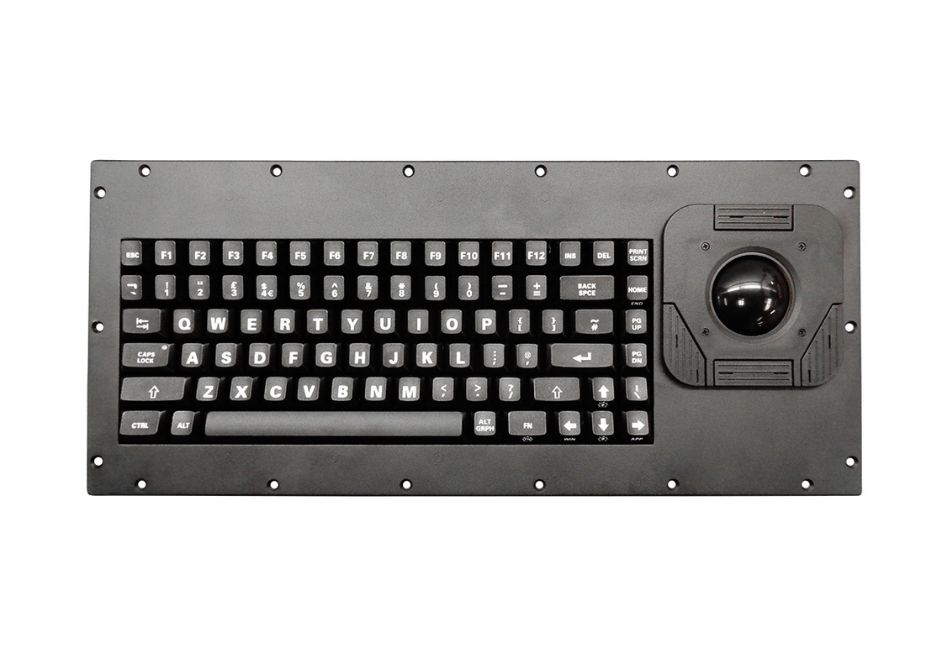

82-key Panel Mount Keyboard with Trackball

P/N 90-750-074-A
  • Photo of 82-key Panel Mount Keyboard with 2-inch Trackball Military/industrial grade
  • Black, powder coated, aluminum bezel
  • Red backlit keys
  • PC USB interface
  • 2″ sealed trackball with 3 mouse buttons (4th is disabled)
  • Built to be in compliance with:
    • MIL-STD-167-1
    • MIL-STD-461
    • MIL-STD-454
    • Shock: 40 G for 12.5 ms
  • United Kingdom keyboard layout
  • IP65 environmental sealing
  • Control Drawing
  • Data Sheet

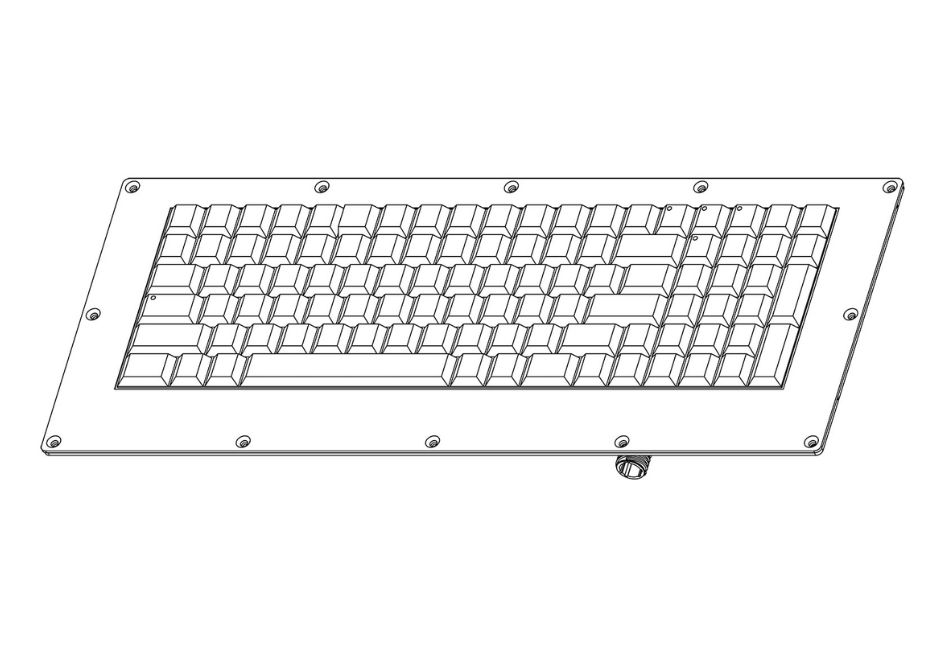

90-key Panel Mount Keyboard

P/N 90-750-114
  • Drawing of 90-key Panel Mount KeyboardMilitary/industrial grade
  • Black, powder coated, aluminum bezel
  • White backlit keys
  • PC USB interface (military connector)
  • Built to be in compliance with:
    • MIL-STD-167-1A
    • MIL-STD-810E
    • MIL-STD-810G
    • MIL-STD-108E
    • NEMA 4 & IP65
  • Separate numeric keypad
  • No pointing device
  • Control Drawing
  • Data Sheet

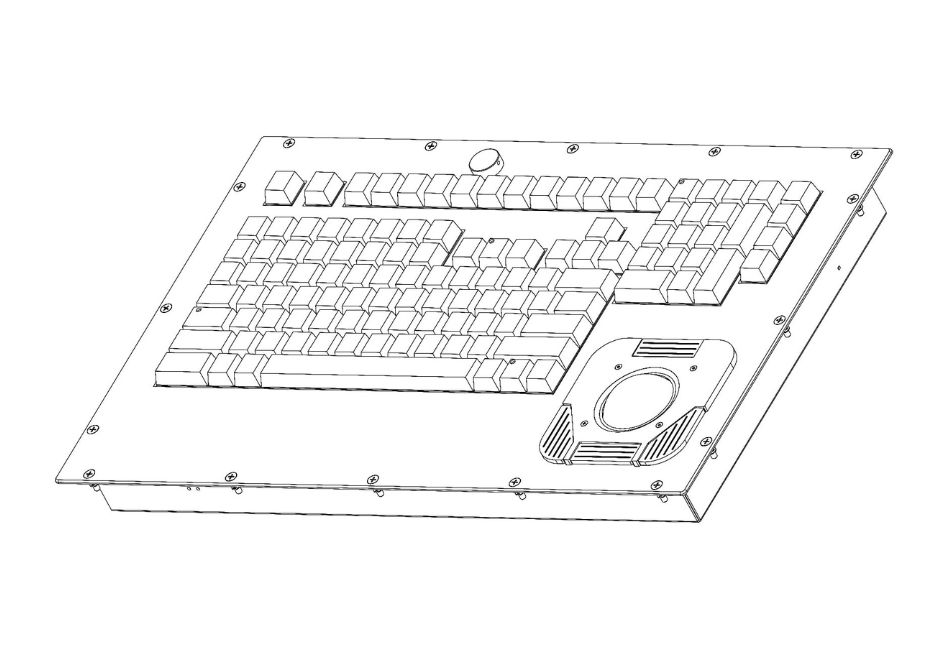

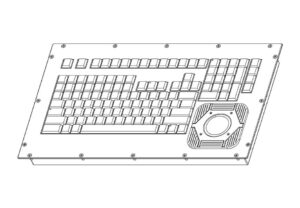

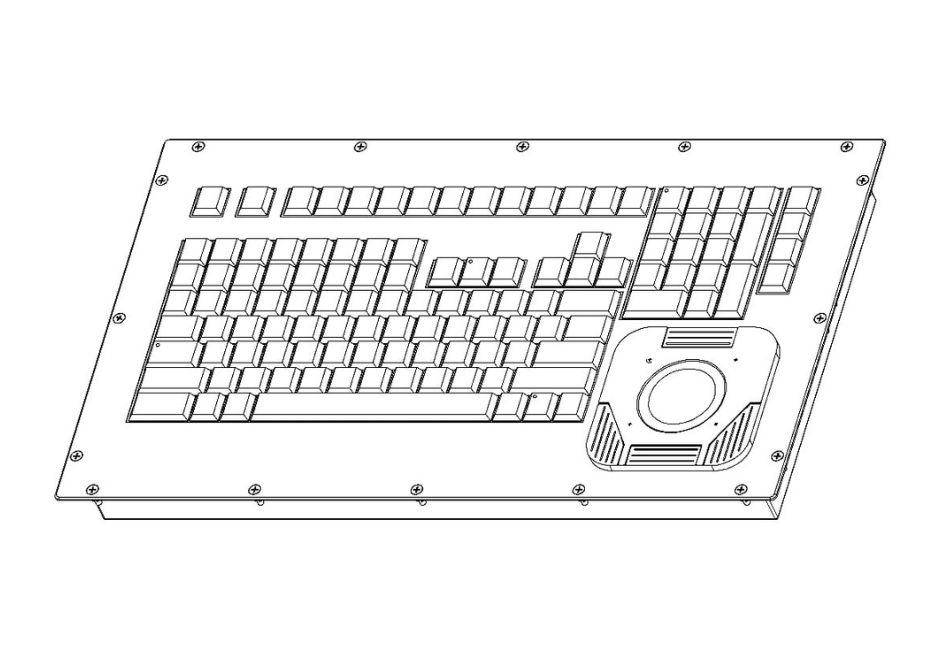

121-key Panel Mount Keyboard with Trackball

P/N 90-750-095
  • Drawing of 121-key Panel Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum bezel
  • Green backlit keys
  • PC USB interface
  • 2″ sealed trackball with 4 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-461
    • MIL-STD-810
  • NVIS Class B Backlit
  • Keyboard backlight blackout control
  • Control Drawing
  • Data Sheet

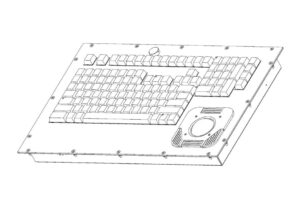

121-key Panel Mount Keyboard with Trackball

P/N 90-750-098
  • Drawing of 121-key Panel Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum bezel
  • Green backlit keys
  • PC USB interface
  • 2″ sealed trackball with 4 mouse buttons
  • Built to be in compliance with:
    • MIL-STD-461
    • MIL-STD-810
  • NVIS backlit
  • Keyboard brightness control
  • Keyboard backlight blackout control
  • Control Drawing
  • Data Sheet



121-key Panel Mount Keyboard with Trackball

P/N 90-750-125
  • 121-key Panel Mount Keyboard with 2-inch Trackball and Numeric KeypadMilitary/industrial grade
  • Black, powder coated, aluminum bezel
  • NVIS Green backlit keys
  • PC USB interface
  • 2″ sealed trackball with 6 mouse buttons
  • Keyboard brightness control
  • Keyboard backlight blackout control
  • Control Drawing
  • Data Sheet

RACK MOUNT KEYBOARDS

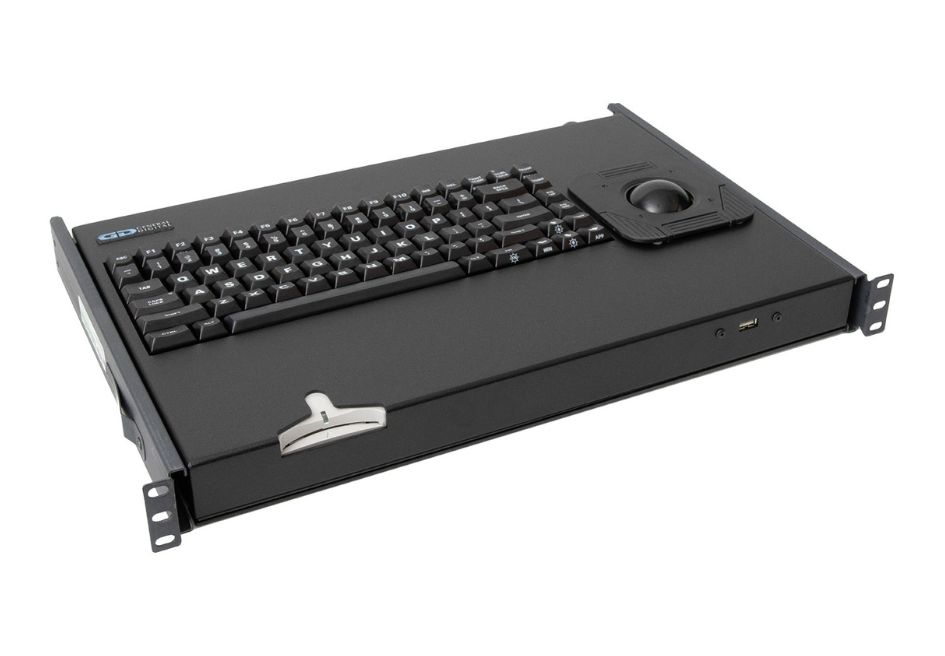

82-key Rack Mount Keyboard with Trackball and Smart Card Reader

90-750-065-A
  • Photo of 82-key Rack Mount Keyboard with Trackball and Smart Card ReaderMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Embedded CAC (Smart Card) reader
  • Red backlit keys
  • PC USB interface (military connector)
  • 2″ sealed trackball with 3 mouse buttons
  • 12″ slides extend to 25″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • Auxiliary USB port
  • Extended Keyboard Drain
  • Control Drawing
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-041-A
  • Drawing of 121-key Rack Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PS/2 interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • 18″ slides extend to 31″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • Drip-proof from front
  • Rack Adaptor Kit
  • Keyboard brightness control
  • Shock sensing
  • Keycap clips
  • Control Drawing
  • Data Sheet

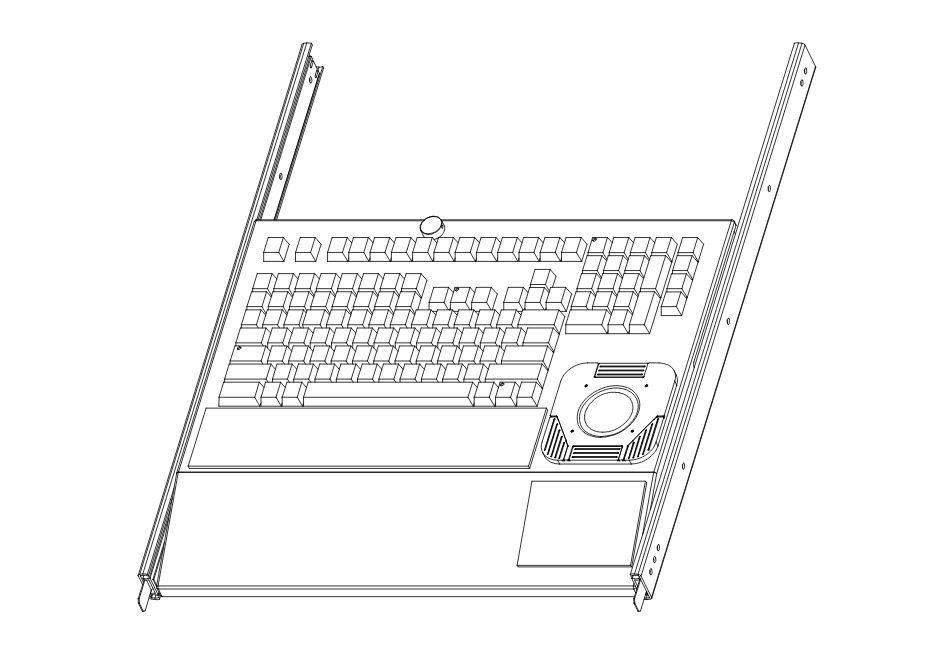

121-key Rack Mount Keyboard with Trackball

P/N 90-750-077-A
  • Drawing of 121-key Rack Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface
  • 2″ sealed trackball with 3 mouse buttons
  • 22″ slides extend to 38″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • Integrated wrist rest
  • Keyboard brightness control
  • Control Drawing
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-080-B
  • Photo of 121-key Rack Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • 18″ slides extend to 31″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • Integrated wrist rest
  • Internal USB pull-up resistor
  • Keyboard brightness control
  • Shock sensing
  • Keycap clips
  • Integrated gasket
  • Control Drawing
  • Data Sheet

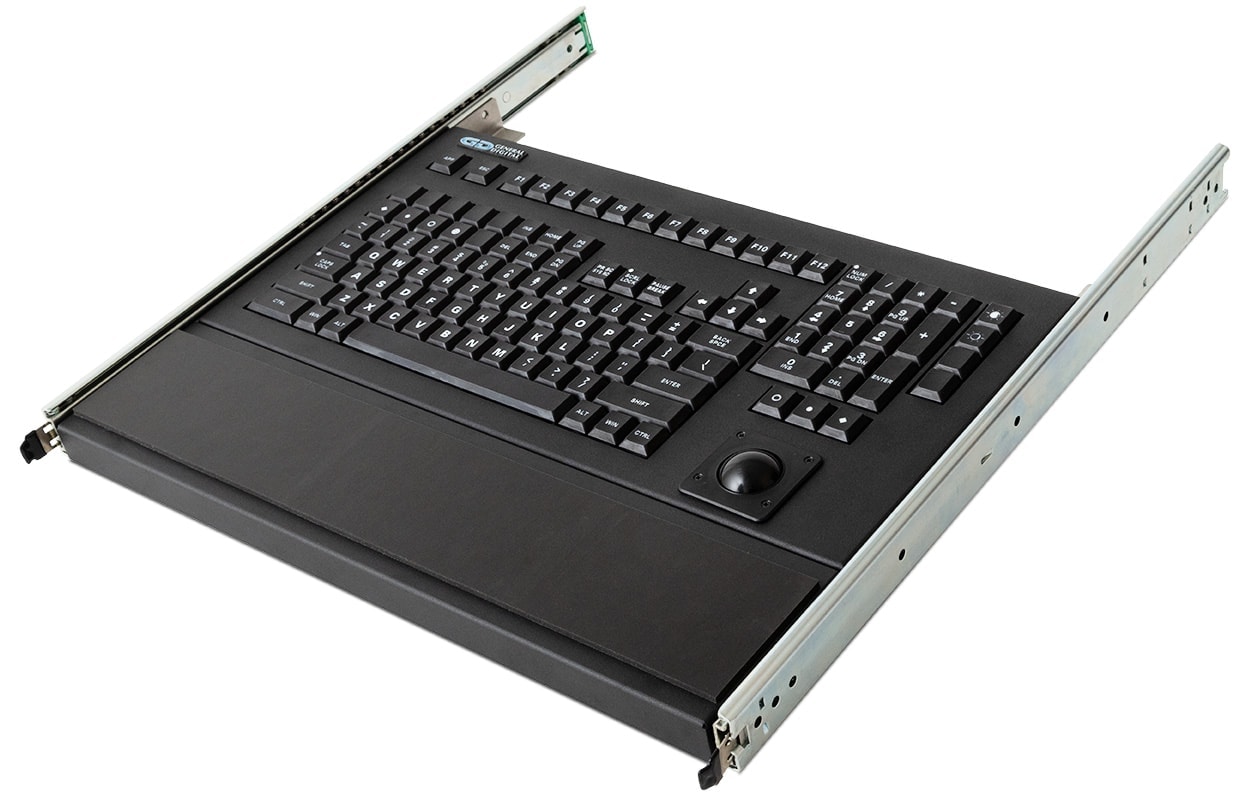

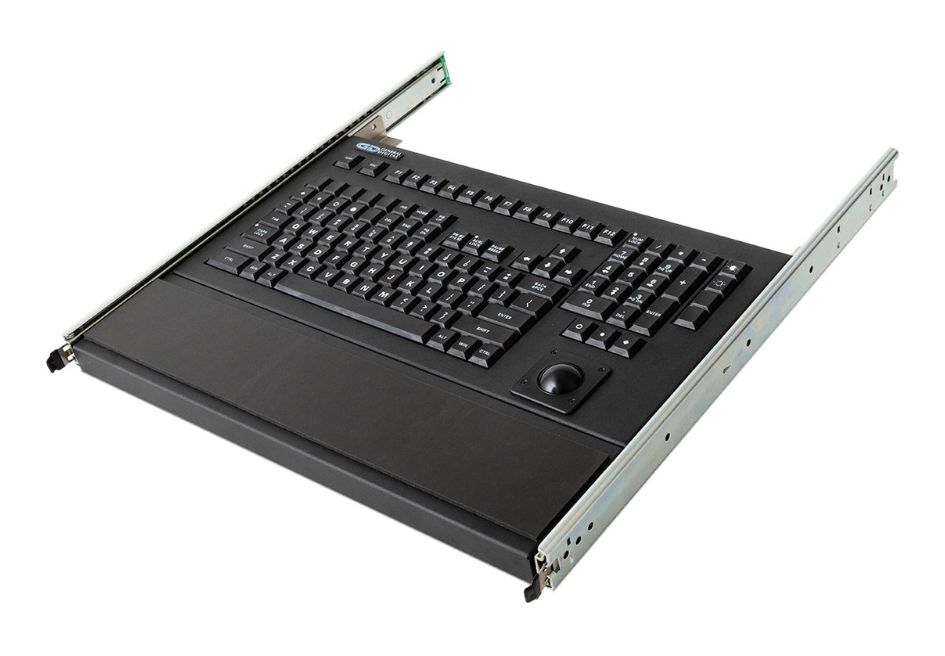

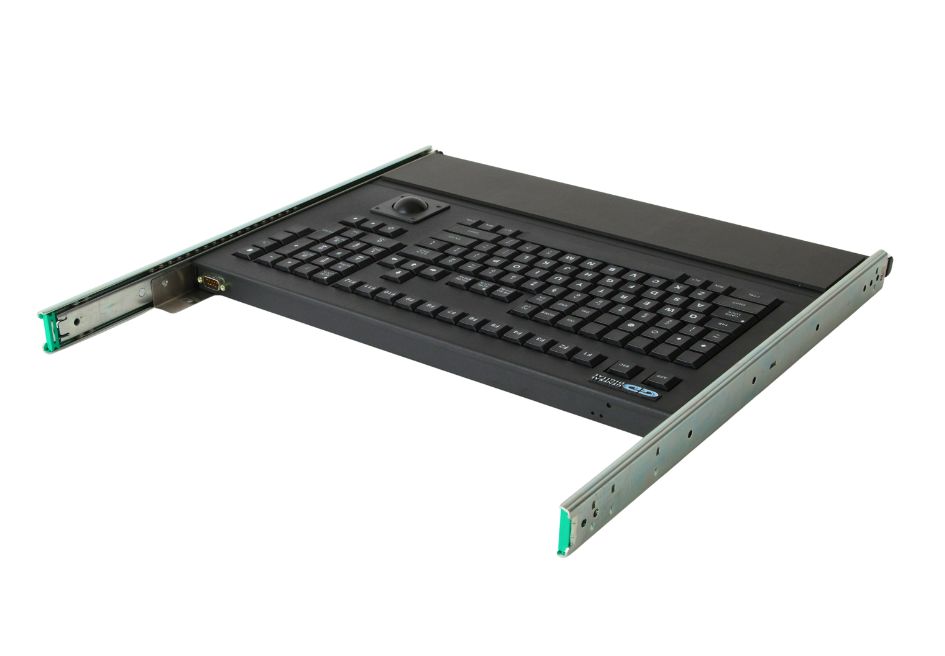

121-key Rack Mount Keyboard with Trackball

P/N 90-750-096
  • Photo of 121-key Rack Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Green backlit keys
  • PC USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • 18″ slides extend to 31″
  • Integrated wrist rest
  • Keyboard brightness control
  • Shock sensing
  • Keycap clips
  • Integrated gasket
  • Control Drawing
  • Data Sheet

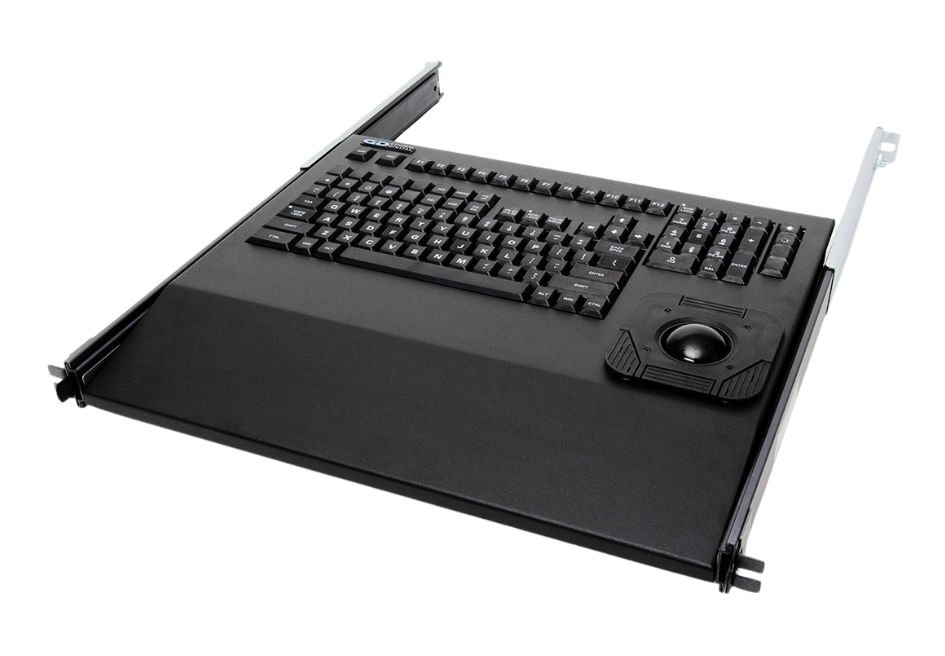

121-key Rack Mount Keyboard with Trackball

P/N 90-750-103
  • Photo of 121-key Rack Mount Keyboard with TrackballMilitary/industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PC USB interface
  • 2″ sealed trackball with 3 mouse buttons
  • 22″ slides extend to 38″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • Integrated wrist rest
  • Keyboard brightness control
  • Integrated gasket
  • Control Drawing
  • Data Sheet



114-key Rack Mount Keyboard with HulaPoint

P/N 90-750-120
  • Photo of 114-key Rack Mount Keyboard with HulaPointIndustrial grade
  • Black aluminum enclosure
  • PC USB interface
  • Sealed HulaPoint pointing device with 3 mouse buttons
  • 16″ slides extend to 33″
  • Built to be in compliance with:
    • MIL-STD-810 Shock & Vibration
    • MIL-STD-461 EMI/RFI
  • T-handle
  • NEMA 12 sealed
  • Control Drawing
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-020
  • Photo of 121-key Rack Mount Keyboard with TrackballIndustrial grade
  • Black, powder coated, aluminum enclosure
  • PS/2 interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Rack Adaptor Kit
  • Drip-proof from front
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-021-B
  • Photo of 121-key Rack Mount Keyboard with TrackballIndustrial grade
  • Black, powder coated, aluminum enclosure
  • Sun Type 6 USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Rack Adaptor Kit
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-033
  • Industrial grade
  • Black, powder coated, aluminum enclosure
  • SUN Type 5 interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Rack Adaptor Kit
  • Drip-proof from front
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-042-A
  • Photo of 121-key Rack Mount Keyboard with TrackballIndustrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • PS/2 interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Rack Adaptor Kit
  • Custom Scan Codes Programmed
  • Data Sheet



121-key Rack Mount Keyboard with Trackball

P/N 90-750-115
  • Industrial grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • USB interface
  • 1-3/8″ sealed trackball with 3 mouse buttons
  • Rack Adaptor Kit
  • Certified to UL60950 and FCC Part 15, Class B
  • Data Sheet

SPECIALIZED KEYBOARDS

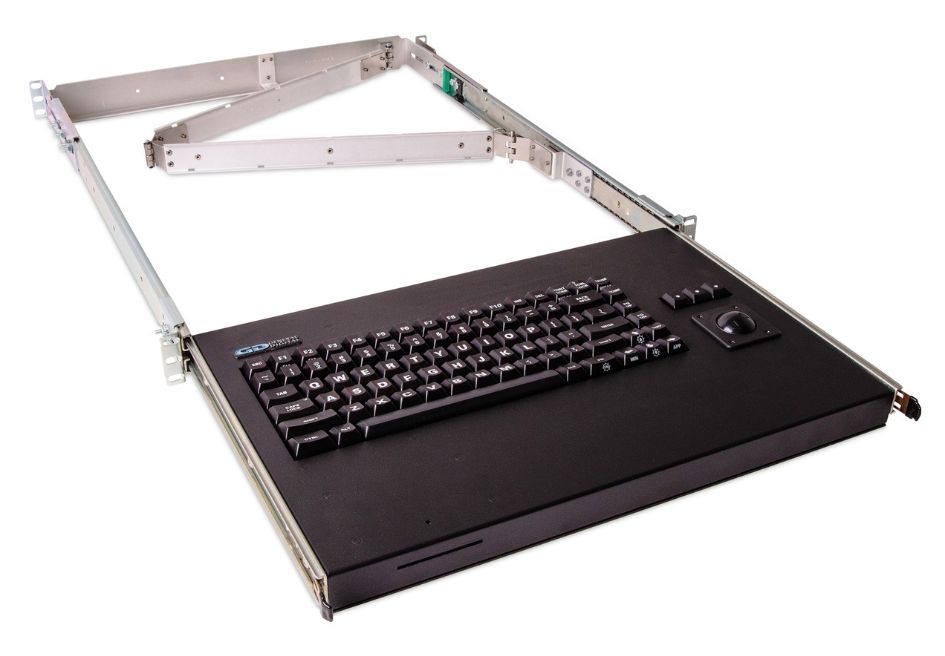

82-key Specialized Keyboard with Trackball

P/N 90-750-099
  • photo of 82-key specialized rack mount keyboardMilitary grade
  • Black, powder coated, aluminum enclosure
  • Red backlit keys
  • Rack mount with 18″ slides
  • PC USB interface
  • 1-3/8″ trackball with three mouse buttons
  • Built to be in compliance with:
    • MIL-STD-461
    • MIL-STD-901
  • Embedded Smart Card (CAC) reader
  • Cable Management Guide
  • Data Sheet

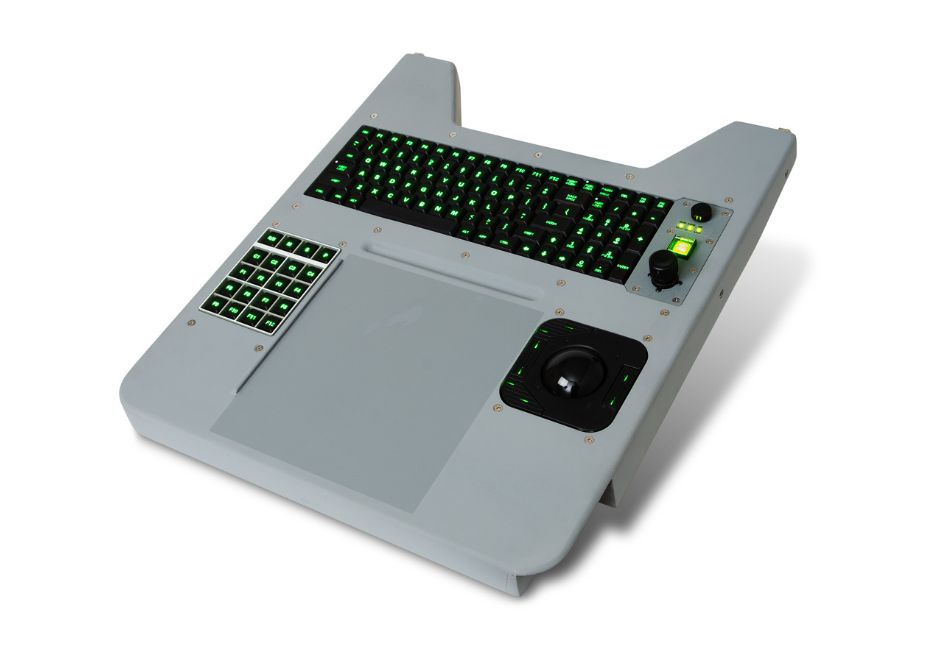

100-key Specialized Keyboard with Trackball

P/Ns 90-750-075, 90-750-090, 90-750-104,
90-750-111, 90-750-129, 90-750-147
  • photo of 90-750-104 keyboardMilitary grade
  • Gray, carbon fiber enclosure
  • Green backlit keys
  • PC USB interface
  • 2.5″ trackball with four mouse buttons
  • Built to be in compliance with:
    • MIL-STD-461
    • MIL-STD-810
  • Separate 20-key backlit function keypad
  • Force-operated joystick
  • Capped reset switch
  • Keyboard selector knob
  • Auxiliary USB port
  • Textured writing surface with stylus holder
  • REX supported
  • Several variations to suit specific requirements
  • U.S. Navy aircraft compatible
  • 90-750-129 Control Drawing
  • 90-750-111 Control Drawing
  • 90-750-090 Control Drawing
  • Data Sheet

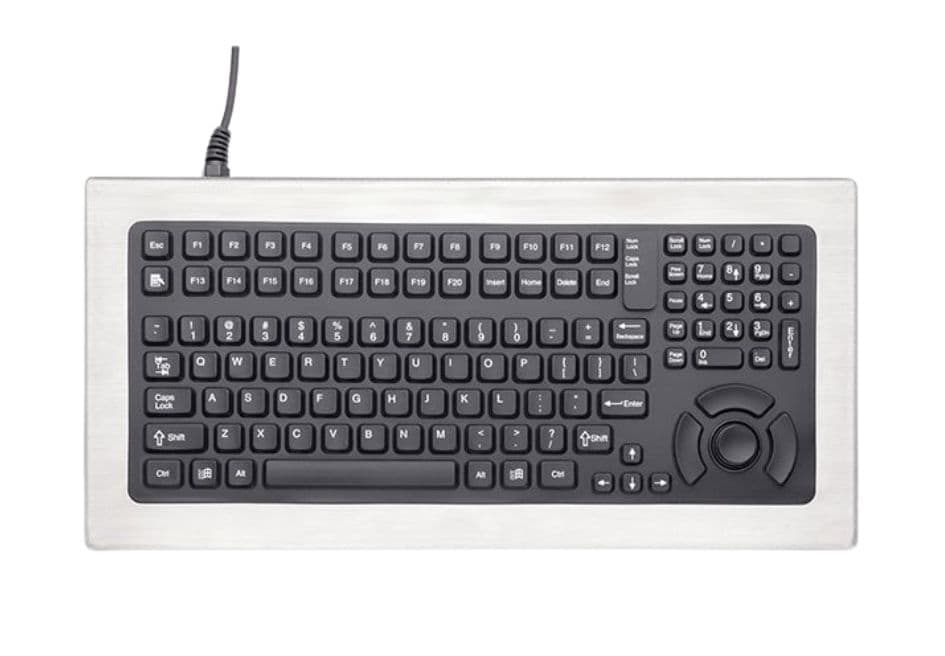

114-key Specialized Keyboard

P/N 90-750-113
  • Industrial grade
  • Unpainted stainless steel enclosure
  • PS/2 interface
  • Built to be in compliance with:
    • UL60950
    • FCC Part 15 Class B
  • NEMA 4/4X sealed
  • 24 function keys
  • Separate 10-key numeric keypad
  • Data Sheet
