DISPLAY HEAD ASSEMBLY

Few Integrators, Value-Add Resellers or Custom Engineering Houses can boast having over 40 years of experience in the flat panel display marketplace like General Digital. Still fewer offer the full spectrum of integration expertise and services under one roof.

While General Digital is perhaps best known for its myriad of standard turnkey product offerings and “build-to-order” custom monitor solutions, no product epitomizes our integration prowess as well as our Display Head Assembly (DHA) enhanced screens.

  • Overview

    Key Features

    • Core flat panel displays from 6.5″ to 65″ (inquire about all available sizes)
      • Enhanced by General Digital with countless value-add products and services
    • Design, manufacture and integration of:
      • Single board computers
      • Various controllers
      • Other electronics and PCBs
      • Enclosures and bezels
      • Various overlays
      • Much more
    A Solid Foundation Upon Which to Build
    photo collage

    General Digital defines a Display Head Assembly (DHA) as a composite consisting of a flat screen display that has been selected specifically for the application requirements, and one or more of our value-add products and services.

    Display Head Assemblies are intended for customers who will provide some level of design integration on their own. Rather than purchase a turnkey monitor, they elect to procure a monitor subset featuring a flat panel display and one or more value-add products and/or services. The DHA readily allows customers to protect their proprietary technology, utilize their skill sets to their fullest economic and performance advantage, and specify only the products and services that we have mastered and uniquely provide.

    LCD Selection

    The DHA begins with selection of a flat panel display that best meets the electrical, optical, physical and environmental requirements of the application. Other factors include:

    • pricing
    • availability
    • length of product life cycle

    In the event that an off-the-shelf display does not meet all of the necessary requirements, we have the ability to enhance the standard performance with our value-add and integration services.

    Selection of the target core OEM display can be predetermined by the customer, or recommended by General Digital. We may suggest an “off-the-shelf” OEM panel, the enhancement of an OEM panel or a value-add panel that we have already engineered and tested (such as the LED-enhanced, sunlight readable and NVIS-compatible panels shown in our Enhanced Displays Line-Up Sheet).

    General Digital has the in-house capability to quantify any enhanced display’s performance optically (e.g., brightness, contrast, reflectivity, NVIS compatibility), thermally (e.g., temperature chamber), electrically and for emissions, as well as other mechanical or miscellaneous testing.

    Read more about:

    Enhancement Choices

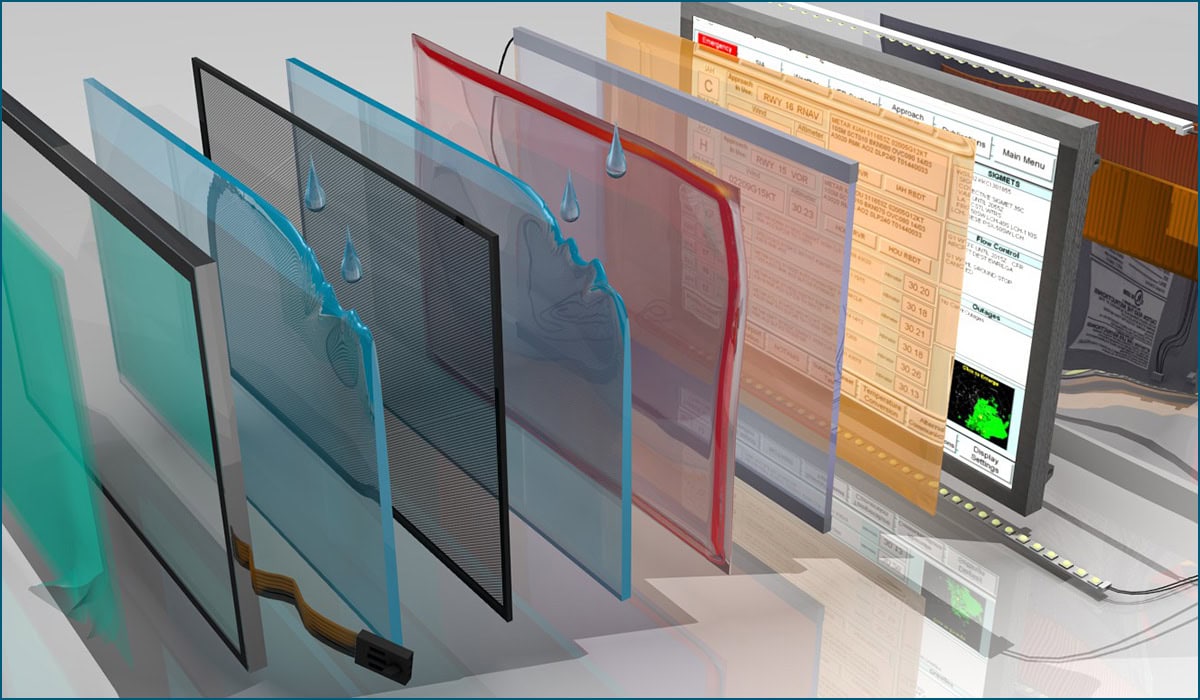

    After the display has been properly selected, General Digital can embellish the performance of the flat screen panel with a multitude of optical, electrical or mechanical overlays in the form of products and services, as shown in the graphics below.

    Front View

    Rear View

    Bezel Choices

    After the elements of the Display Overlay Assembly have been selected and completed, General Digital can further embellish the DHA by adding optional bezel enhancements, as shown in the graphic below.

    Rear Enclosure Choices

    General Digital can also integrate electronic and mechanical options in a rear enclosure. We can accommodate specialty needs with commercial-, industrial- and military-grade components, as shown in the graphics below.

    Interior View

    Exterior View

    Other Options & Accessories

    photo of display options

    A myriad of display enhancements and services are available, such as:

    • Programmable backlight/thermal controllers for optimal brightness/temperature conditions
    • Rack mount keyboards and desktop keyboards with integrated pointing device
    • Smart Card (CAC) readers
    • Video/serial/power cables
    • Fiber optics
    • Custom controls
    • Private labeling
    • Extended warranties

    Please consult a Sales Engineer to discuss your specific needs or ideas.

    Configuration Control for Extended Life Cycle

    We at General Digital are completely responsible for the design and construction of our products, allowing us to maintain nearly total control of their future. To that end, we gladly offer our engineering services to customers who require special customization of our devices to meet their commercial, industrial, marine or military requirements.

    Our experience supporting Department of Defense programs has taught us the value of designing products with foresight so that they can be manufactured, serviced and upgraded for many years.

    Though the market introduces new innovations and product upgrades at an alarming rate, our product management team knows the importance of proactive customer notification. Thus, we can offer product adaptation with similar or equivalent performance before designs become obsolete, thereby extending the product life cycle.

    Please consult a Sales Engineer for additional details.

  • Design Your Display

    PDF iconDownload the Enhanced Display Product Line-Up Sheet

    Example Configurations

    Enhanced LCDs Line-Up

    High brightness LCD High brightness
    NVIS compatible LCD NVIS compatible
    Extended operating temperature range LCD Extended operating temperature
    Extended color gamut LCD Extended color gamut
    nits = cd/m²
    ms = milliseconds
    SR = Sunlight Readable
    NVIS = Night Vision Imaging System
    Display Size6.5"6.5"8.4"
    Part Number90-4064-001
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4064-003
    High brightness LCD NVIS compatible LCD
    90-4084-003
    High brightness LCD NVIS compatible LCD
    StatusIn ProductionIn ProductionIn Production
    Resolution640 x 4801024 x 7681024 x 768
    Aspect Ratio4:34:34:3
    Brightness
    @ Rail Temp.
    3100 nits
    @ 50 °C
    3950 nits
    @ 50 °C
    1850 nits
    @ 47 °C
    Contrast Ratio650:1850:1700:1
    Weber Class656
    Display ModeSR/NVISSR/NVISSR/NVIS
    Colors6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    6-bit/
    8-bit + Hi-FRC
    Response
    Time
    3/15 ms3/15 ms13/12 ms
    Viewing
    Angle
    ±80° H/±80° V±80° H/
    +80°,–60° V
    ±88° H/±88° V
    NTSC40%36%71%
    TechnologyTNTNa-Si TFT
    Operating
    Temperature
    –30 to 80 °C–20 to 70 °C–20 to 70 °C
    Storage
    Temperature
    –30 to 80 °C–30 to 80 °C–30 to 80 °C
    Power8 W16.5 W10.5 W
    Data SheetN/ADownloadDownload



    Display Size10.4"12.1"
    Part Number90-4104-018
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4104-019
    NVIS compatible LCD Extended operating temperature range LCD
    90-4104-020
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4104-021
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4121-001
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    StatusIn ProductionIn ProductionIn ProductionIn ProductionIn Production
    Resolution1024 x 7681024 x 7681024 x 7681024 x 7681024 x 768
    Aspect Ratio4:34:34:34:34:3
    Brightness
    @ Rail Temp.
    1000 nits
    @ 60 °C
    350 nits
    @ 50 °C
    1950 nits
    @ 70 °C
    3950 nits
    @ 60 °C
    2100 nits
    @ 50 °C
    Contrast Ratio1100:1N/A1250:1850:1950:1
    Weber Class5N/A665
    Display ModeSR/NVISSR/NVISSR/NVISSR/NVISSR
    Colors6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    Response
    Time
    14/11 ms14/11 ms25 ms total16 ms total5/11 ms
    Viewing
    Angle
    ±88° H/±88° V±88° H/±85° V±88° H/±85° V±75° H/
    +60°,–70° V
    ±80° H/±70° V
    NTSC55%55%70%50%63%
    TechnologySuper MVASuper MVAADSTNa-Si TFT
    Operating
    Temperature
    –30 to 70 °C–30 to 70 °C–45 to 85 °C–20 to 70 °C–30 to 70 °C
    Storage
    Temperature
    –30 to 80 °C–30 to 80 °C–55 to 85 °C–30 to 80 °C–40 to 80 °C
    Power17 W13 W17 W11 W12 W
    Data SheetDownloadN/ADownloadDownloadN/A



    Display Size15.0"15.6"17.0"
    Part Number90-4150-010
    High brightness LCD NVIS compatible LCD
    90-4150-011
    High brightness LCD Extended operating temperature range LCD
    90-4150-012
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4156-002
    High brightness LCD
    90-4156-003
    High brightness LCD NVIS compatible LCD
    90-4170-005
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4170-006
    High brightness LCD Extended operating temperature range LCD
    StatusIn ProductionIn ProductionIn ProductionIn ProductionIn ProductionIn ProductionIn Production
    Resolution1024 x 7681024 x 7681024 x 7681024 x 7681024 x 7681024 x 7681024 x 768
    Aspect Ratio4:34:34:316:916:95:45:4
    Brightness
    @ Rail Temp.
    900 nits
    @ 50 °C
    1350 nits
    @ 50 °C
    1350 nits
    @ 50 °C
    1350 nits @
    55 °C
    1300 nits @
    55 °C
    950 nits
    @ 50 °C
    950 nits
    @ 50 °C
    Contrast Ratio1150:11100:11100:1650:1500:1800:1800:1
    Weber Class5455565
    Display ModeSR/NVISSRSR/NVISSRSR/NVISSR/NVISSR
    Colors6-bit/8-bit6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    8-bit6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    6-bit/
    6-bit + FRC
    Response
    Time
    3/5 ms5.7/2.3 ms5.7/2.3 ms8 ms total8 ms20/10 ms20/10 ms
    Viewing
    Angle
    ±80° H/±80° V±80° H/
    +60°, –80° V
    ±80° H/
    +60°, –80° V
    ±80° H/±70° V±70° H/±60° V±80° H/
    +60°, –80° V ±80° H/
    ±80° H/
    +60°, –80° V ±80° H/
    NTSC60%60%60%74%75%60%60%
    TechnologyTNTNADSSi TFTSi TFTTNTN
    Operating
    Temperature
    –20 to 70 °C–30 to 85 °C–30 to 85 °C–10 to 70 °C–10 to 70 °C–30 to 85 °C–30 to 85 °C
    Storage
    Temperature
    –30 to 80 °C–30 to 85 °C–30 to 85 °C–20 to 70 °C–20 to 70 °C–30 to 85 °C–30 to 85 °C
    Power13 W13 W13 W18 W18 W22 W22 W
    Data SheetDownloadDownloadN/ADownloadDownloadDownloadN/A



    Display Size 17.3" 18.5" 19.0" 20.1"
    Part Number 90-4173-001
    High brightness LCD NVIS compatible LCD
    90-4185-001
    High brightness LCD NVIS compatible LCD
    90-4190-009
    High brightness LCD
    90-4190-010
    High brightness LCD NVIS compatible LCD
    90-4190-013
    High brightness LCD NVIS compatible LCD Extended operating temperature range LCD
    90-4201-007
    NVIS compatible LCD
    StatusIn Production In Development In Production In Production In Production In Production
    Resolution 1920 x 1080 1920 x 1080 1280 x 1024 1280 x 1024 1280 x 1024 1600 x 1200
    Aspect Ratio 16:9 16:9 5:4 5:4 5:4 4:3
    Brightness
    @ Rail Temp.
    950 nits
    @ 55 °C
    N/A 1550 nits
    @ 50 °C
    950 nits
    @ 50 °C
    1300 nits
    @ 60 °C
    550 nits
    @ 50 °C
    Contrast Ratio 900:1 N/A 1000:1 N/A 1150:1 1200:1
    Weber Class 5 N/A 5 5 6 4
    Display Mode SR/NVIS SR/NVIS SR SR/NVIS SR/NVIS STD/NVIS
    Colors 8-bit N/A 6-bit + FRC 6-bit + FRC 6-bit + FRC 8-bit
    Response
    Time
    37/3 ms N/A 3.6/1.4 ms 3.6/1.4 ms 7/3 ms 30 ms total
    Viewing
    Angle
    ±80° H/
    +60°, –80° V
    N/A ±85° H/±80° V ±85° H/±80° V ±85° H/±80° V ±85° H/±85° V
    NTSC 78% N/A 72% 72% 75% 71%
    Technology A-Si LCM N/A TN TN Si TFT VA
    Operating
    Temperature
    0 to 70 °C N/A 0 to 50 °C 0 to 50 °C –30 to 85 °C 0 to 60 °C
    Storage
    Temperature
    –30 to 75 °C N/A –20 to 60 °C –20 to 60 °C –30 to 85 °C –25 to 60 °C
    Power22W N/A 22 W 17 W 29 W 23 W
    Data Sheet DownloadN/A N/A N/A DownloadN/A



    Display Size21.3"21.5"24.0"
    Part Number90-4213-002
    High brightness LCD NVIS compatible LCD
    90-4213-003
    High brightness LCD
    90-4213-004
    High brightness LCD
    90-4213-004
    High brightness LCD NVIS compatible LCD
    90-4215-006
    High brightness LCD
    90-4240-002
    High brightness LCD NVIS compatible LCD
    90-4240-003
    High brightness LCD NVIS compatible LCD
    StatusIn ProductionIn ProductionIn ProductionIn ProductionIn ProductionIn ProductionIn Production
    Resolution1600 x 12001600 x 12001600 x 12001920 x 10801920 x 10801920 x 10801920 x 1080
    Aspect Ratio4:34:34:316:916:916:916:9
    Brightness
    @ Rail Temp.
    1200 nits
    @ 50 °C
    1950 nits
    @ 50 °C
    1200 nits
    @ 50 °C
    850 nits
    @ 50 °C
    1050 nits
    @ 50 °C
    750 nits
    @ 45 °C
    900 nits
    @ 50 °C
    Contrast Ratio 1300:1 1200:11300:13450:17450:14200:13350:1
    Weber Class 5665662
    Display Mode SR/NVISSRSRSR/NVISSRSR/NVISSR/NVIS
    Colors8-bit8-bit8-bit8-bit8-bit8-bit8-bit
    Response
    Time
    40 ms total40 ms total15/15 ms20/5 ms20/5 ms16/9 ms16/9 ms
    Viewing
    Angle
    ±88° H/±88° V±88° H/±88° V±88° H/±88° V±88° H/±88° V±88° H/±88° V±88° H/±88° V±88° H/±88° V
    NTSC 72%72%N/A75%75%77%72%
    Technology UA-SFTUA-SFTa-Si TFTAMVA3AMVA3a-Si LCMAMVA3
    Operating
    Temperature
    0 to 60 °C0 to 60 °C0 to 50 °C0 to 50 °C0 to 50 °C–20 to 70 °C0 to 50 °C
    Storage
    Temperature
    –20 to 60 °C–20 to 60 °C–20 to 60 °C–20 to 60 °C–20 to 60 °C–30 to 80 °C–20 to 60 °C
    Power 63 W80 W25 W29 W29 W28 W32 W
    Data Sheet N/AN/ADownloadN/AN/ADownloadN/A



    Weber Contrast Lookup Chart [1]

    Contrast RangeShort DescriptionIdeal Applications
    0 to 1.49Not sunlight readableNot suitable for direct sunlight use
    1.50 to 1.99Numeric ONLYUseful for numerics in direct sunlight
    2.00 to 2.99AlphanumericUseful for characters and numerical data
    3.00 to 4.659 Graphic symbols and alphanumerics Useful for characters, numerical data and static images
    4.66 to 10.29Acceptable video performanceUseful for characters, numerical data, static images and low quality video (6 √2 shades of gray counting off as 1)
    10.30 and higher Best case video performanceUseful for characters, numerical data, static images and high quality video (8 or more √2 shades of gray counting off as 1)

    [1] Contrast range and descriptions obtained from page 34 of MIL-L-85762A.



    LED Controllers [2]

    Part
    Number
    Sunlight
    Readable
    NVISConstant
    Current
    PWMTouch
    Controller
    Field
    Prog.
    Serial
    Input
    Keypad
    Controller
    Brightness
    Input
    Temp.
    Control
    Video
    Mode
    Select
    21-101-HYesYesYes-----YesYesYes
    21-127-GYes-Yes-----YesYes
    21-185YesYesYesYesYesYesYesYesYesYesYes
    21-195Yes-YesYes----YesYes
    21-197YesYesYesYesYesYesYesYes-YesYes

    [2] Refer to description of features below



    Sunlight ReadableSupports standard and high bright applications
    NVISSupports NVIS (Night Vision Imaging System) operations
    Constant CurrentConstant current control of backlight
    PWMPWM (Pulse Width Modulation) control of backlight
    Touch ControllerVideo controller includes an embedded touch screen controller circuitry. Touch controller can also be deactivated through serial commands.
    Field Programmable Capable of uploading new firmware to Master Controller, Keyboard Controller and LED Controller
    Serial InputCapable of controlling LED Controller functions via RS-232 commands
    Keypad ControllerKeypad/OSD (On-Screen Display) control

    Specifications subject to change without notice or obligation.

    Can't Find a Perfect Fit?

    Use the form below to request a display tailored to your requirements. A Sales Engineer will contact you shortly to discuss your project.

  • Downloads

    General Digital designs and manufactures scores of standard and custom monitor configurations each year, making the creation of informational and technical documentation for each configuration impractical. We’ve found that by efficiently combining data into a select few documents, we answer most questions that customers typically ask. We strive to keep our documentation as current as possible, given the rapidly changing nature of the industry, which is why we recommend checking back periodically for updates. Please feel welcome to request any information not found here.


    Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

    User Manuals and Calibration & Setup Guides are available for customers only.

    Product Drivers are available for customers only.

    If you have lost the passwords provided with your product, please contact us right away.


    Complete Listing

    Product Line-Up Sheet for Enhanced Displays



    Data Sheets

    24.0″
    90-4240-002: 24.0 Sunlight Readable Display Data Sheet 750 nits / 5850:1



    21.3″
    90-4213-004: 21.3 Sunlight Readable Display Data Sheet 1150 nits / 1250:1



    19.0″
    90-4190-013: 19.0 Sunlight Readable/NVIS Display Data Sheet, Extended Temperature Range 1300 nits / 1150:1



    17.0″/17.3″
    90-4173-001: 17.3 Sunlight Readable/NVIS Display Data Sheet 950 nits / 900:1

    90-4170-005: 17.0 Sunlight Readable/NVIS Display Data Sheet, Extended Temperature Range 1150 nits / 800:1



    15.0″/15.6″
    90-4156-003: 15.6 Sunlight Readable/NVIS Display Data Sheet 1300 nits / 500:1

    90-4156-002: 15.6 Sunlight Readable Display Data Sheet 1350 nits / 650:1

    90-4150-011: 15.0 Sunlight Readable Display Data Sheet, Extended Temperature Range 1320 nits / 1208:1

    90-4150-010: 15.0 Sunlight Readable/NVIS Display Data Sheet 923 nits / 1168:1



    12.1″
    90-4121-005: 12.1 Sunlight Readable/NVIS Display Data Sheet, Extended Temperature Range 1850 nits / 700:1

    90-4121-004: 12.1 Sunlight Readable/NVIS Display Data Sheet, Extended Temperature Range 1650 nits / 700:1



    10.4″
    90-4104-021: 10.4 Sunlight Readable/NVIS Display Data Sheet 3950 nits / 850:1

    90-4104-020: 10.4 Sunlight Readable/NVIS Display Data Sheet, Extended Temperature Range and High Shock Resistance 1950 nits / 1250:1

    90-4104-018: 10.4 Sunlight Readable/NVIS Display Data Sheet, Extended Temerature Range 1000 nits / 1100:1

    90-4104-015: 10.4 Sunlight Readable Display, Extended Color Gamut for Flight Simulators and Cockpit Applications 800 nits / 1206:1

    90-4104-014: 10.4 Sunlight Readable/NVIS Display, for Flight Simulators and Cockpit Applications 1670 nits / 1050:1



    8.4″
    90-4084-003: 8.4 Sunlight Readable/NVIS Display Data Sheet 1850 nits / 700:1



    6.5″
    90-4064-007: 6.5 Sunlight Readable/NVIS Display Data Sheet, with Extended Temperature Range 2400 nits / 650:1

    90-4064-003: 6.5 Sunlight Readable/NVIS Display Data Sheet 3950 nits / 850:1

    91-065-009-00-B: 6.5 Sunlight Readable/NVIS Display Data Sheet, with Optically Bonded Projected Capacitive Touch Screen, EMI Filter 3500 nits

  • Gallery

    The photos below represent a small sampling of General Digital’s standard and custom Display Head Assembly LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

    Display Head Assembly 24.0

    Photo of Display Head Assembly 24.0 - Core 24.0" display with a of 1920 x 1080 resolution is sunlight readable, and features a wide temperature latitude and high resistance to shock and vibration



    Display Head Assembly 15.6

    Photo of Display Head Assembly 15.6 - Core 15.6" display with high brightness capable of use with night vision goggles. This unit features high resistance to shock and vibration



    Display Head Assembly 10.4 for Simulators

    Display Head Assembly 10.4 for Simulators - Sunlight readable and night vision goggle-compatible 10.4" core display with an extreme temperature latitude, superior shock & vibration resistance, and an optional extended color gamut make this unit ideal for avionic, military, medical and other simulators



    Display Head Assembly 10.4

    Photo of Display Head Assembly 10.4 - Sunlight readable and night vision goggle-compatible 10.4" core display built for extreme temperature latitudes and superior resistance to shock and vibration



    Display Head Assembly 6.5 with Optional Bezel

    Photo of Display Head Assembly 6.5 Front View - Core 6.5" display shown with optional bezel, LED controller board and 4-key silicone keypad
    Photo of Display Head Assembly 6.5 Rear View - Rear view of core 6.5" DHA showing LED backlight controller PCB



    Display Head Assembly 6.5

    Photo of Display Head Assembly 6.5 - Sunlight readable, night vision goggle-compatible, 6.5" core LCD with 2400 nits of luminance and a wide temperature range—ready for military or industrial use
  • Videos

    Watch the videos below to learn more about display services General Digital offers for most monitors, whether built by us or another manufacturer.

    Optical Characterization Services (2:16)

    Unlike your phone, a display’s position cannot easily be adjusted to increase readability in direct sunlight. General Digital’s Optical Characterization Services take the guesswork out of quantifying how your display will perform under sunlight conditions. The following video explains the process in detail.
