COMMERCIAL-GRADE DISPLAYS

Key Features

• Vibrant LCD screens from 15.0″ to 20.1″
• Support for high resolutions to 1920 x 1080 pixels
• Integral commercial-grade keyboard and pointing device
• High brightness displays available
• Integral speakers
• Ideal for commercial and light-industrial applications

Durable Monitors for an Active Workforce

AM-TFT LCD Screens

General Digital integrates the latest advances in LCD display technology including 15″–20″ panels. All of our active matrix TFT LCD screens offer up to 16.7 million colors, wide viewing angles and fast response times (suitable for live video.

High Performance Video Controller

All standard SlimLine Commercial rack mount LCD monitors support non-interlaced analog video (separate sync).

Features include Auto Setup, Horizontal/Vertical Positioning, Phase and Fine Tune Adjustments, Color Control, Multiple Languages, and Image Expansion (features vary by model).

Low Profile Construction

The 1U and 2U high (1.75″ and 3.50″) rack mount enclosures are constructed from a combination of steel and aluminum (the 17.3″ model is all aluminum), providing a cost-effective, lightweight housing that can be used in most commercial and light-industrial applications.

Use of continuous-friction hinges permits the display to be user adjusted over a usable range of more than 90°. A pair of adjustable chassis slides facilitate rack mounting and ease of operation.

Interface connectors for the keyboard, pointing device and input power are located on the rear of the device.

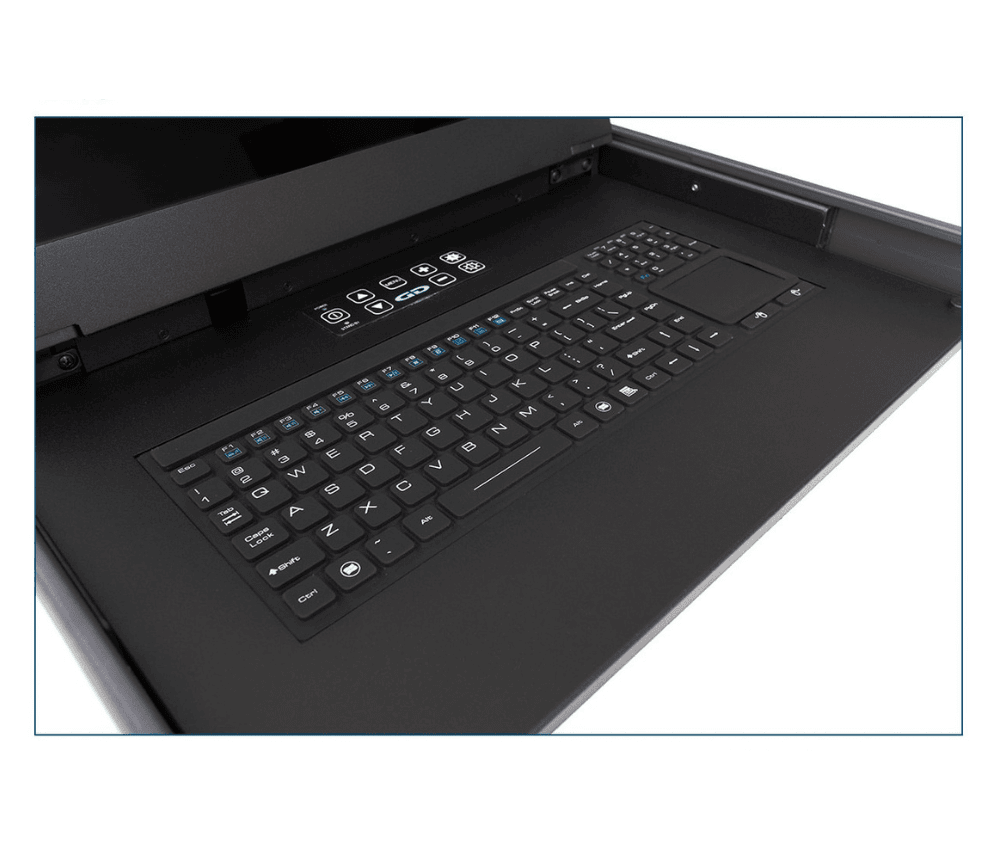

Integral Keyboard and Pointing Device

General Digital offers several commercial-grade keyboards and two types of pointing devices (touch pad and trackball) for integration into SlimLine Commercial models.

A multitude of keyboard protocols are available:

• PC (AT, XT, PS/2, USB)
• Sun^® (Type 5 [8-pin mini-DIN], Type 6 [USB])

Options & Accessories

A limited number of options and accessories are offered in support of the SlimLine Commercial including: cable management systems, freestanding and rack mounted power supplies, keyboards/pointing devices, rack slides, video/serial/power cables and more. Please speak with a Sales Engineer or visit our Options and Accessories page for further details.

Below you will find a breakdown of the SlimLine Commercial model number, which references the key elements of your monitor.

The Family category defines the base configuration, where…
SLC = SlimLine Commercial

Use the form below to request a display tailored to your requirements. A Sales Engineer will contact you shortly to discuss your project.

General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.

Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

User’s Manuals and Calibration & Setup Guides are available for customers only.

Product Drivers are available for customers only.

If you have lost the passwords provided with your product, please contact us right away.

Data Sheet

SlimLine Commercial 15.0″–20.1″ Displays Data Sheet

Flyer

SlimLine Commercial 17.3″ Display Flyer

Specifications subject to change without notice or obligation.

The photos below represent a small sampling of General Digital’s SlimLine Commercial LCD/keyboard products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

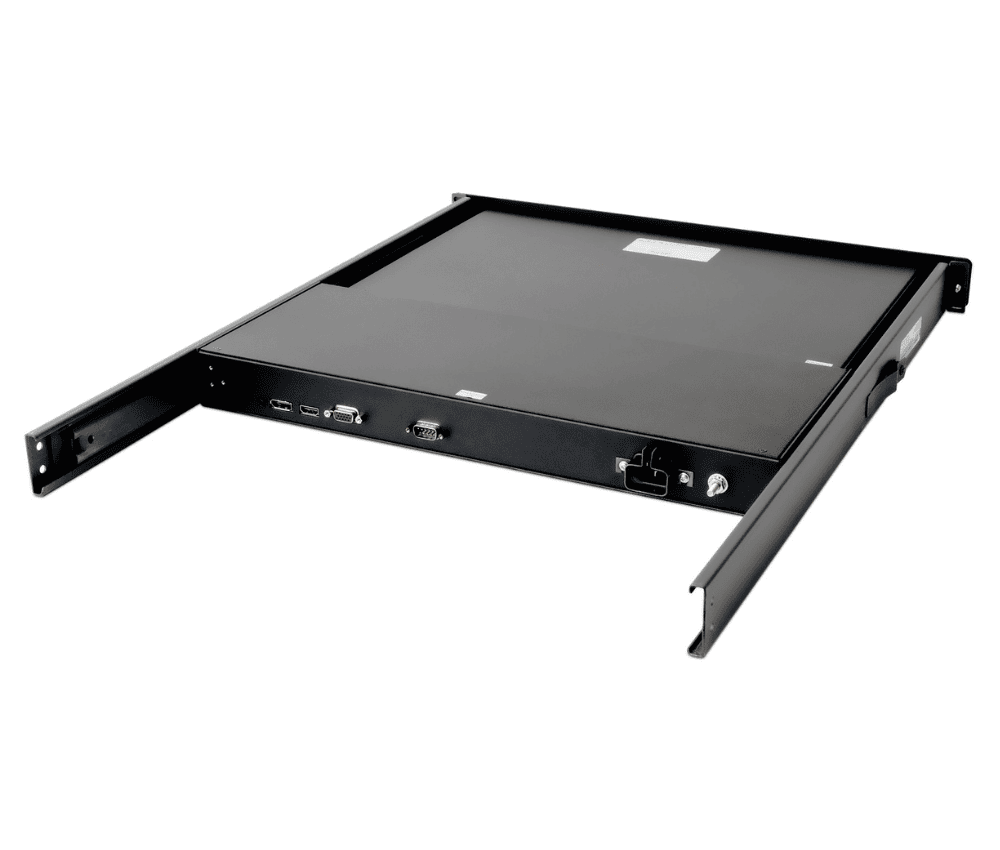

SlimLine Commercial 17.3

SlimLine Commercial 150

Watch the videos below to learn more about display services General Digital offers for most monitors, whether built by us or another manufacturer.

Optical Characterization Services (2:16)

Unlike your phone, a display’s position cannot easily be adjusted to increase readability in direct sunlight. General Digital’s Optical Characterization Services take the guesswork out of quantifying how your display will perform under sunlight conditions. The following video explains the process in detail.

Key Features

• Vibrant LCD screens in 15.0″ and 19.0″ sizes
• Support for high resolutions up to 1280 x 1024 pixels
• Display head is factory configured to flip up or flip down
• Economical plastic enclosure and metal rack mount mounting kit
• Optional support for DVI-A, DVI-D and DVI-I analog, digital and integrated video
• Ideal for commercial and light industrial 19″ rack applications

Durable Monitors for an Active Workforce

AM-TFT LCD Screens

General Digital integrates the latest advances in LCD display technology including 15″ and 19″ (diagonal viewing area) panels. The active matrix TFT LCD screens offer up to 16.7 million colors, wide viewing angles and fast response times (suitable for live video).

---

High Performance Video Controller

All standard Stowaway rack mount LCD monitors support non-interlaced analog video (Separate sync).

Features include Auto Setup, Horizontal/Vertical Positioning, Phase and Fine Tune Adjustments, Color Control, Multiple Languages, and Image Expansion (not all models).

---

Metal/Plastic Construction

The unique design of the Stowaway flip-up/flip-down rack drawer LCD monitor results in an enclosure that occupies only two vertical rack units (3.50″) when stowed.

When deployed and set in operating position, the monitor extends only 4.375″ to 6.375″ from the rack mount chassis. This feature increases operator workspace, especially important in space-constrained environments. The slide can be factory configured for the desired extension distance.

All of the interfaces (video, power) utilize locking connectors that are located on the bottom of the enclosure. A strain relief ensures that cables do not bind as the monitor is stowed or deployed.

The Stowaway’s display and electronics are housed in a durable, black plastic enclosure ideal for commercial and light industrial applications. You benefit from a reduced cost of materials and lead time.

The mounting bracket and bezel are constructed from lightweight aluminum, providing a durable assembly. The standard bezel is finished with a resilient black powder coat, although other colors may be available on a custom basis.

---

Hinged Slides

Custom designed slides allow the Stowaway to conveniently slide in and out of a 19″ RETMA rack while occupying only 2U of rack space. The slides also allow the display head to pivot up 90 degrees for optimal operation.

The Stowaway requires no assembly or disassembly to operate – simply slide the drawer out of the rack, pivot 90° on the robust hinges and commence operation.

Keyboards and Ergonomics

The low profile enclosure occupies minimal vertical rack space, and pivots 90° for operation (factory configured to flip up or flip down). This allows the device to be easily located at eye level within your 19″ RETMA rack to optimize ergonomics.

General Digital also supports a diverse product offering of commercial-, industrial- and military-grade rack mount drawer keyboard/pointing devices (KPDs) to complement the Stowaway. These KPDs can also be located within the rack to optimize ergonomics. Additionally, the KPD can be stowed out of the operator’s way while the monitor is still deployed.

Options & Accessories

The Stowaway has been optimized for mass production and cost efficiency. As a consequence, the design does not offer the same level of flexibility as its sister products, the Rack Mount Hinge and SlimLine Micro. However, General Digital can still offer some limited customization to the design. Please speak with a Sales Engineer for additional information.

In order to reduce both cost and lead time, General Digital modifies high volume LCD monitors intended for the desktop market and integrates the assembly into our final product configuration. Unlike the Rack Mount Hinge and SlimLine Micro (whose components have multiple sources of supply), the Stowaway is affected by the life cycle of a single commodity product, which is typically 18–30 months. Although it is possible that the commodity monitor will be replaced with a “like or equivalent” model, it is completely subject to market availability and popularity.

Standard Luminance Displays

[1] Native Resolution is the fixed number of horizontal and vertical pixels arrayed in the viewable area of an LCD monitor. Other resolutions can be displayed.
[2] Brightness and Contrast values for standard brightness displays are provided by the manufacturer of the LCD component; these values are nominal and may vary.
[3] The hours for Backlight MTBF refer to the half-life of the backlight bulbs; that is, the point at which the bulbs reach half of their original brightness. It does not indicate the life expectancy of the bulbs.

Specifications subject to change without notice or obligation.

General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.

Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

User’s Manuals and Calibration & Setup Guides are available for customers only.

Product Drivers are available for customers only.

If you have lost the passwords provided with your product, please contact us right away.

Data Sheets

Stowaway 15.0″–19.0″ Displays Data Sheet

Control Drawings

Stowaway 190 Control Drawing

Stowaway 150 Control Drawing

Specifications subject to change without notice or obligation.

The photos below represent a small sampling of General Digital’s Stowaway LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

Stowaway 190

Stowaway 151

Watch the videos below to learn more about display services General Digital offers for most monitors, whether built by us or another manufacturer.

Optical Characterization Services (2:16)

Unlike your phone, a display’s position cannot easily be adjusted to increase readability in direct sunlight. General Digital’s Optical Characterization Services take the guesswork out of quantifying how your display will perform under sunlight conditions. The following video explains the process in detail.

Key Features

• Vibrant LCD screens from 15.0″ to 19.0″
• Support for resolutions up to 1280 x 1024 pixels
• Economical plastic enclosure and metal rack mount mounting kit
• Ideal for commercial and light industrial applications
• Supports analog video with Separate sync

Durable Monitors for an Active Workforce

AM-TFT LCD Screens

General Digital integrates the latest advances in LCD display technology including 15″ and 19″ (diagonal viewing area) panels. The active matrix TFT LCD screens offer up to 16.7 million colors, wide viewing angles and fast response times (suitable for live video).

---

High Performance Video Controller

All standard RackMate rack mount LCD monitors support non-interlaced analog video (Separate sync).

Features include Auto Setup, Horizontal/Vertical Positioning, Phase and Fine Tune Adjustments, Color Control, Multiple Languages, and Image Expansion (not all models).

---

Metal/Plastic Construction

The RackMate’s display and electronics are housed in a durable, plastic enclosure that is ideal for commercial and light industrial applications.

The plastic construction is intended for high volume production and minimizes both cost and lead time. A metal mounting frame and rack mount (flanged) bezel facilitate integration into 19″ racks. The standard bezel is finished with a black powder coat, although other colors are optionally available.

Options & Accessories

The RackMate has been optimized for mass production and cost efficiency. As a consequence, the design does not offer the same level of flexibility as its sister product, the Saber RackMount. However, General Digital can still offer some limited customization to the design. Please speak with a Sales Engineer for additional information.

In order to reduce both cost and lead time, General Digital modifies high volume LCD monitors intended for the desktop market and integrates the assembly into our final product configuration. Unlike the Saber RackMount (whose components have multiple sources of supply), the RackMate is affected by the life cycle of a single commodity product, which is typically 18–30 months. Although it is possible that the commodity monitor will be replaced with a “like or equivalent” model, it is completely subject to market availability and popularity.

Standard Luminance Displays

[1] Native Resolution is the fixed number of horizontal and vertical pixels arrayed in the viewable area of an LCD monitor. Other resolutions can be displayed.
[2] Brightness and Contrast values for standard brightness displays are provided by the manufacturer of the LCD component; these values are nominal and may vary.
[3] The hours for Backlight MTBF refer to the half-life of the backlight bulbs; that is, the point at which the bulbs reach half of their original brightness. It does not indicate the life expectancy of the bulbs.

Specifications subject to change without notice or obligation.

General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.

Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

User’s Manuals and Calibration & Setup Guides are available for customers only.

Product Drivers are available for customers only.

If you have lost the passwords provided with your product, please contact us right away.

Data Sheet

RackMate 15.0″–19.0″ Displays Data Sheet

Control Drawings

RackMate 190 Control Drawing

RackMate 150 Control Drawing

Specifications subject to change without notice or obligation.

The photos below represent a small sampling of General Digital’s RackMate LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

RackMate 190

RackMate 151

Watch the videos below to learn more about display services General Digital offers for most monitors, whether built by us or another manufacturer.

Optical Characterization Services (2:16)

Unlike your phone, a display’s position cannot easily be adjusted to increase readability in direct sunlight. General Digital’s Optical Characterization Services take the guesswork out of quantifying how your display will perform under sunlight conditions. The following video explains the process in detail.

Key Features

• Bright, vibrant LCD screens from 15.0″ to 19.0″
• Support for resolutions up to 1280 x 1024 pixels
• Economical plastic enclosure and metal rack mounting kit
• Ideal for commercial and light industrial applications
• Supports analog video with separate sync

Durable Monitors for an Active Workforce

AM-TFT LCD Screens

General Digital integrates the latest advances in LCD display technology including 15″ and 19″ (diagonal viewing area) panels. The active matrix TFT LCD screens offer up to 16.7 million colors, wide viewing angles and fast response times (suitable for live video).

---

High Performance Video Controller

All standard PanelPal rack mount LCD monitors support non-interlaced analog video (Separate sync).

Features include Auto Setup, Horizontal/Vertical Positioning, Phase and Fine Tune Adjustments, Color Control, Multiple Languages, and Image Expansion (not all models).

---

Metal/Plastic Construction

The PanelPal’s display and electronics are housed in a durable, plastic enclosure that is ideal for commercial and light industrial applications.

The plastic construction is intended for high volume production and minimizes both cost and lead time. A metal mounting frame and panel mount (flanged) bezel facilitate integration into consoles or kiosks. The standard bezel is finished with a black powder coat, although other colors are optionally available.

Options & Accessories

The PanelPal has been optimized for mass production and cost efficiency. As a consequence, the design does not offer the same level of flexibility as its sister product, the Saber PanelMount. However, General Digital can still offer some limited customization to the design. Please speak with a Sales Engineer for additional information.

In order to reduce both cost and lead time, General Digital modifies high volume LCD monitors intended for the desktop market and integrates the assembly into our final product configuration. Unlike the Saber PanelMount (whose components have multiple sources of supply), the PanelPal is affected by the life cycle of a single commodity product, which is typically 18–30 months. Although it is possible that the commodity monitor will be replaced with a “like or equivalent” model, it is completely subject to market availability and popularity.

Standard Luminance Displays

[1] Native Resolution is the fixed number of horizontal and vertical pixels arrayed in the viewable area of an LCD monitor. Other resolutions can be displayed.
[2] Brightness and Contrast values for standard brightness displays are provided by the manufacturer of the LCD component; these values are nominal and may vary.
[3] The hours for Backlight MTBF refer to the half-life of the backlight bulbs; that is, the point at which the bulbs reach half of their original brightness. It does not indicate the life expectancy of the bulbs.

Specifications subject to change without notice or obligation.

General Digital designs and manufactures scores of different monitor configurations each year, making the creation of technical documentation for each configuration impractical. We efficiently combine data into a select few documents, which answer most questions that customers typically ask. Please feel welcome to request any information not found here.

Utilities are available to all visitors, and can be used for a variety of LCD monitor applications.

User’s Manuals and Calibration & Setup Guides are available for customers only.

Product Drivers are available for customers only.

If you have lost the passwords provided with your product, please contact us right away.

Data Sheet

PanelPal 15.0″–19.0″ Displays Data Sheet

Control Drawings

PanelPal 190 Control Drawing

PanelPal 150 Control Drawing

Specifications subject to change without notice or obligation.

The photos below represent a small sampling of General Digital’s PanelPal LCD products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

PanelPal 190

PanelPal 151

Watch the videos below to learn more about display services General Digital offers for most monitors, whether built by us or another manufacturer.

Optical Characterization Services (2:16)

Unlike your phone, a display’s position cannot easily be adjusted to increase readability in direct sunlight. General Digital’s Optical Characterization Services take the guesswork out of quantifying how your display will perform under sunlight conditions. The following video explains the process in detail.
