Alta™
- 10.4″ LED-backlit LCD, 1024 x 768 (XGA) resolution
- Sunlight readable brightness of 1000 nits
- iMX6 dual core processor with 4 GB storage + 4 GB removable storage (encrypted USB flash drive)
- Dual rotary encoders (pointing device)
- CAN BUS interface

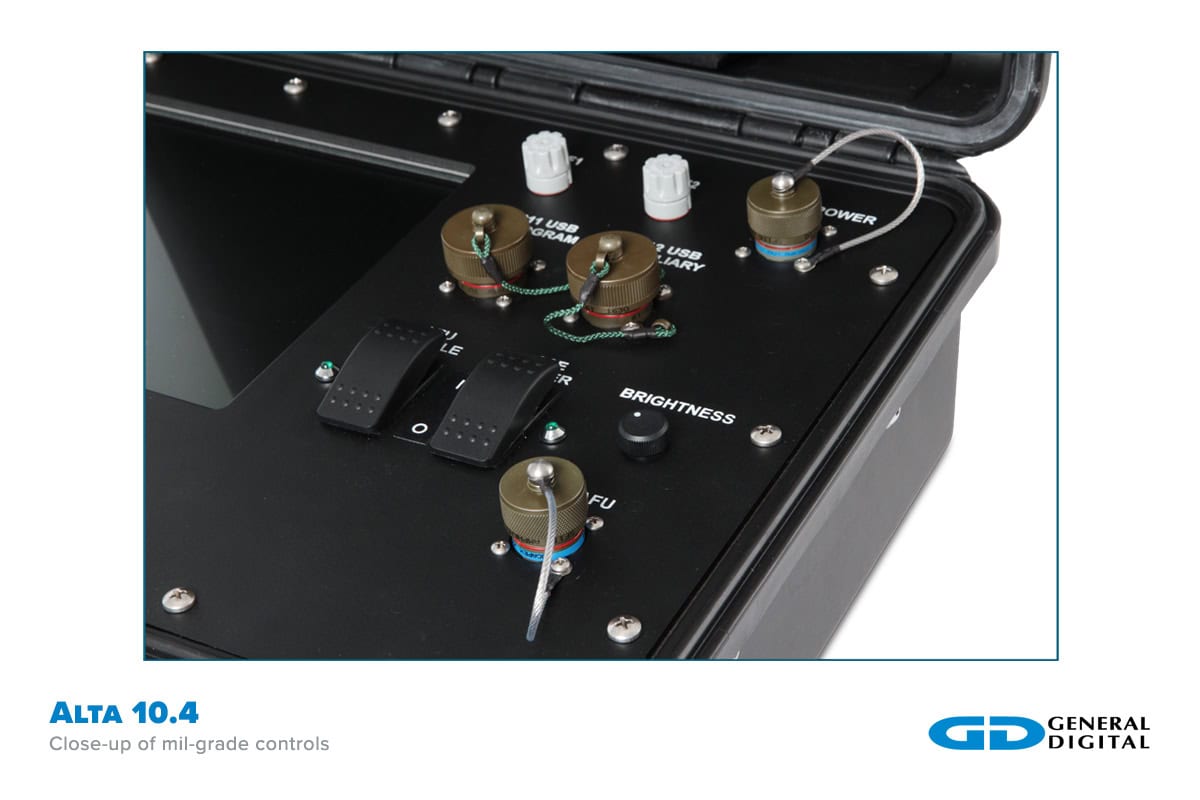

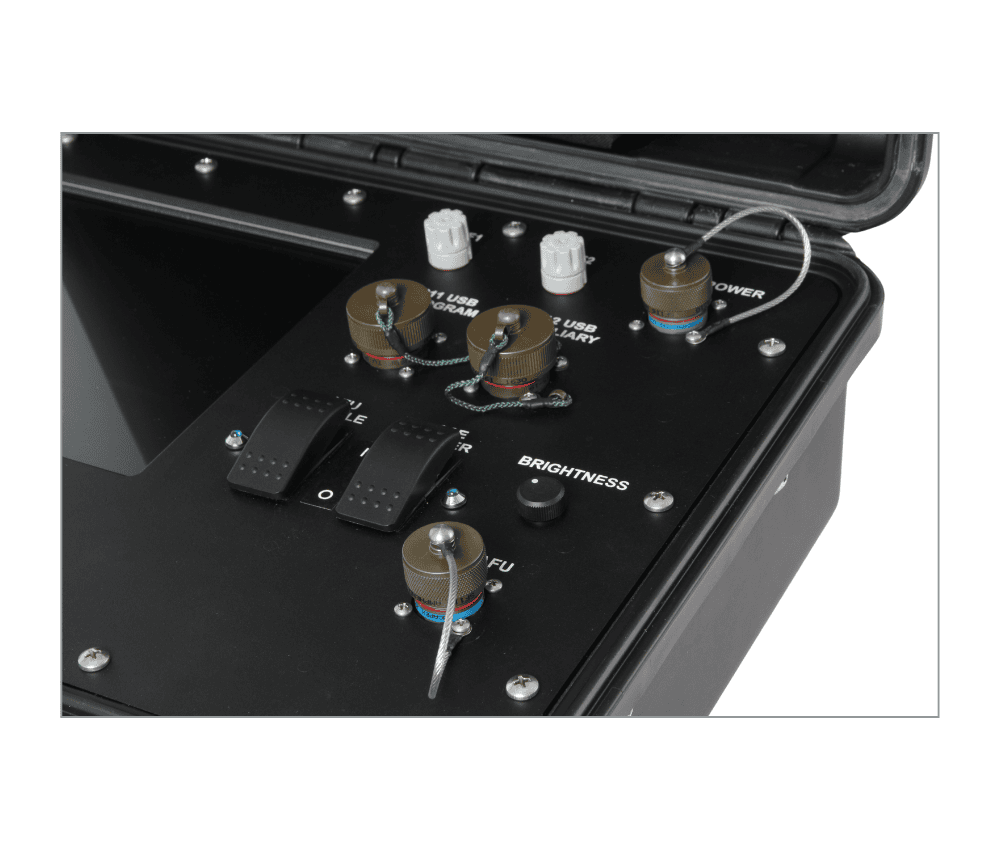

- D38999 military circular I/O connectors
- Integrated rechargeable battery, for remote operation
- Operating Temperature: -20°C–70°C
- Configured as a state machine

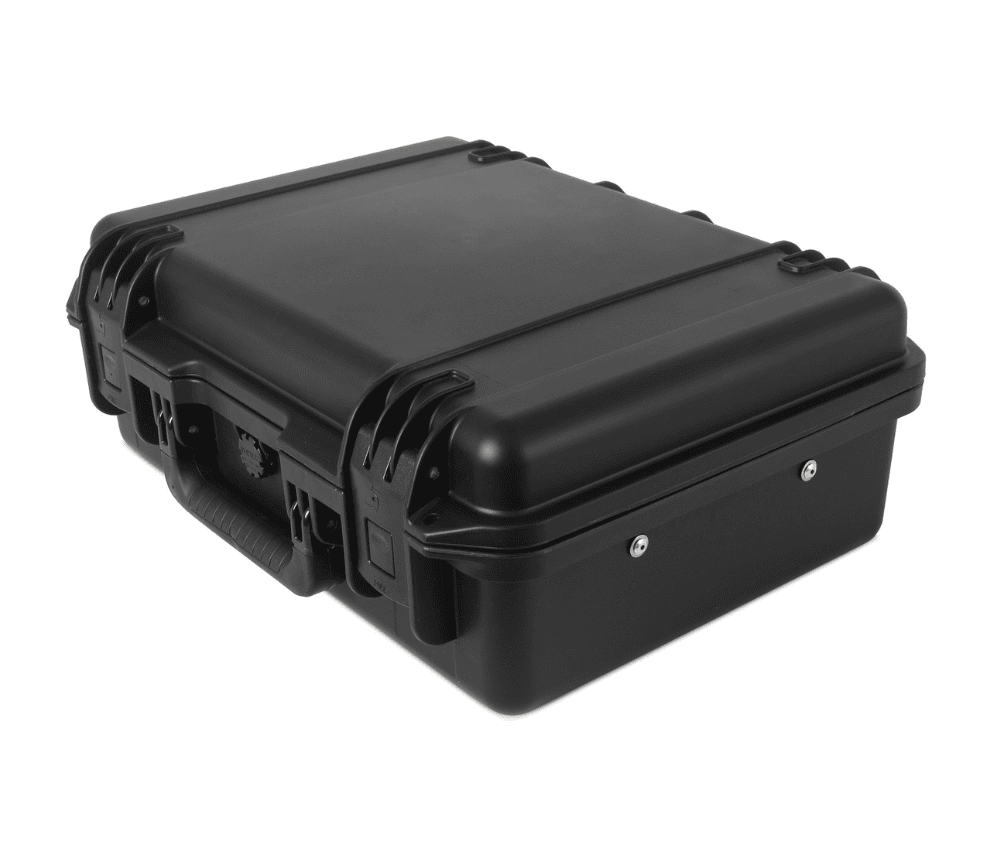

- Pelican™ Case with bezel adaptor and metal construction designed to withstand industrial/military requirements
-
Overview

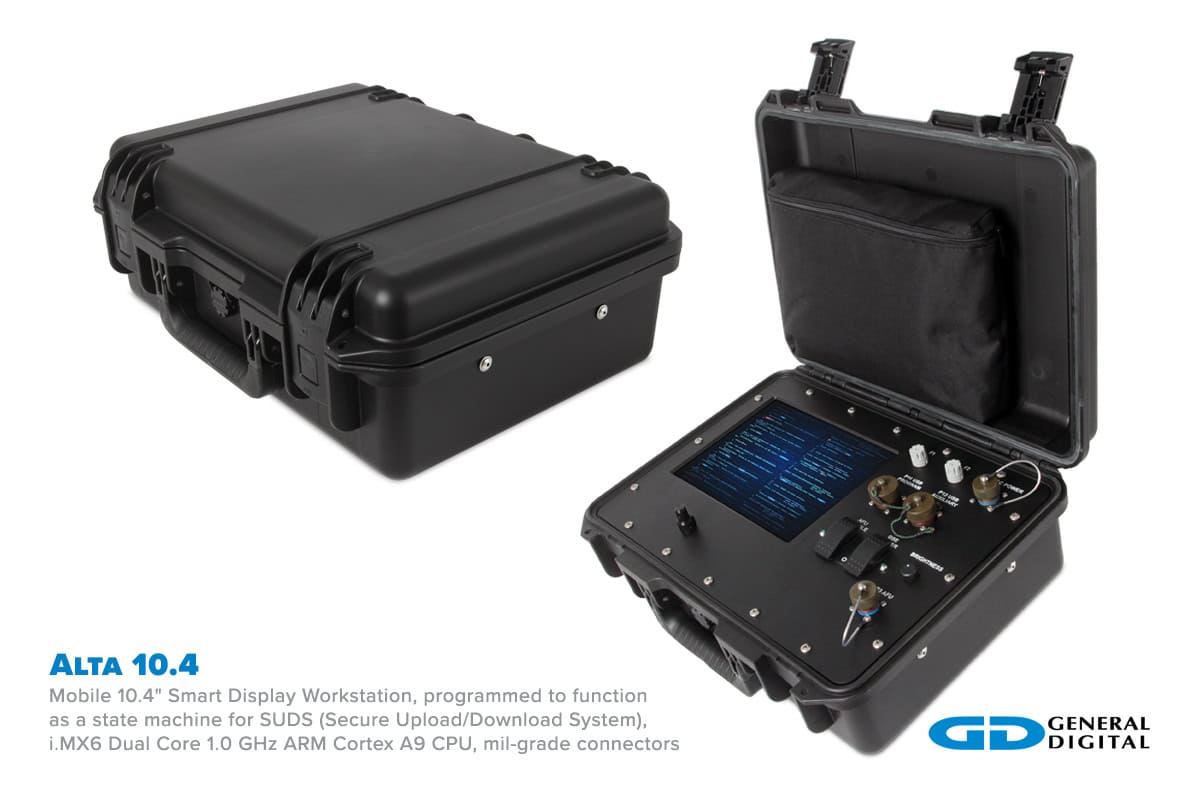

Born from a custom requirement for our Army Aviation partners, General Digital’s newest product family, the Alta Series, integrates robust computing power with our traditional rugged displays into an all-in-one portable workstation. One of the first products in this series is the SUDS (Secure Upload/Download System) Mobile 10.4″.Although equipped with embedded intelligence, the Alta SUDS (Secure Upload/Download System) Mobile 10.4″ unit is designed and programmed to function as a state machine, thereby allowing the device to be used only for loading and retrieving data from the target (e.g., the ECU of a commercial aircraft engine). This dedicated functionality has the secondary benefit of discouraging operators from using for personal activities. As with all General Digital products, the Alta series is customizable to your exact requirements, with a variety of options for computing power, display size, and more.
Whether you need a display with or without an internal computer, General Digital has a variety of solutions at your disposal. Our team has been building smart displays and computers since our inception in 1973, providing no shortage of options and ideas to meet your specifications.
-
CPU
Standard embedded computer configuration listed. For additional configurations, contact a Sales Engineer to discuss your project.
- i.MX6 Dual Core 1.0GHz ARM Cortex A9
- 1 GB DDR3
- 4 GB eMMC
- Toradex Appalis
- Toradex Ixora
-
Display
We work with you to configure and build your system to meet your precise needs. Furthermore, we offer a wide range of practical options for you to custom design your unit.
Standard embedded computer configuration listed. For Additional configurations, contact a Sales Engineer to discuss your project.
- Size: 10.4″ diagonal
- Viewing Area (H x V): 8.28″ x 6.21″
- Resolution: 1024 x 768
- Number of Colors: 16.2 million
- Luminance (max.): 1000 nits
- Contrast (max): 1000:1
- Response Time (rise / decay): 14 / 11
- Viewing Angle (H / V): ±88° / ±88°
- Temperature (operating / storage): -20°C–70°C / -20°C–80°C
- Humidity (operating / storage): 20%–85% / 10%–85%
- Shock: 50 G, 11 ms, 1/2 sine wave
- Vibration: 1.5 G (10–300 Hz)
- Glass Overlay: soda-lime float glass, antireflective coating both sides
- Sealed Bezel: NEMA 4
Options & Accessories
A myriad of display enhancements and services are available, such as:
- Antireflective coatings/antiglare etching (PDF)
- Night Vision Goggle-compatible displays
Sunlight readable displays- Optical bonding
- Film laminations
- Touch screens
- EMI/RFI filters
- Display heaters
- Vandal shields
Custom controls- Private labeling
- Extended warranties
- Keyboards: desktop, panel mount, rack mount and specialized
- Power supplies, cables and more
- Programmable backlight/thermal controllers for optimal brightness/temperature conditions
Please consult a Sales Engineer to discuss your specific needs or ideas.
Configuration Control for Extended Life Cycle
We at General Digital are completely responsible for the design and construction of our products, allowing us to maintain nearly total control of their future. To that end, we gladly offer our engineering services to customers who require special customization of our devices to meet their commercial, industrial, marine or military requirements.Our experience supporting Department of Defense programs has taught us the value of designing products with foresight so that they can be manufactured, serviced and upgraded for many years.
Though the market introduces new innovations and product upgrades at an alarming rate, our product management team knows the importance of proactive customer notification. Thus, we can offer product adaptation with similar or equivalent performance before designs become obsolete, thereby extending the product life cycle.
Please consult a Sales Engineer for additional details.
-
Design Your System
Customize Your Mission-Ready Display System
Every mission is unique—your display should be too. From screen size and touch interface to environmental sealing and mounting options, our engineers will work with you to design a system built for your environment, application, and performance requirements.
Use the form below to request a display tailored to your requirements. A Sales Engineer will contact you shortly to discuss your project.
- Downloads
-
Gallery
The photos below represent a small sampling of General Digital’s Alta display/computer products. They serve to illustrate the many display sizes and mechanical configurations we offer, as well as standard and custom design features, capabilities and options. Click the thumbnails to view full-size photos.

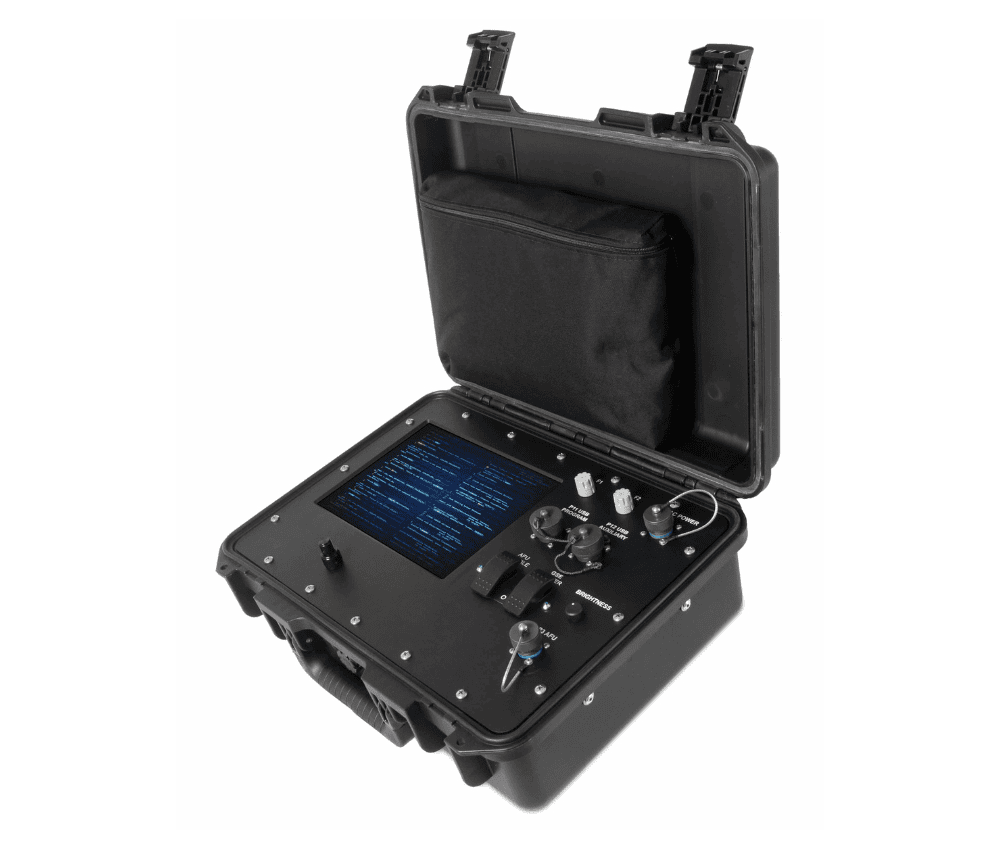

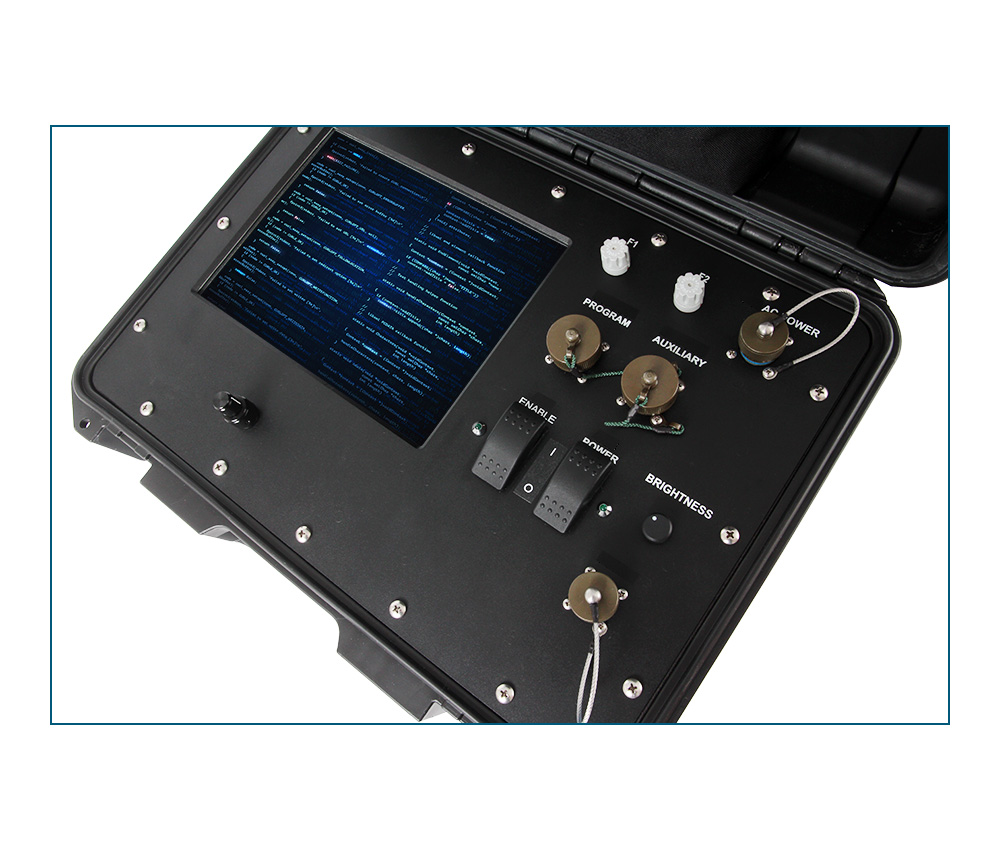

Alta SUDS Mobile 10.4
