Low Profile Enclosure

The TwoView Micro’s rugged aluminum enclosure is designed to withstand the rigors of commercial, industrial and military environments alike. It has an Iridite^® coating (conductive anodized), which provides protection from corrosion and improves shielding properties where metal parts make contact with one another. All external surfaces are finished with a durable black powder coat.

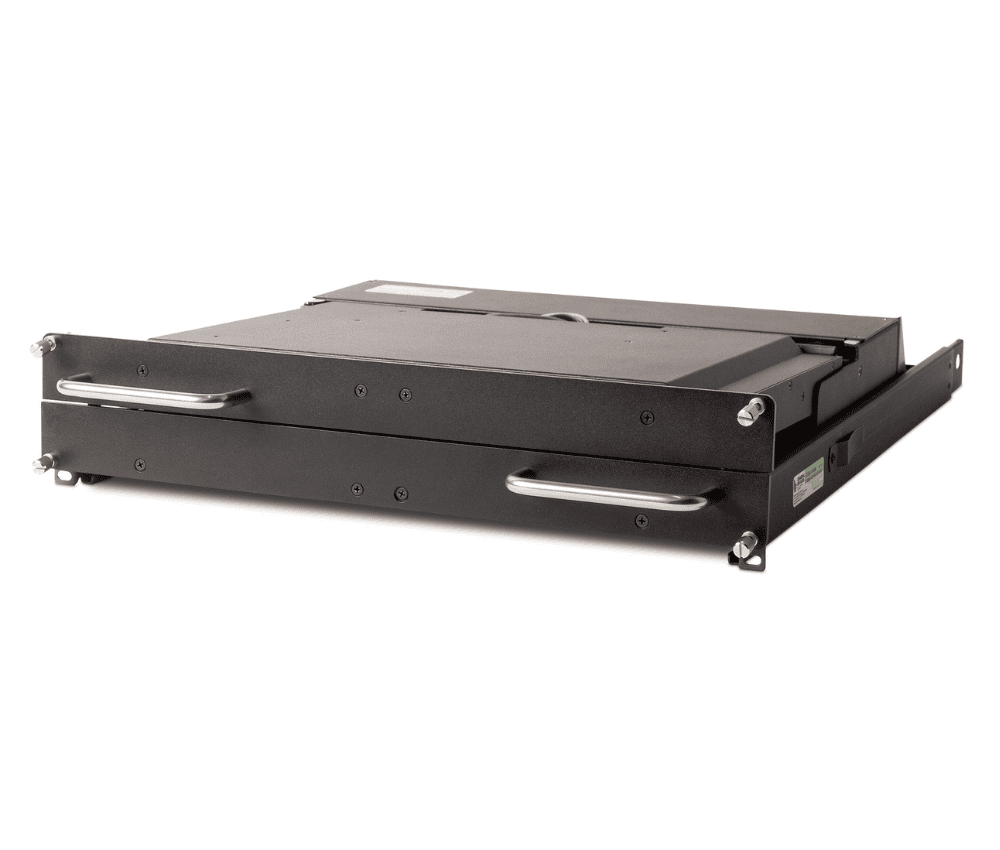

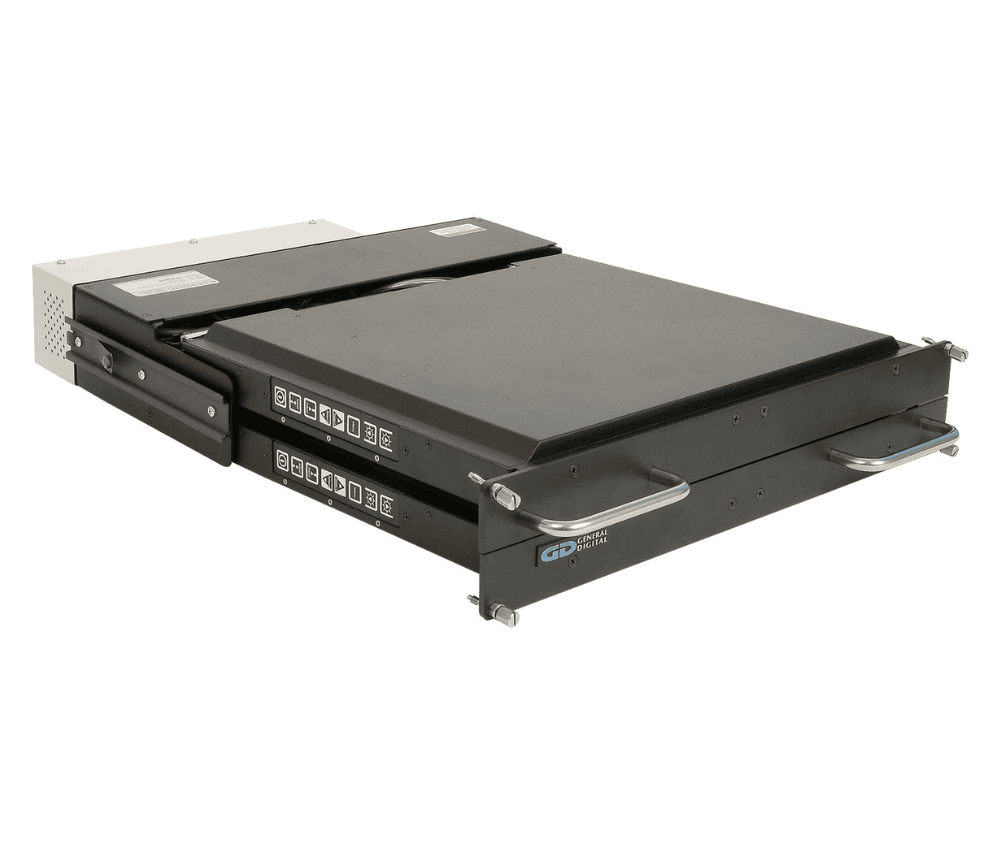

The 2U high (3.50″/88.9 mm) rack mount drawer enclosure provides a cost-effective, lightweight housing that will last for years—decades even.

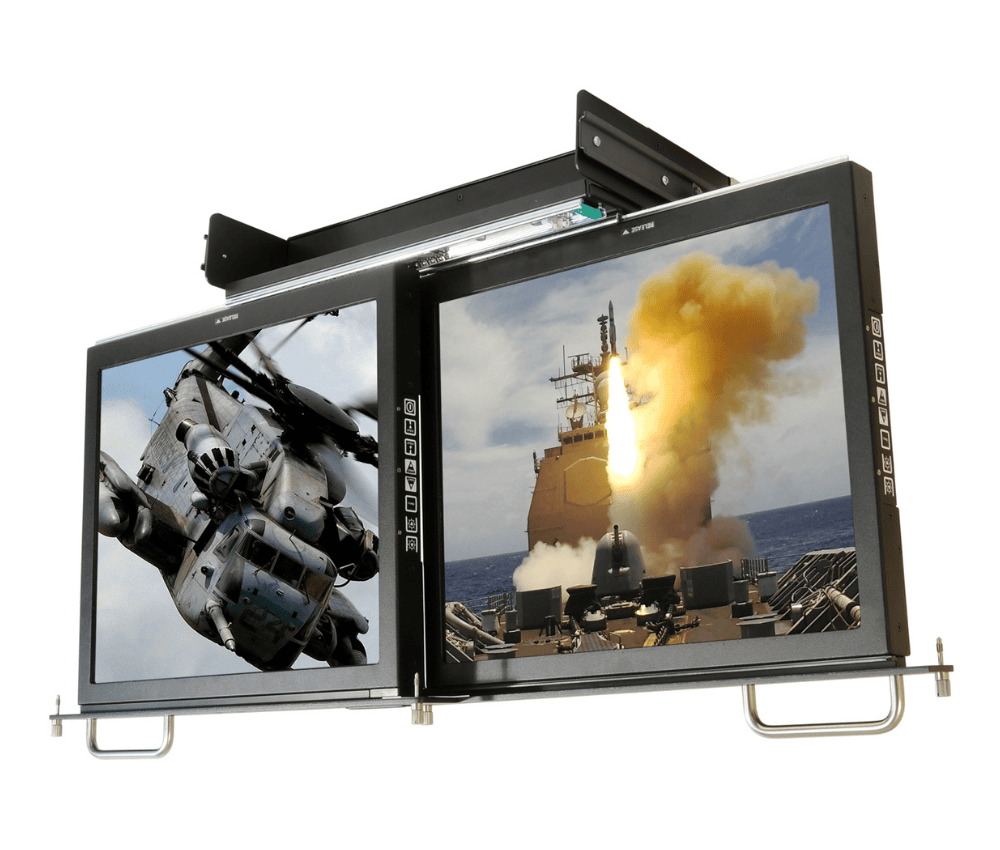

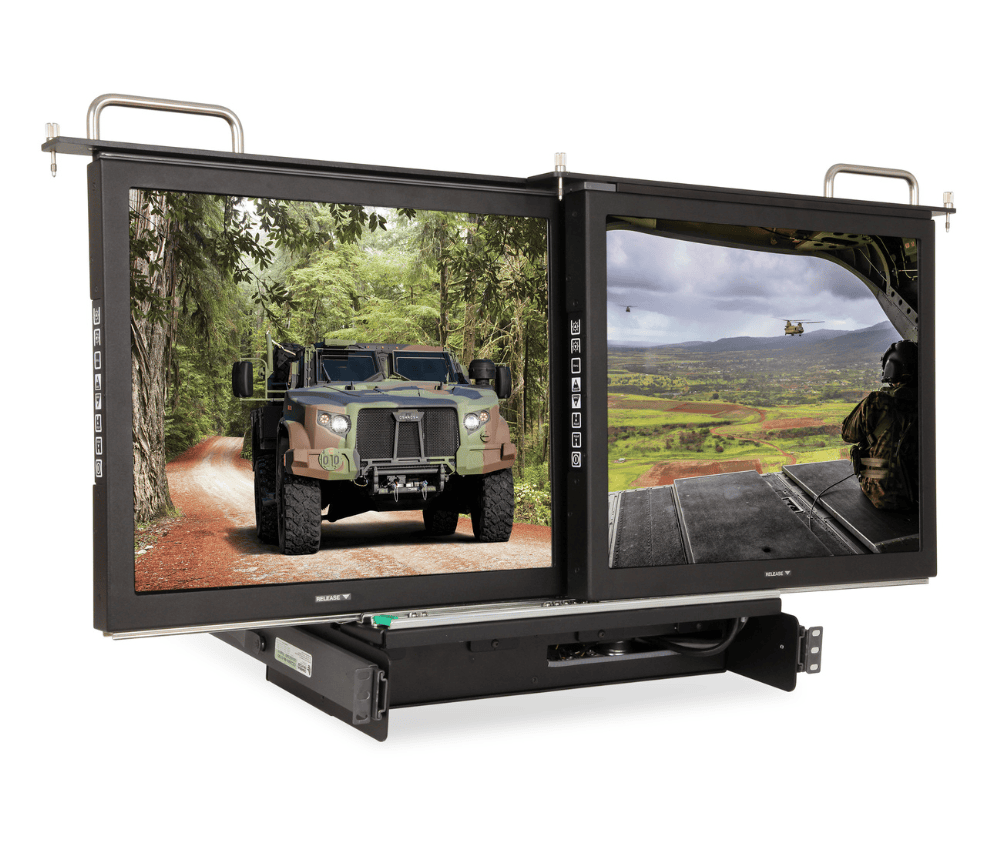

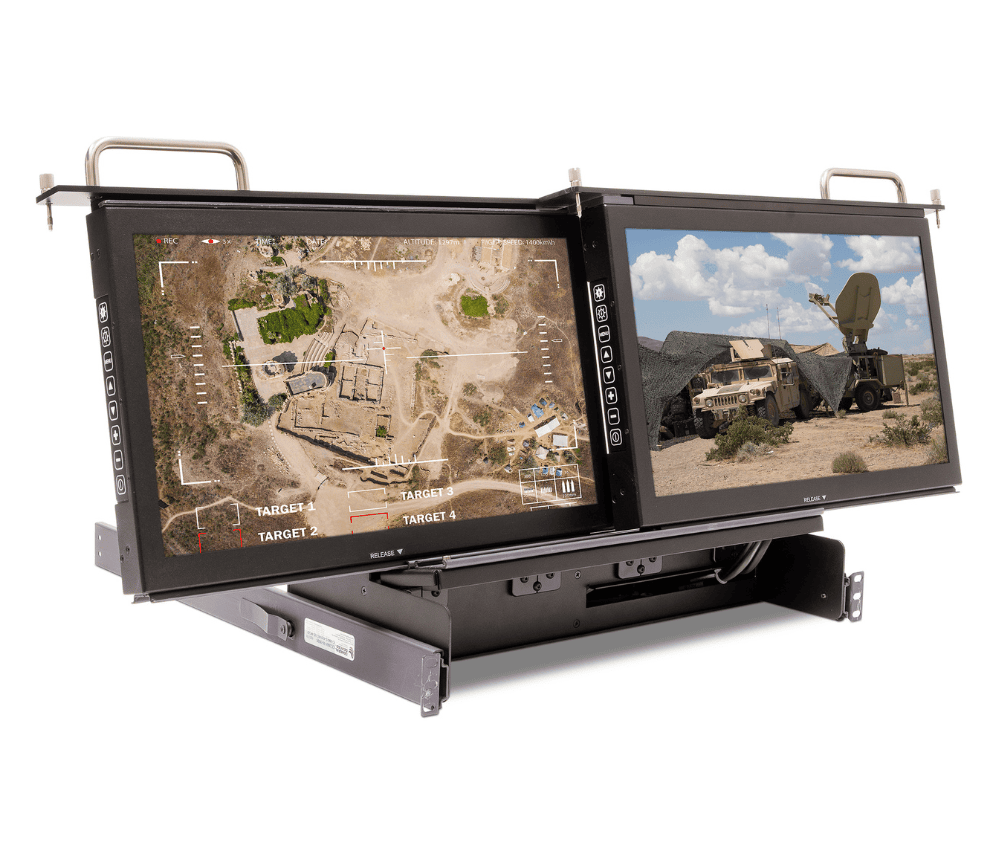

In addition to rack mounting, the TwoView Micro can be mounted to a ceiling or wall (it can be factory-configured to flip up or flip down). Use of continuous-friction hinges permit the display to be user adjusted over a usable range of more than 90°. Display retention latches are used to secure the displays while they are stowed to minimize vertical “chatter” when subjected to shock and vibration.

The TwoView Micro’s enclosure is built to survive demanding environments such as factory floor, food processing, medical and military (MIL-DTL-901, MIL-STD-810) applications. Overall, this assembly technique is a high performance product, at a moderate cost, with flexible design options to suit your requirements.

---

Protective Glass/Overlay and Sealed Gasket

General Digital offers a variety of standard and custom gaskets to augment the performance of the SlimLine Micro:

• Watertight (NEMA 4/6) gaskets are installed between the LCD (or overlay) and the front bezel to prevent liquids from entering the enclosure through the display opening.
• Dust gaskets are often supplied for monitors that do not require a liquid-tight seal between the display and/or overlay and the bezel, or for systems that use a touch technology that are only compatible with certain gasket types.
• EMI/RFI gaskets reduce radiated and conducted emissions of the monitor.
• Desiccating gaskets can be used to prevent moisture/condensation from forming between the LCD and the overlay when exposed to high humidity.



---

Connectors

All of the interfaces (video, serial, power, etc.) utilize shielded locking connectors that are (typically) located on the rear of the enclosure.

---

Power Supply

By default, the TwoView Micro is configured to operate from an integrated (or externally attached) AC switching power supply. Optionally, a separate +12 Vdc or +24 Vdc supply is available.

For applications requiring a more shallow enclosure or a unique power source, we optionally offer a DC input and/or DC-DC converters with a wider input power range and reverse polarity.

---

Video & Controls

High Performance LCD Controller
General Digital offers a wide range of video controllers, allowing you to fine tune the display features and support to your specific video requirements.

We can reprogram the video controller firmware/BIOS to support a variety of video timings and specialty needs, such as STANAG 3350 A, B and C, RS-343 and RS-170. Most of our video controllers will also support interlaced and non-interlaced analog video (separate, composite and Sync-On-Green) as well as live video signals such as NTSC, PAL or SECAM.

Other input signals we support include ARGB (VGA) to DVI, HDMI, HD-SDI, SD-SDI, DisplayPort, 4K UHD and more.

Please consult a Sales Engineer to optimize your video controller selection.

OSD Controls

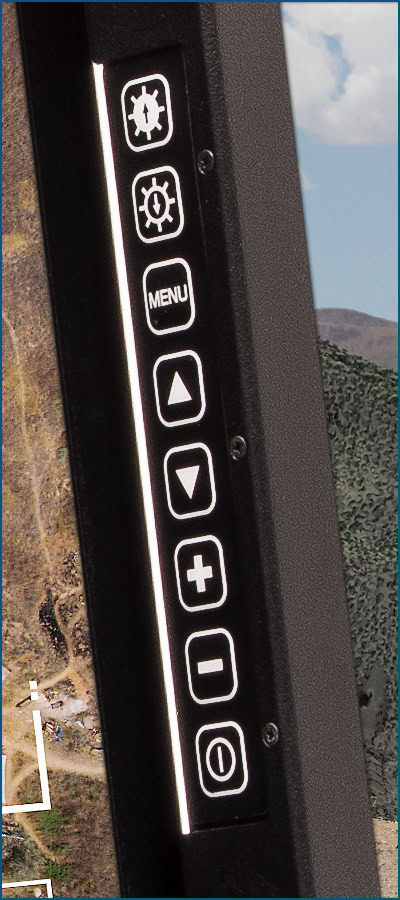

The SlimLine Micro can be configured with a variety of standard or custom On-screen Display (OSD) user controls, including membrane or silicone keypads. Some models can be configured to provide NVIS compatibility, LED backlighting or configured with electronics that allow backlight dimming.

Much like your home TV, the On-Screen Display controls allow the user to adjust important display parameters, such as input signal, brightness, contrast, color temperature, sharpness, phase, scaling (aspect ratio), language and many more.

Optional OSD adjustments include backlight dimming and NVIS backlighting on/off.

---

Display Brightness and Night Vision Enhancements

General Digital can integrate virtually any LCD display size/resolution, from almost any panel manufacturer (OEM), into our enclosures. To assist in selecting the right panel for your application requirements, we have provided a list of commonly used or recommended panels for standard/low luminance, high brightness, sunlight readable and NVIS compatible needs.

New display models are constantly being introduced to the market by the LCD manufacturers, making it extremely difficult for us to maintain a comprehensive list. For this reason, we encourage you to speak with a Sales Engineer to share your price and performance objectives, so we can assist you in making the best display selection.

Standard Displays
General Digital has provided a sample listing of some common transmissive displays that are not sunlight readable. Typically, these displays are suitable for applications that are not going to require specialty functionality, such as sunlight readability or NVIS compatibility, and for customers with cost-sensitive budgets.

LCD backlight produces sufficient luminance for use in office, shaded and low ambient/darkness light levels. However, luminance is insufficient to overcome reflected light for use in direct sunlight.

Transmissive-Enhanced View Displays
This type of technology boosts the efficiency of the backlight’s light utilization and minimizes surface reflection of ambient light. It is a transmissive LCD module that produces high contrast images, even in bright outdoor light and direct sunlight. These displays feature a wider color reproduction range than reflective LCDs. Featuring an LED backlight, these displays consume very little power and produce very little heat, making them ideal for integration into fully sealed enclosures, which are devoid of ventilation holes and cooling fans to dissipate heat. They also provide the additional benefit of a wide operating/storage temperature (as great as -30°–85° C), so that they can endure exposure to greater internal ambient temperatures.

As a design note, we have found that these panels work best when coupled with an overlay that has an antireflective (AR) coating. Overlays that inhibit transmissivity (e.g., resistive touch screen) or have antiglare (AG) coatings will significantly reduce the panel’s performance in high ambient lighting conditions. Since transmissive displays produce greater brightness from their LED backlights than traditional transflective displays, they are regarded as a better outdoor solution, as they can generate high contrast in total darkness, in direct sunlight or on a cloudy/hazy afternoon.

T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.

GenFlective™/Transflective Displays
This type of panel incorporates a highly reflective backlight that reflects the ambient lighting back out of the display to enhance its native brightness produced by its active backlight. Like the Transmissive-Enhanced View Displays, GenFlective panels work best when coupled with an AR-coated overlay. They are least effective with overlays that retard the light transmission (e.g., resistive touch sensors) or have a matte finish.

T-EVT technology uses the high brightness/efficiency LED backlight as a light source while minimizing the surface reflection of ambient light. The result is an LCD that produces high contrast images even in bright outdoor light or direct sunlight.

Sunlight Readable/NVIS Compatible Displays
These displays feature a value-add backlight, typically made from high efficiency LEDs. These displays produce significant active luminance. Often, the peak luminance is limited by internal ambient temperature constraints or must be connected to an intelligent backlight controller and thermal sensor that will automatically reduce brightness/power to avoid over-temperature conditions or thermal shutdown. The high luminance output makes them ideal for use with a wide variety of overlays such as touch sensors, EMI filters, heaters, etc.

Sunlight readable displays use a General Digital-enhanced, highly efficient, super bright/sunlight readable LED backlight to provide maximum functional brightness. The addition of surface treatments such as antireflective coatings and optical bonding reduce surface reflections and increase contrast so displays can be used in direct sunlight.

If our stock offering does not suit your needs in terms of size, fit or function, please contact a Sales Engineer and we will work with you to configure a system to your specifications. Customers can also request that we integrate one of our many LED-based sunlight readable, NVIS or sunlight readable/NVIS enhanced displays into their product. These solutions provide many advantages, such as increased longevity, improved durability, higher brightness, lower power consumption and/or NVIS compatibility.

A myriad of display enhancements and services are available, such as:

• Antireflective coatings/antiglare etching (PDF)
• Night Vision Goggle-compatible displays
• Sunlight readable displays
• Optical bonding
• Film laminations
• Touch screens
• EMI/RFI filters
• Display heaters
• Vandal shields
• Custom controls
• KVM switches
• Slide extension brackets
• Cable carriers
• Rack adaptors
• Private labeling
• Extended warranties
• Keyboards: desktop, panel mount, rack mount and specialized
• Power supplies, cables and more
• Programmable backlight/thermal controllers for optimal brightness/temperature conditions

Please consult a Sales Engineer to discuss your specific needs or ideas.

We at General Digital are completely responsible for the design and construction of our products, allowing us to maintain nearly total control of their future. To that end, we gladly offer our engineering services to customers who require special customization of our devices to meet their commercial, industrial, marine or military requirements.

Our experience supporting Department of Defense programs has taught us the value of designing products with foresight so that they can be manufactured, serviced and upgraded for many years.

Though the market introduces new innovations and product upgrades at an alarming rate, our product management team knows the importance of proactive customer notification. Thus, we can offer product adaptation with similar or equivalent performance before designs become obsolete, thereby extending the product life cycle.

Please consult a Sales Engineer for additional details.
